GENERAL
|
| General type |

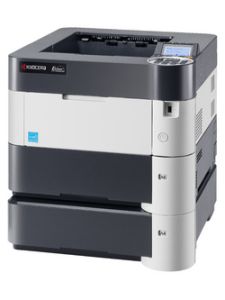

Monochrome printer for A4 formats |
| Technology |
KYOCERA ECOSYS, Laser |
| Engine speed |
Up to 45 pages per minute in A4 |
| Resolution |
1,200 dpi |
| Warm-up time |
Approx. 15 seconds or less from power on |
| Time to first print |
Approx. 9 seconds or less |
| Dimensions (W x D x H) |
380 x 416 x 320 mm |
| Weight |
Main unit incl. toner: Approx. 14.6 kg |
| Power consumption |
Printing: 618 W, Stand-by: 13.3 W, Power-Saving (ECOpower): 1.6 W, Typical Electricity Consumption (TEC): 2.53 kWh/week |
| Power source |
AC 220 ~ 240 V, 50/60 Hz |
| Noise (ISO 7779) |
(Sound pressure level: ISO 7779 / ISO 9296) Printing: 53.6 dB(A) LpA, Stand-by: 27.8 dB(A) LpA |
| Safety standards |
GS, TV, CE This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard. |
| General memory |
Standard 256 MB RAM, max. 1,280 MB RAM |
|
 |
PAPER HANDLING
|
| Input capacity |
100-sheet multi-purpose tray 60220 g/m; A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 216 x 356 mm), 500-sheet universal paper cassette, 60120 g/m; A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 216 x 356 mm) |
| Max. input capacity with options |
2,600 sheets |
| Duplex unit |
Duplex as standard supports A4, A5, B5, Letter, Legal, Custom (140 x 210 mm 216 x 356 mm), 60120 g/m |
| Max. output capacity |
500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-320 |
| General paper handling |
All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions. |
|
|
PRINT
|
| Processor |
PowerPC 465/500 MHz |
| Controller language |
PRESCRIBE IIe |
| Emulations |
PCL6 (PCL5c / PCL-XL), PostScript 3 (KPDL 3), XPS Direct Print**, PDF Direct Print 1.7, IBM Proprinter X24E, Epson LQ-850 with automatic emulation sensing (** requires memory expansion) |
| Fonts |
93 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 Bitmap font, 45 barcodes (e.g. EAN 8, EAN 13, EAN 128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option) |
| Integrated Accounting |
100 department codes |
| Applicable OS |
All current Windows operating systems, Mac OS X Version 10.4 or higher, UNIX, LINUX as well as other operating systems on request |
|
|
INTERFACES
|
| Standard interface |
USB 2.0 (Hi-Speed), 2 USB Host Interfaces, Gigabit Ethernet (10/100/1000BaseT), Slot for optional internal print server or SSD hard disc, Slot for optional SD/SDHC-Card |
|
|
WARRANTY
|
| Warranty |
1-year warranty as standard (depending on the country). KYOCERA guarantees the drums and developers for 3 years or maximum 500,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions. |
|
