With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.
Fan Xpert 2
Optimizes the Speed of All Fans for the Ultimate Cool and Quiet
Hardware-level ASUS Fan Xpert 2 provides the most customizable settings for an even cooler and quieter computing environment. Upgraded with Fan Auto Tuning mode, it enables tailored fan speed settings for each CPU and chassis fan with exclusive automatic fan speed detection, which scans through each fan to run at specific settings based on different criteria, acheiving the best balance of cooling performance and low noise. Fan Xpert 2 also includes an RPM Fixed Mode for users who wish to reduce noise levels to near 0dB with highly specific fan speed control. It reacts to system loads for greater control.
USB Charger+
3X Faster Charging for All Smart Devices
With a dedicated onboard controller, quick-charge all your smart devices such as iProducts. smartphones, tablets and more, all up to 3X faster, even when the PC is powered off, in sleep or hibernation modes.
Complete USB 3.0 Integration
Double USB Access, Double Convenience
ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 6 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. This motherboard affords greater convenience to high speed connectivity.
Native SATA 6Gb/s Support
Native SATA 6Gb/s Support
The AMD A85X FCH natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.

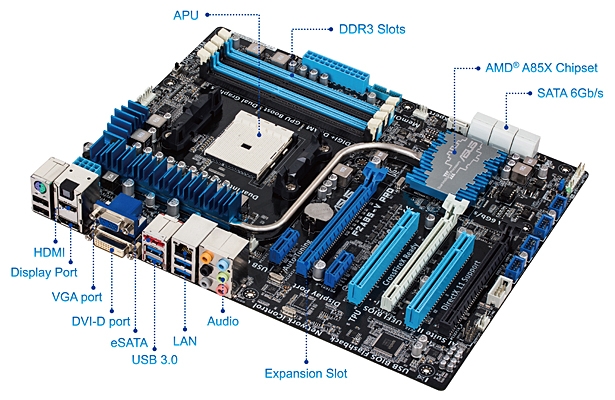

F2A85-V PRO Product Overview
Other ASUS Features
TurboV
Adjust system performance parameters with just a few clicks away.
Auto Tuning
Achieve extreme yet stable overclocking results automatically.
External SATA
The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
MemOK!
Quickly ensures memory boot compatibility.
AI Suite II
One-stop Access to Innovative ASUS Features.
GPU Boost
Go to the Limit with iGPU Level Up!
Q-Design
ASUS Q-Design enhances your DIY experience.
EPU
Energy Efficiency All Around
Specifications
| CPU |
AMD Socket FM2 Athlon/A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology |
| Chipset |
AMD A85X FCH(Hudson D4) |
| Memory |
4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard. |
| Graphic |
Integrated AMD Radeon HD 7000 Series Graphics in A-series APU
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB
AMD Dual Graphics technology support *1
Supports DirectX 11 |
| Multi-GPU Support |
Supports AMD 3-Way CrossFireX Technology
Supports LucidLogix Virtu MVP Technology *2 |
| Expansion Slots |
2 x PCIe 2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1
2 x PCI |
| Storage |
AMD A85X FCH(Hudson D4) chipset :
7 x SATA 6Gb/s port(s), gray
1 x eSATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10, JBOD |
| LAN |
Realtek 8111F, 1 x Gigabit LAN Controller(s) |
| Audio |
Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel |
| USB Ports |
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD A85X FCH(Hudson D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
AMD A85X FCH(Hudson D4) chipset :
10 x USB 2.0 port(s) (2 at back panel, , 8 at mid-board) |
| Overclocking Features |
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall) |
| Special Features |
ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
SMART DIGI+ :
- Smart DIGI+ Key- Quickly delivers optimized VRM frequency, voltage and current for superior APU/DRAM overclocking performance with one click.
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 6 +2 Phase Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- Remote GO!
- USB BIOS Flashback
- MemOK!
- AI Suite II
- Ai Charger+
- USB Charger+
- Anti-Surge

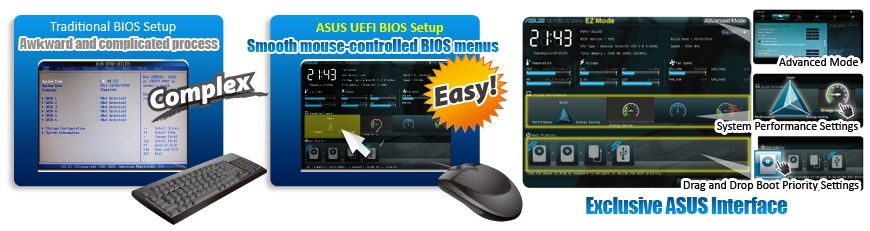

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert 2
ASUS EZ DIY :
- DirectKey
- Precision Tweaker 2
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors |
| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s) |
| Internal I/O Ports |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
7 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 x -pin)
4 x Chassis Fan connector(s) (4 x -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x USB BIOS Flashback button(s) |
| Accessories |
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1) *3 |
| BIOS |
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Support Disc |
Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version) |
| Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note |
*1 Refer to https://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology
*2 LucidLogix Virtu MVP supports Windows 7 operating systems.
*3 Retail version only |
