60586 | Nokia Lumia 820 Handset - Black

123.8 mm

Width

68.5 mm

Thickness¹

9.9 mm

Weight

160 g

Volume

84 cm

¹ Volume thickness

Form factor

Phone form factor

Monoblock

Display and User Interface

Display size

4.3 ''

Touch screen technology

Capacitive Multipoint-Touch

Display resolution - Height

800 pixels

Display resolution - Width

480 pixels

Display features

• Polarization filter
• Light time-out
• Ambient light detector
• Brightness control
• Orientation sensor
• Proximity sensor
• High Brightness mode
• RGB Stripe
• Sunlight readability enhancements
• Aspect ratio 15:9
• Super sensitive touch
• Color boosting

Display colors

16.7 million

Display technology

AMOLED, ClearBlack

Keys and Input Methods

User Input

Touch

Physical Keys

• Camera
• Power
• Volume
• Search
• Back
• Windows Start key

Connectivity

Dual SIM

No

Connectors

• Micro-USB Charging Connector
• Micro-USB Data Connector
• 3.5 mm Universal Audio Connector
• Micro-USB 2.0

Wireless connectivity

• Bluetooth 3.0
• Near Field Communication
• Wi-Fi Channel bonding
• WLAN IEEE 802.11 a/b/g/n
• Qi Wireless charging

Syncronization

• Windows computer companion application
• Mac computer companion application
• Exchange ActiveSync

WLAN features

WLAN security

• WPA2 (AES/TKIP)
• WPA
• WEP
• PEAP-MSCHAPv2
• EAP-SIM
• EAP-AKA

Memory

Internal memory

1000 MB

Expandable memory card type

MicroSD

Data Network

Data bearers²

• HSPA+ (3G)
• EDGE/EGPRS (2G)
• FD-LTE (4G)
• HSUPA (3G)
• GSM (2G)
• HSDPA (3G)
• WCDMA (3G)
• Dual Transfer Mode (2G)

² Requires data service. Data services may not be available in all networks. Data transmission speeds may be as high as LTE 100 Mbps, but may vary based upon network capabilities and other conditions. The establishment and continuation of a data connection depends on network availability, provider support and signal strength.

Power Management³

Battery model

BP-5T

Battery capacity

1650 mAh

Battery voltage

3.7 V

Removable battery

Yes

Standby time (2G)

330 h

Talk time (2G)

14 h

Standby time (3G)

330 h

Talk time (3G)

8 h

Music playback time

55 h

³ Operation times may vary depending on radio access technology used, operator network configuration and usage.

Operating Frequency

Frequency bands

• GSM 850
• GSM 900
• GSM 1800
• GSM 1900
• WCDMA Band V (850)
• WCDMA Band VIII (900)
• WCDMA Band IV (1700)
• WCDMA Band II (1900)
• WCDMA Band I (2100)
• LTE 700
• LTE 800
• LTE 850
• LTE 900
• LTE 1700
• LTE 1800
• LTE 1900
• LTE 2100
• LTE 2600

Data speed - Upload

• LTE Cat 3 - 50 Mbit/s
• HSUPA Cat 6 - 5.76 Mbit/s

Data speed - Download

• HSDPA Cat 24 - 42.2 Mbit/s
• EGPRS MSC 12 - 236.8 kbit/s
• LTE Cat 3 - 100 Mbit/s

Processor

Processor name

Snapdragon S4

Processor type

Dual-core 1.5GHz

Performance

Do more. Wait less

Tap into faster performance. The Snapdragon processor CPU cores enable extra performance when you need it and puts you in charge of running the most demanding applications, including gaming, photography, as well as business and personal productivity.

Power consumption

Less charging. More doing

The Snapdragon processor's unique asynchronous technology enables each core to power up and power down independently, resulting in maximizing core performance level without wasting battery power.

Technology

Beyond mobile. And beyond all expectations

Snapdragon S4 processor is a highly integrated, mobile-optimized system on a chip that delivers dynamic, immersive experiences and powerful, battery-friendly performance that can put new possibilities in your hands.

Personal Information Management (PIM)

Personal information management features

• Recorder
• Calculator
• Clock
• Calendar
• Phonebook
• Notes
• Reminders
• To-do list
• Phonebook with integrated social networks
• OneNote
• Wallet

Other Applications

Software updates

Over the air

Gaming features

• DirectX 11
• Accelerometer
• Gyroscope
• Touch UI
• XBox-Live Hub

Software platform & User Interface

Supported amount of phonebooks

One integrated Phonebook

Platform

Windows Phone 8

Development technology

• Silverlight
• XNA
• Visual Basic
• DirectX
• Java Script
• XAML
• C++

Email and Messaging⁴

Email solution

• Hotmail
• Yahoo! Mail
• IBM Lotus Traveler
• Outlook Mobile
• Windows Live / Hotmail / Outlook.com
• Gmail
• Mail for Exchange
• Office 365
• Nokia Mail

Email protocols

• SMTP
• IMAP4
• POP3

Email features

• Viewing and editing of email attachments
• Email with filtering
• Always up to date
• Multiple simultaneous email accounts
• HTML email
• Text-to-speech message reader
• Email attachments
• Conversational view on email
• Linking multible inboxes to one

Supported instant messaging services

• Twitter
• Facebook chat
• LinkedIn
• Windows Live Messenger

Messaging features

• Integrated text messaging and chat
• Instant messaging
• Concatenated SMS for long messages
• Multiple SMS deletion
• List of recently used numbers
• Speed dialling for SMS sending
• Audio messaging
• Text-to-speech message reader
• Conversational SMS for chat-style SMS
• Text messaging
• Common inbox for SMS and MMS messages
• Number screening for messaging
• Unified MMS/SMS editor
• Automatic resizing of images for MMS
• Distribution lists for messaging
• Multimedia messaging

⁴ Some services may be available only via downloading or dependent on the market. Only devices that offer compatible multimedia message or email features can receive and display multimedia messages. Content appearance may vary. Some images and ring tones can not be forwarded.

Call management

Call management features

• Voice dialling
• Voice commands
• Conference calling
• Video calling
• Call waiting
• Voice mail
• Call diverts
• Video sharing
• Integrated hands-free speaker
• Call forwarding
• HD audio

Supports amount of contacts

Unlimited

Security

Enterprise security features

Remote security policy enforcement

General Security features

• Remote device locking via Internet
• Application sandboxing and integr check
• Secure NFC
• Track and Protect via internet
• Firmware update
• Remote wipe of user data via Internet
• Application integrity check
• Device lock

Device startup security

• Device passcode
• Secure device start-up
• PIN code
• Firmware and OS integrity check

Advance security features

• Lost device tracking
• Anti-phishing protection

Data encryption

User data encryption for device

Browsing and Internet

Supported web technologies and protocols

• XML
• CSS 3
• HTML 5
• HTML 4.1
• CSS

Browser

Internet Explorer 10

GPS and navigation⁵

Navigation features and services

• Nokia Maps
• Nokia Drive

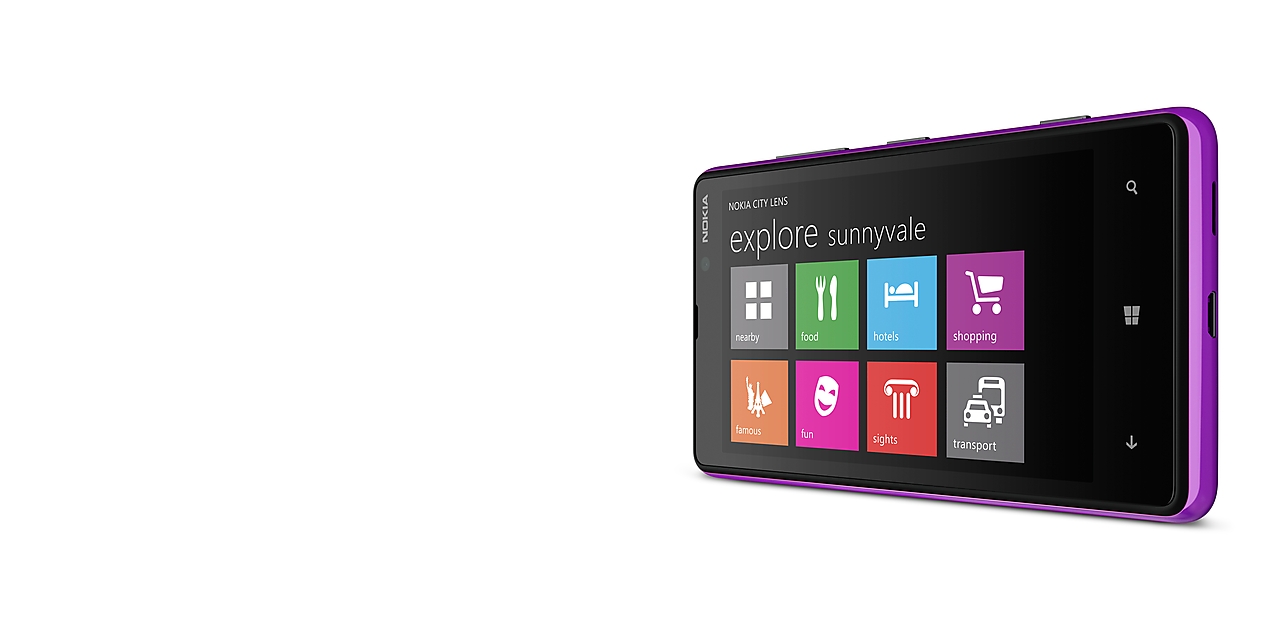

• Nokia City Lens
• Nokia Transport

Positioning features

• Magnetometer
• A-GPS
• WLAN Network Positioning
• Glonass
• Offline maps
• Speed limit warnings
• Online and offline favorites
• Turn-by-turn voice guided navigation

⁵ Downloading of maps over-the-air may involve transferring large amounts of data. Your service provider may charge for the data transmission. The availability of products, services and features may vary by region. Please check with your local Nokia dealer for further details and availability of language options. These specifications are subject to change without notice

Main camera

Camera sensor (main camera resolution)

8.0 megapixels

Flash type

Short pulse high power dual LED

Carl Zeiss Tessar lens

Yes

Camera resolution

3264 x 2448 pixels

Main camera focus type

Auto focus with two-stage capture key

Camera F number/aperture

2.2

Camera digital zoom

4 x

Camera focal length

26.0 mm

Secondary camera

Secondary camera resolution

640 x 480 pixels

Main camera features

Camera features

• Dual-LED flash
• Touch focus
• Landscape orientation
• Geo-tagging
• Auto and manual white balance
• Still image editor
• Lenses applications
• True 16:9 sensor

Camera image formats

JPEG/Exif

Graphics

Graphics format

JPEG

Image capturing

Flash modes

• Off
• Automatic
• On

Colour tone modes

• Sepia
• Greyscale
• Solarize
• Vivid
• False colours
• Normal
• Negative

Capture modes

• Video
• Still

White balance modes

• Cloudy
• Tungsten
• Fluorescent
• Daylight
• Automatic

Photos viewed by

• Camera Roll
• Timeline
• Photo editor
• Favorites
• Album
• Photos from Social networks

Music

Music package

• Nokia Music Store
• Nokia Mix Radio

Noise cancellation

Multimicrophone noise cancellation

Music features

• Music Player
• Media Player
• Audio Streaming
• Dolby Headphone

Other Features (Music and Audio)

• Selection by artist, album and genre
• Cloud music playback
• Podcasts
• Cloud music offline playback
• Playlists
• Album graphics display
• Music recommender

DRM support

PlayReady

Music format

Codecs

• MP3
• AMR-WB
• AMR-NB
• WMA 10 Pro
• WMA 9
• AAC LC
• AAC+/HEAAC
• eAAC+/HEAACv2

Audio playback file formats

• ASF
• WAV
• MP4
• AAC
• AMR
• MP3
• M4A
• WMA
• 3GP
• 3G2

Voice and audio recording

Recording

Voice commands

Audio recording file formats

• WAV
• 3GP
• 3G2

Audio recording codecs

AMR-NB

Speech codecs

• AMR-WB
• GSM FR
• AMR-NB
• GSM HR
• EFR

Audio recording features

Mono with high dynamics

Main video camera

Video playback frame rate

30 fps

Video camera resolution

1080p (Full HD, 1920x1080)

Video recording features

• Video light
• Video zoom

Camera video frame rate

30 fps

Camera video zoom

4 x

Video white balance modes

• Cloudy
• Fluorescent
• Tungsten
• Automatic
• Daylight

Secondary video camera

Secondary video camera resolution

640 x 480 pixels

Main video camera features

Video streaming

YouTube browsing and video streaming

Video features

• Video recorder
• Video call
• Video sharing
• Video player

Other features (video)

Video sharing and playback

• Video sharing to social network
• Share with DLNA compatible TV with an application
• Video sharing to Facebook
• Video sharing with NFC
• Video sharing to Skydrive

Environmental features

Packaging

• Made of renewable materials
• Containing up to 60% recycled materials
• Minimized package
• Packaging is 100 % recyclable
• Virgin wood fibres up to 100% certified

Eco content and services

• Available at Store
• Nokia Maps: pedestrian navigation

Energy efficiency

• Automatic screen brightness adjustment
• Battery Saver feature
• Energy efficient charger

Materials

• Free of BFR, rFR as in Nokia Subst. List
• Free of PVC
• Contains bio plastics
• Contains recycled metals
• Free of nickel on the product surface

Recycling

100% recoverable as materials and energy

User guide

• Small printed guide, full on nokia.com
• In-device user guide

Sales Package

• Nokia Lumia 820
• Nokia AC-50 MicroUSB Charger
• Battery BP-5T 1650 mAh
• Nokia Charging and Data Cable CA-190CD
• Nokia Headset WH-208
• Product user guide
