Vivotek FD8131V Fixed Dome Network Camera - 1 Megapixel CMOS Sensor, 3.0~12mm Vari-Focal Lens, Real-Time H.264, MPEG-4 & MJPEG Compression (Triple Codec), Weather-Proof IP66-Rated Housing - White

IMG 1 of 1
No Longer Available
Part Number:
208233
(?) Brand:
Vivotek
Manuf No:
FD8131V
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
FD8131V

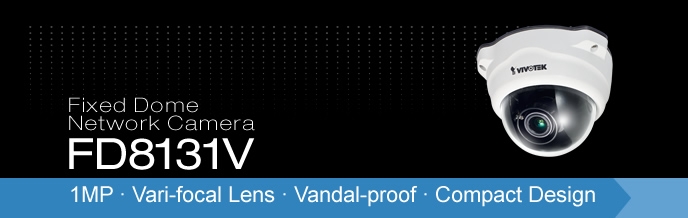

1MP Vari-focal Lens Vandal-proof Compact Design Fixed Dome Network Camera FD8131V

Overview

VIVOTEK FD8131V are easy-to-use fixed dome network cameras specifically designed for indoor security applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need to look no further for an all-in-one camera capable of capturing high quality HD video.

With the vari-focal lens, the FD8131V provide users the freedom to adjust the field of view in accordance with their applications. The IP66-rated housing of FD8131V protects the camera body against rain and dust and ensures operation under poor weather conditions. Furthermore, the metal vandal-proof housing effectively provides robust protection of FD8131V from vandalism.

Also included are a number of advanced features standard on VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot, 802.3af compliant PoE, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8131V present the best value in IP surveillance for indoor applications.

Features

  • 1-megapixel CMOS Sensor
  • 3.0 ~ 12 mm Vari-focal Lens
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • 3-axis Mechanical Design for Ceiling/Wall Mount Installation
  • Easy and Flexible Installation
  • Compact, Elegant Design
  • Vandal-proof IK10-rated and Weather-proof IP66-rated Housing

Specifications:

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 128 MB
RAM
  • 256 MB
Camera Features
Image sensor
  • 1/4" Progressive CMOS
Maximum Resolution
1280x800
Lens Type
  • Vari-focal
Focal Length
  • f=3~12mm
Aperture
  • F1.4 (wide), F3.2 (tele)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
Minimum Illumination
  • 0.5 Lux @ F1.4, 50 IRE
Pan / Tilt / Zoom
  • ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
On-board Storage
MicroSD/SDHC card slot
Video

  • H.264, MJPEG & MPEG-4
Maximum Frame Rate
  • H.264:
    • 30 fps at 1280x800
  • MPEG-4:
    • 30 fps at 1280x800
  • MPEG-4:
    • 30 fps at 1280x800
Maximum Streams
  • 4 simultaneous streams
S/N Ratio
  • Above 53 dB
Dynamic Range
  • 47 dB
Video Streaming
  • Adjustable resolution, quality and bitrate/li>
  • Configurable video cropping for bandwidth saving
Image Settings
  • Adjustable image size, quality and bit rate
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings
Audio

  • 10Base-T/100 BaseTX Ethernet (RJ-45)
Network
Users
  • Live viewing for up to 10 clients

  • LPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF
  • Ver. 1.02
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
  • RJ-45 cable connector for Network/PoE connection
  • Digital input*1
  • DC 12V power input
LED Indicator
  • System power and status indicator
Power input
  • DC 12V
  • IEEE 802.3af PoE Class 1
Power consumption
  • Max. 3.84 W

  • : 133 mm x 94 mm
Weight
  • Net: 589 g
Safety Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature
  • Start Temperature: -10C ~ 50C (14F ~ 122F)
  • Working Temperature: -20C ~ 50C (-4F ~ 122F)
Warranty
  • 24 months
System Requirements
Operating System
  • Microsoft Windows 7/Vista/XP/2000
Browser
  • Mozilla Firefox 7~10 (streaming only)
  • Internet Explorer 7.x or 8.x
Other Players
  • VLC: 1.1.11 or above
  • Quicktime: 7 or above
