- Double the reference video memory at 4GB takes your gaming to new levels of smooth.
- Pump up graphics performance with Super Alloy Power delivering a 15% performance boost, 2.5 longer lifespan and 35C cooler operation
- Dust-proof Fan design increases particle resistence and extends card lifespan by up to 25% longer than reference.
- GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface.
Overview
Raging Cool For the Win!
ASUS Exclusive Innovation
Super Alloy Power
The exclusive alloyed components helps boost performance by reducing power loss, enhancing durability and achieving cooler operation. The chokes’ concrete core eliminates the buzz sound in full load while the capacitors assure a 50,000 hours lifespan - equivalent to 2.5 times longer than traditional capacitors.
GPU Tweak
Detailed specs and actual card status with GPU-Z
Monitoring widget provides real-time and detailed multi-parameter info
Automatically check and update drivers and BIOS versions
Dust-proof Fan
Unique fan design dissipates heat efficiently while extending a graphic card’s lifespan by 25%* through increased dust and particle resistance.
4GB DDR3 Memory
On-board memory for the best gaming experience & the best resolution.
Graphics GPU Features
Powered by NVIDIA® GeForce® GT630
NVIDIA® CUDA™
Unlocks the power of GPU’s processor cores to accelerate the most demanding system tasks
NVIDIA® PhysX® ready
Dynamic visual effects like blazing explosions, reactive debris, realistic water, and lifelike characters.
Microsoft® Windows® 7 Support
Enable PC users to enjoy an advanced computing experience and to do more with their PC
NVIDIA® CUDA™
Unlocks the power of GPU’s processor cores to accelerate the most demanding system tasks
Microsoft® DirectX® 11 Support
Bring new levels of visual realism to gaming on the PC and get top-notch performance
Take Your Game Beyond HD
Dual-link DVI able to drive the industry’s largest & highest resolution flat-panel displays up to 2560x1600.

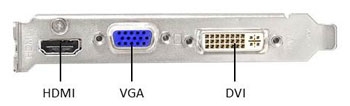

I/O Ports Highlight
Specifications
| Graphics Engine |
NVIDIA GeForce GT 630 |
| Bus Standard |
PCI Express 2.0 |
| Video Memory |
DDR3 |
| Engine Clock |
810 MHz |
| CUDA Core |
96 |
| Shader Clock |
1620 MHz |
| Memory Clock |
1100 MHz ( 550 MHz GDDR3 ) |
| Memory Interface |
128-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
D-Sub Output : Yes x 1
DVI Output : Yes x 1 (DVI-I)
HDMI Output : Yes x 1
HDCP Support : Yes |
| Power Consumption |
up to 75W (no additional PCIe power required) |
| Software |
ASUS Utilities & Driver |
| ASUS Features |
Fan Sink
Super Alloy Power |
| Dimensions |
7.6 " x 5.12 " x 1.18 " Inch |
