- Wing Shape Aluminum Front Bezel
- Breath Lighting effect
- USB3.0 superspeed
- Top-mounted HDD hot swap Docking Station
- VGA TripleMax 31cm
- CableClear cable management
- Liquid cooling ready
- Innovative 5.25 &3.5 tool-free design
- Combat Headset Holder
- Heightened footstand enhances intake airflow
Unique Design

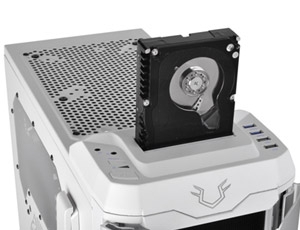

Top HDD Docking Station

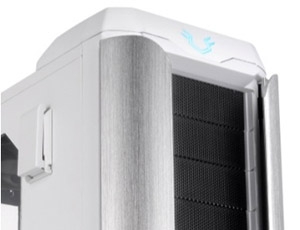

Wing Shape Aluminum Front Bezel

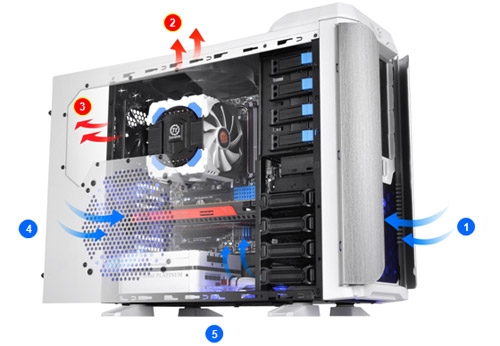

The Cooling System - Air Cooling
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600pm, 13dBA)
CPU Air Cooling System
2. Top (exhaust) : 200 x 200 x 30 mm fan x 1 (600rpm, 13dBA)
3. Rear (exhaust) : 120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
4. Side (intake) : 200 x 200 x 30 mm fan x 1 or 140 x 140 x 25 mm fan x 1(Optional)
5. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)

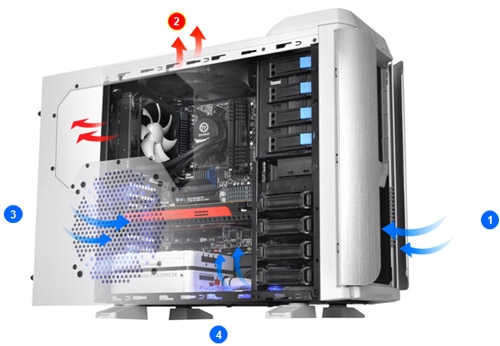

The Cooling System Liquid Cooling (Optional)
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600pm, 13dBA)
CPU Air Cooling System
2.Top (exhaust) : 200 x 200 x 30 mm fan x 1 (600rpm, 13dBA)
VGA Air Cooling System
3. Side (intake) : 200 x 200 x 30 mm fan x 1 or 140 x 140 x 25 mm fan x 1(Optional)
4. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
Specifications:
| P/N |
VO800M6W2N |
| Case Type |
Mid Tower |
| Dimension (H x W x D) |
510 x 252 x 550 mm (20 x 9.9 x 21.6 inch) |
| Net Weight |
7.8 kg/17.2 lb |
| Side Panel |
Transparent Window |
| Colour |
Exterior &Interior : Black &White |
| Material |
SECC |
| Cooling System |
Front (intake) :
200 x 200 x 20 mm Blue LED fan x 1 (600rpm, 13dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm,16dBA)
Top (exhaust) :
200 x 200 x 30 mm fan x 1 (600rpm, 13dBA)
Side (intake) : (optional)
200 x 200 x 30 mm fan or 140 x 140 x 25 mm fan x 1
Bottom (Intake) : (optional)
120 x 120 x 25 mm fan
|
| Drive Bays |
- Accessible: 4 x 5.25, 1 x 3.5
- Hidden: 5 x 3.5 or 2.5
- HDD Docking: 1 x 3.5 or 2.5 |
| Expansion Slots |
7 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
| I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Other |
CPU cooler height limitation: 175mm
VGA length limitation: 315mm |
