Wii U GamePad
The Wii U GamePad controller removes the traditional barriers between you, your games, and your TV by creating a second window into the video game world. It incorporates a 6.2-inch, 16:9 aspect ratio LCD touch screen, as well as traditional button controls and two analog sticks.
The GamePad also includes motion control, a front-facing camera, a microphone, stereo speakers, rumble features, a sensor bar, a stylus, and support for Near Field Communication (NFC). It is powered by a rechargeable lithium-ion battery and weighs approximately 1.1 pounds.
Motion controls
The built-in accelerometer and gyroscope allow for intuitive motion controls.
Camera
This can be used in games and also for video chat between Wii U consoles.
L Stick / R Stick
In addition to being able to push the sticks in any direction, you can also press them down to use them as buttons.
6.2 inch Touch Screen
Speakers
NFC location
It's possible to read data from, and write data to, certain items (such as special cards) without contact, using the near-field communication technology built into the GamePad.
Microphone
HOME Button
If you press the HOME Button while playing a game you can choose to start a range of Wii U applications, without having to leave the game you are playing.
TV Control Button
Starts a TV remote application you can use on your TV at home.
ZL/ZR Buttons
Stylus holder
Volume control
Audio jack
L/R Buttons

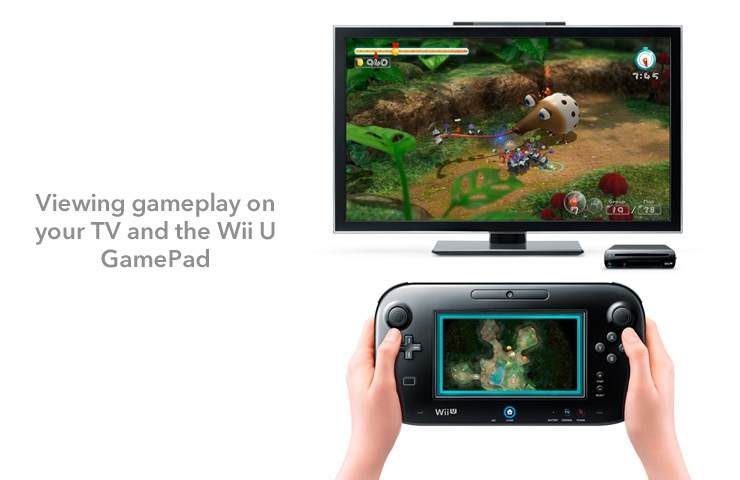

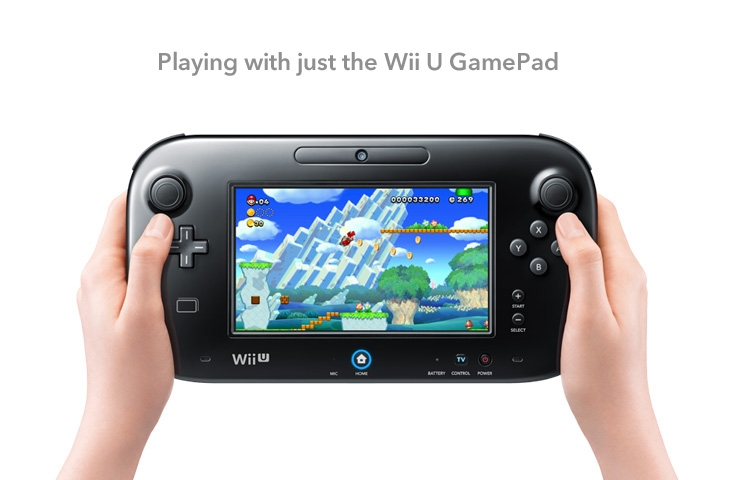

Different ways to play
Wii U Technical Specs
Wii U Hardware
The new Wii U console introduces the Wii U GamePad, a controller with a 6.2-inch touch screen that redefines how people interact with their games, their entertainment and one another.
Size
Approximately 1.8 inches high, 10.6 inches deep and 6.75 inches long.
Weight
Approximately 3.5 pounds (1.6 kg)
Wii U GamePad
The Wii U GamePad controller removes the traditional barriers between games, players and the TV by creating a second window into the video game world.
It also offers a new way for viewers to engage with their favorite entertainment. The GamePad incorporates a 6.2-inch, 16:9 aspect ratio LCD touch screen, as well as traditional button controls and two analog sticks. Inputs include a +Control Pad, L/R sticks, L/R stick buttons, A/B/X/Y buttons, L/R buttons, ZL/ZR buttons, Power button, HOME button, -/SELECT button, +/START button, and TV CONTROL button.
The GamePad also includes motion control (powered by an accelerometer, gyroscope and geomagnetic sensor), a front-facing camera, a microphone, stereo speakers, rumble features, a sensor bar, an included stylus and support for Near Field Communication (NFC) functionality.
It is powered by a rechargeable lithium-ion battery and weighs approximately 1.1 pounds (500 g).
Other Controllers

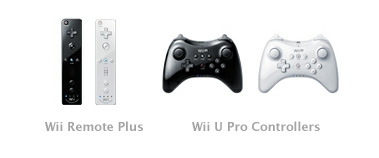

The Wii U console is capable of supporting two Wii U GamePad controllers, up to four Wii Remote (or Wii Remote Plus) controllers or Wii U Pro Controllers, and Wii accessories such as the Nunchuk, Classic Controller and Wii Balance Board.
Appearance
The new console features a compact design that will make it a natural addition to any home entertainment setup.
CPU
IBM Power-based multi-core processor
GPU
AMD Radeon-based High Definition GPU.
Storage
Wii U uses an internal flash memory (8 GB with the Basic Set; 32 GB with the Deluxe Set) for data storage. It also supports external USB storage.
Media
Wii U and Wii optical discs.
Networking
Wii U can be connected to the Internet via a wireless (IEEE 802.11b/g/n) connection. The console features four USB 2.0 connectors two in the front and two in the rear that support Wii LAN Adapters.
Video Output
Supports 1080p, 1080i, 720p, 480p and 480i. Compatible cables include HDMI, Wii Component Video, Wii S-Video Stereo AV and Wii AV.
Wii Compatibility
Nearly all Wii software and accessories can be used with Wii U.
Energy Efficiency
Wii U utilizes specially designed power-saving features to lower its energy consumption.
