All stock codes associated to this product
V11H527053, PRJEHTW8100, PRJ-EHTW8100
Epson EH-TW8100
Home Theatre Projectors
Brilliant 2D & 3D Entertainment at Home
Overview
KEY FEATURES:
- Exquisite Detail A contrast ratio of up to 320,000:1 for the most discerning AV enthusiasts
- A True Cinematic Experience 2D and 3D, Full HD 1080p technology
- Great Picture Uniformity and Positioning Flexibility State-of-the-art Fujinon lens with a 2.1x zoom ratio
- Widest Horizontal Lens Shift in its Class Vertical and horizontal lens shift for flexible, easy setup
- Ready for Exciting 3D 2 pairs of rechargeable RF 3D glasses included
C2Fine™ technology delivers a higher contrast ratio for exquisite detail
C2Fine offers smooth, uniform images with exceptional contrast for better image quality. Based on this new phase-compensation technology, light leakage is eliminated, and, when combined with the auto iris, this technology allows for contrast ratios up to 320,000:1.

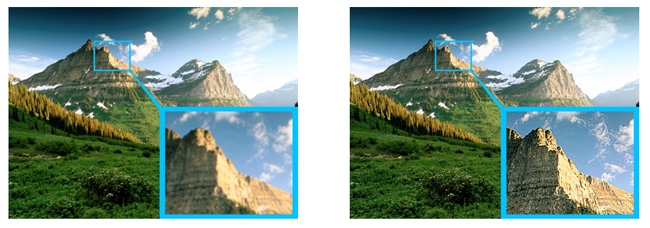

Super Resolution
Makes DVDs and standard definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution. It also sharpens blurry images that have been enlarged by a general upscaling process.
Super Resolution Technology OFF Super Resolution Technology ON

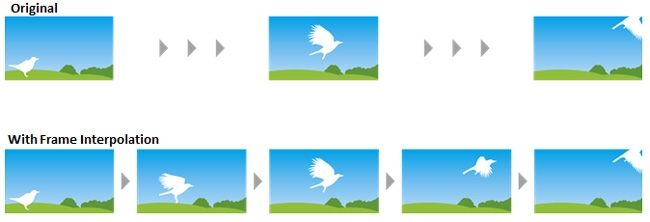

Frame Interpolation
Film is encoded on Blu-ray at 24 frames per second. FineFrame deconstructs and reconstructs these sources for a 1080p frame rate output of up to 120Hz, virtually eliminating flicker and frame-to-frame judder. The 4:4 pulldown function also makes corrections for improperly encoded sources, and features a reverse 2:3 pulldown detection and correction function.
Bright 3D Drive Technology for 3D Cinematic Adventures
Enjoy thrilling 3D adventures right in the comfort of your living room. Featuring Bright 3D Drive technology, the TW8100 puts you right in the middle of the action. Epsons drive system minimizes the blackout time of 3D glasses and provides greater brightness when viewing 3D content.
2D-to-3D Conversion
Transform any 2D movie, from the latest science-fiction adventure to your favourite classic, to spectacular 3D. Or, watch the big game in exciting 3D. The TW8100 makes it easier than ever with convenient 2D-to-3D conversion. With just the touch of a button, you can watch your favourite shows and movies in eye-popping 3D. There are no special discs required. And, the possibilities are endless.
Two Rechargeable RF 3D Glasses Included Enjoy 3D adventures from any seat in the house. Line of sight is not required with the included RF 3D glasses. Rechargeable for up to 40 hours of battery life, these innovative glasses have a 3-minute quick-charge feature for up to 3 hours of battery life.
Advanced Auto Iris Technology (2D and 3D)
Epson Auto Iris technology adjusts the aperture to provide optimum contrast and brightness for each scene.

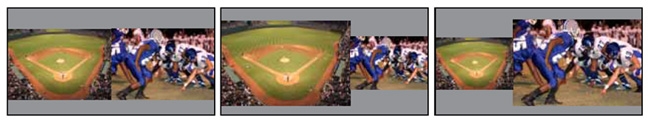

Split Screen Feature
Project two images (video or still) side-by-side from two different sources simultaneously. Choose from three layout options. You can swap the images as well as choose the source for audio.
Layout Option 1: 50-50% split screen Layout Option 2: Main image on left Layout Option 3: Main image on right

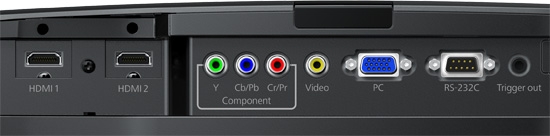

Connectivity Panel
Specifications:
| PRODUCT NAME |
Epson EH-TW8100 |
| PRODUCT CODE |
V11H527053 |
| WHAT'S IN THE BOX |
|
| |
EH-TW8100 Projector, Power Cable, Remote Control + Batteries, 3D Glasses + USB cable for charging x 2, 3D Glasses Charger, HDMI Cable Clamp x 2, User's Manual |
| TECHNOLOGY |
|
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.74-inch wide panel with MLA (D9, C2 Fine, 12 bit, OD) |
| OPTICAL |
|
| Zoom |
1-2.1 (Optical Zoom) |
| Screen Size |
30" to 300" [0.87 to 9.03 m] (Zoom: Wide)
30" to 300" [1.88 to 19.15 m] (Zoom: Tele) |
| Lens Shift |
Vertical: -96.3% to +96.3% (H Center, Manual)
Horizontal: -47.1% to +47.1% (V Center, Manual) |
| Keystone Correction |
Vertical: -30 to +30 degrees |
| Projection Distance |
100" screen 2.98 - 6.36 m |
| Throw Ratio |
1.34 (Zoom: Wide), 2.87 (Zoom: Tele) |
| Projection Lens F Number |
2.0 - 3.17 |
| Projection Lens Focal Length |
22.5 mm - 47.2 mm |
| Focus Method |
Manual Focus |
| IMAGE |
|
| Colour Light Output |
2,400 Lumens |
| White Light Output |
2,400 Lumens |
| Resolution |
1080p |
| Native Aspect Ratio |
16:9 |
| Contrast Ratio |
320,000:1 |
| Lamp Type |
230 W UHE (E-TORL) |
| Colour Video Processing |
Full 10bit (Partial 12bit) |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow), 1 x Component Video |
| Input: Computer |
1 x D-sub 15-pin (RGB) |
| Input: Digital |
2 x HDMI |
| Input: Control |
1 x RS232c, 1 x Trigger Out |
| ADVANCED FEATURES |
|
| WirelessHD |
No |
| Super Resolution |
Yes |
| 3D Formats |
Top-and-Bottom, Side-by-Side, Frame Packaging |
| 2D to 3D Conversion |
Yes |
| THX Certification |
No |
| ISF Certification |
No |
| Split Screen |
Yes |
| Direct Power On |
Yes |
| Security |
Kensington -style lock provision |
| Colour Modes |
Dynamic, Living room, Natural, Cinema, 3D Dynamic, 3D Cinema |
| GENERAL |
|
| Dimensions D x W x H |
140 x 395 x 466 mm |
| Weight |
8.4kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
2 Years |
| Power Consumption: Lamp on |
340W |
| Power Consumption: Standby |
0.39W |
| Noise Level |
Normal/Eco: 32dB |
| |
| * Which ever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V12H002S2Y
|
Floor Standing Tripod Screen |
| |
V13H010L69 |
Lamp - ELPLP69 |
| |
V13H134A39 |
Air Filter - ELPAF39 |
| |
V12H548001 |
3D Glasses - ELPGS03 |
| |
V12H564C12 |
3D Glasses Charger - ELPAC01 |
| |
V12H003B22 |
Ceiling Mount |
| |
V12H526040 |
Low Profile Ceiling Mount - ELPMB30 |
| |
V12H003P13 |
Extension Pole 668-918 mm |
| |
V12H003P14 |
Extension Pole 918-1,168 mm |
