All stock codes associated to this product
GT6201GD3LV2, GT620-1GD3-L-V2, ENGT6201GD3LV2, ENGT620-1GD3-L-V2
- Resists dust and particles for 25% longer graphics card longevity
- Premium alloys in power delivery components defeat heat for cards that run 15% faster and last 2.5 times longer than reference.
- GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface.
Overview
Ultra-smooth Full HD 3D Enjoyment
ASUS Exclusive Innovation
Dust-Proof Fan
25% longer graphics card lifespan
Unique fan design dissipates heat efficiently while extending a graphic card’s lifespan by 25%* through increased dust and particle resistance.
Super Alloy Power
Enhanced durability and cooling
Exclusively-formulated alloy components boost performance by reducing power loss, enhancing durability, and achieving cooler operation. Choke concrete cores eliminate buzzing sound under full load while capacitors assure a 50,000-hour lifespan: equivalent to 2.5 times longer than traditional capacitors.
GPU Tweak
Real-time intuitive graphics tuning
- Detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time and detailed multi-parameter info
- 2D/ 3D switcher can lock the card in 3D mode for higher benchmarks
- Automatically check and update drivers and BIOS versions
- Sync GPU clocks and voltages for easier overclocking
Gigantic 1GB DDR3 Memory
On-board memory for the best gaming experience & the best resolution.
Graphics GPU Features
Powered by NVIDIA® GeForce® GT620
NVIDIA PhysX ready
Dynamic visual effects like blazing explosions, reactive debris, realistic water, and lifelike characters.
Support Large & High Resolution
Dual-link DVI able to drive the industry’s largest & highest resolution flat-panel displays up to 2560x1600.
GeForce CUDA Support
Unlocks the power of GPU’s processor cores to accelerate the most demanding system tasks.
Microsoft® DirectX® 11 Support
Bring new levels of visual realism to gaming on the PC and get top-notch performance.

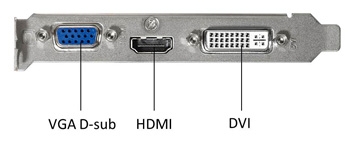

I/O Ports Highlight
Specifications
| Graphics Engine |
NVIDIA GeForce GT 620 |
| Bus Standard |
PCI Express 2.0 |
| Video Memory |
DDR3 1GB |
| Engine Clock |
700 MHz |
| Memory Clock |
1200 MHz ( 600 MHz DDR3 ) |
| Memory Interface |
64-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
D-Sub Output : Yes x 1
DVI Output : Yes x 1
HDMI Output : Yes x 1
HDCP Support : Yes |
| Power Consumption |
up to 75Wno additional PCIe power required |
| Software |
ASUS Utilities & Driver |
| ASUS Features |
Fan Sink
Super Alloy Power |
| Dimensions |
6.65 " x 4.8 " x 0.9 " Inch |
