CoolerMaster HAF XB Micro-Tower Case - NO PSU, Black
  • 2xUSB3.0, 1xHD-Audio, 2x120mm, Steel body, Front Mesh, Plastic Bezel, Side-Window, ATX

IMG 1 of 6
No Longer Available
Part Number:
211465
(?) Brand:
CoolerMaster Web Site
Manuf No:
RC-902XB-KWN1
RC902XBKWN1
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Date Added:
30/11/2012
Details Files Images & Video
All stock codes associated to this product
RC902XBKWN1, RC-902XB-KWN1, CSCORC902XBKWN1
HAF XB (windowed top panel version)

(RC-902XB-KWN1)

Introduction

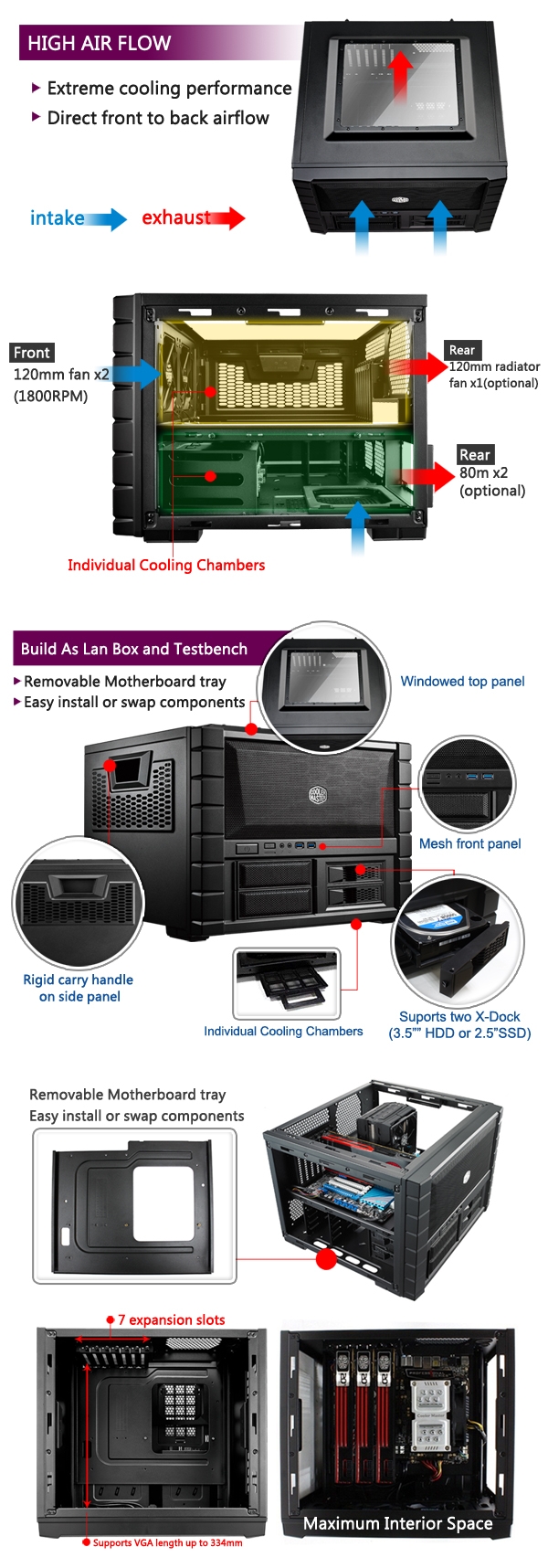

The Cooler Master HAF XB takes the famous High Air Flow series to a revolutionary new form factor with extreme cooling performance. The removable horizontal mainboard tray and front panels with two 120mm front fans create a powerful front to back airflow. Despite its compact rugged design, there is plenty of space for even the tallest high performance tower heatsinks, thick watercooling radiators and up to 3 of the longest high end graphics cards. Within seconds the side panels with their rigid carry handles and the windowed top panel can be removed, transforming the HAF XB into a Test bench with direct access to the hardware. The front panel features two USB 3.0 super speed ports as well as 2 SSD compatible X-dock slots for lightning fast data transfers.

Features

  • Supports 240mm radiators with extra clearance for thick performance radiators or push-pull fan configurations.
  • Supports Tower CPU coolers with a height of up to 180mm and up to 334mm long high end graphics cards.
  • Motherboard Tray can be removed to install, remove or swap components.
  • The first Case that quickly and easily transforms into a Testbench Ideal for Enthusiasts and Overclockers.
  • Dual USB 3.0 SuperSpeed ports and X-Dock slots at the front panel for lightning fast plug-n-play I/O.
  • Rigid carry handles on the side panels.







Specifications

Material Steel body, Front Mesh, Plastic bezel

Dimension (W / H / D) 442 x 330 x 423mm / 17.4 x 13 x 16.7inch

Weight 8.2kg / 18.1lb

M/B Type ATX, Micro-ATX, Mini-ITX

5.25" Drive Bay 2

3.5" Drive Bay 2 (from X-Dock)

I/O Panel USB 3.0 x 2 (internal)
Audio In & Out x 1 (supports HD audio)

Expansion Slots 7

Cooling System Front: 120mm fan x 2, 1800 RPM, 21 dBA (or 140mm fan x 2)

Rear: 120mm fan x 1 (optional), and 80mm fan x 2 (optional)

Power Supply ATX PS2 (Support Max. of the PSU in 180mm length)

Maximum Compatibility VGA card length: 334mm/13.1inch
CPU cooler height: 180mm/7.1inch
Water cooling support:
240mm radiator x 1(front), 120mm radiator x 1(rear)

2.5"/3.5"- SATA HDD Drive Bay 6 (2 from X-Dock)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
