Features:
AV176U, a compact and affordable duplex scanner
The AV176U is a 30 page-per-minute, 60 image-per-minute, duplex sheetfed scanner that is fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. With the straight paper path, the scanner allows thicker paper up to 400 g/m2 (110 lbs) and embossed plastic cards such as credit cards, or driver’s license up to 1.25mm to be transmitted smoothly. Ultrasonic multi-feed detection assures you that not a single page of your documents will be lost.

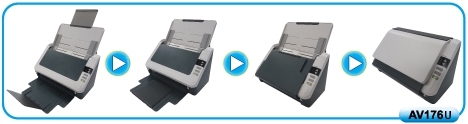

AV176U saves your space when not in use
Both the input and output paper tray of the AV176U can be folded when not in use. This feature not only helps prevent the unit from dust but also save more working space.
Powerful bundled software applications
The AV176U comes with TWAIN and ISIS drivers, and is bundled with a suite of powerful software applications that include Avision Button Manager, AvScan 5.0, and ScanSoft PaperPort 14SE. With Button Manager, you can create searchable PDF, scan and send images to e-mail, printer, or other destinations with just a simple press of a button. The AVScan V5 and ScanSoft PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.
|
AV176U
|
| General Specification |
| Technology |
Contact Image Sensor (CIS) |
| Light Source |
LED (Light Emitting Diode) |
| Document feeding mode |
ADF |
| Optical Resolution (dpi) |
600 |
| Halftone Patterns |
Dither and Error Diffusion |
| Grayscale mode |
16bits input 8bits output |
| Color mode |
48bits input 24bits output |
| Memory Size |
64MB SDRAM |
| Dimensions (WxDxH) |
282 mm x 152 mm x 165 mm ( 11 x 6.1 x 6.5 in ) |
| Weight |
2.3 Kg ( 5 lb ) |
| Interface |
USB 2.0 |
| Power Consumption |
Operation: < 15 W
standby: < 8 W
Power saving: < 5 W |
| Recommended Daily Volume |
Up to 3,000 pages |
| OS Support |
Win XP/Vista/Win 7 |
| Bundled Software |
ISIS driver, TWAIN driver, Button Manager 2, AVScan 5.0, PaperPort 14SE |
| Features |
| Ultrasonic paper jam detection |
Yes |
| Long Paper Mode |
Up to 36 inch (200 dpi) |
| Card Scan |
Embossed card (Thickness 1.25mm) |
| Scan Size |
| ADF Minimum |
52 x 74 mm (2 x 2.9 in ) (A8) |
| ADF Maximum |
216 x 356 mm ( 8.5 x 14 in ) (Legal/A4) |
| ADF Capacity |
50 sheets |
| Paper Thickness and Weight |
28g ~ 400 g/m ( 7 ~ 110 lb ) |
| Scanning Speed |
| B/W @ 200dpi, A4 |
Simplex : 30 PPM
Duplex : 60 IPM |
| B/W @ 300dpi, A4 |
Simplex : 20 PPM
Duplex : 40 IPM |
| Color @ 200dpi, A4 |
Simplex : 30 PPM
Duplex : 60 IPM |
| Color @ 300dpi, A4 |
Simplex : 20 PPM
Duplex : 40 IPM |
