- TOP-selected 1058MHz core -78MHz higher than reference for smoother gameplay.
- Flattened copper heatpipes makes direct contact with the GPU surface so heat is dissipated efficiently, delivering a 20% cooler and vastly quieter performance than reference.
- Acclaimed DIGI+ VRM with 8-phase Super Alloy Power technology delivers precise digital power and enhanced durability for stable overclocking.
- GPU Tweak utility helps you modify and tune clocks (including new boost clock settings), power consumption targets, voltages, and fan performance via an intuitive interface
Overview
Deploy the Cool. Reign in Silence.
ASUS Exclusive Innovation

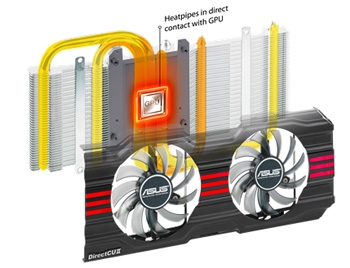

DirectCU II
DirectCU thermal design utilizes direct contact copper heatpipes so heat is dissipated efficiently, delivering a 20% cooler and vastly quieter performance than reference.
1085 MHz Boost Clock
1085 MHz Boost clock for better performance and outstanding gaming experience
DIGI+VRM with Super Alloy Power
Acclaimed DIGI+ VRM has been applied via a massive power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference.
GPU Tweak
- Detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time and detailed multi-parameter info
- Automatically check and update drivers and BIOS versions
Gigantic 2GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution
Graphics GPU Features
Powered by GeForce GTX670
NVIDIA Adaptive V-Sync
Get more than just faster frame rates. Get ultra-smooth gaming every time with NVIDIA gaming innovations - Adaptive Vertical Sync. This technology dynamically adjusts Vsync to current frame rates for maximum playability.
SLI Support
Multi-GPU technology for extreme performance
PCI Express 3.0
Delivers double the bandwidth per lane of PCIe 2.0 for faster GPU-CPU communication.
NVIDIA GPU Boost
Push the breathtaking performance of the GeForce GTX graphics cards to new levels with NVIDIA GPU Boost. This technology dynamically maximizes clock speeds to bring out the best performance in every game.
NVIDIA PhysX ready
Play games with advanced effects such as blazing explosions and lifelike characters with 10X faster switching between graphics and physics processing, enabling more complex effects to be rendered in real time.
NVIDIA® 3D Vision™ Surround Ready
Transform hunreds of PC games into stereoscopic 3D and enjoy immersive full HD 3D gaming across three displays at an incredible 5760x1080 resolution.
DirectX® 11
DirectX® 11 GPU-accelerated tessellation allows more detailed geometry to be packed into a scene, allowing characters to be rendered with cinema-quality detail.

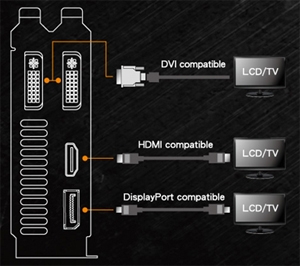

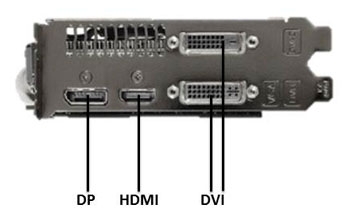

I/O Ports Highlight
Specifications
| Graphics Engine |
NVIDIA GeForce GTX 670 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 2GB |
| Engine Clock |
GPU Boost Clock : 1058 MHz
GPU Base Clock : 980 MHz |
| CUDA Core |
1344 |
| Memory Clock |
6008 MHz ( 1502 MHz GDDR5 ) |
| Memory Interface |
256-bit |
| Resolution |
DVI Max Resolution : 2560x1600 |
| Interface |
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes |
| Power Consumption |
up to 225W2 additional 6 pin PCIe power required |
| Accessories |
1 x Power cable |
| Software |
ASUS GPU Tweak & Driver |
| ASUS Features |
DirectCU Series
OC Series
Super Alloy Power |
| Dimensions |
10.7 " x 5.4 " x 1.7 " Inch |
| Note |
To have the best cooling performance, ASUS GTX670-DC2OG-2GD5 extends the fansink to 2 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system!
Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit https://www.geforce.com/ |
