- Ideal for a multi-screen solution with a super narrow frame
- Best for work and play with Full HD 1080p visual quality and rich connectivity including dual HDMI and D-sub inputs
- Ultra-fast 1ms (gray-to-gray) response time for amazingly blur-free multimedia experience
Overview

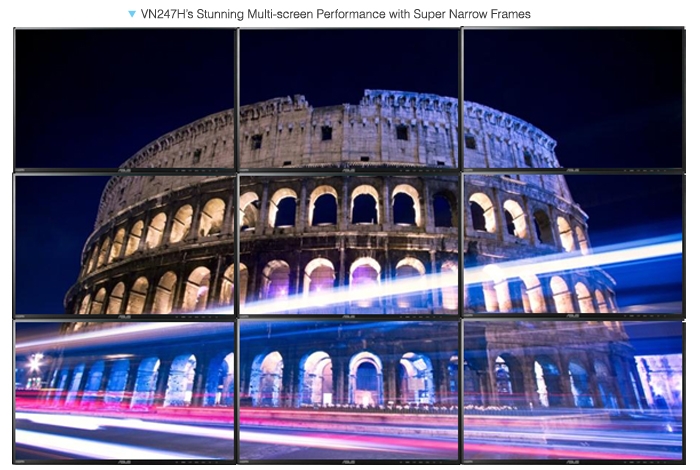

Experience a multi-screen solution with a super narrow frame

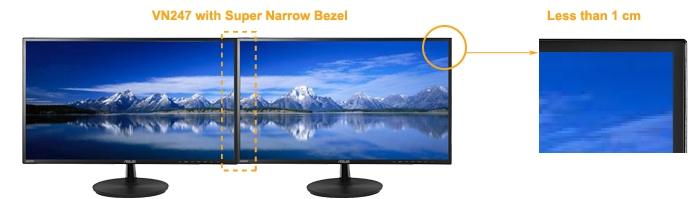

The ASUS VN series features compact dimensions- this 23.6 display has a super narrow bezel less than 1cm thick, bringing a broader and better vision without compromising on style and comfort. Its pedestal boasts a sleek concentric circle design and the rear bezel comes with a textured finish that is scratch-proof. The VN247H is also VESA wall mount compatible, and has the capabilities to be a stunning multi-screen solution.
Amazing Visuals for Work and Play

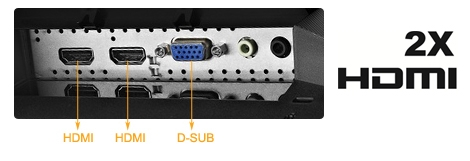

Full HD with dual HDMI and D-sub inputs
VN247H leads you to enter a big and spectacular world of colors with Full HD 1080p (1920x1080) support and rich connectivity including dual HDMI and D-sub inputs.
1ms response time
An Ultra-fast 1ms gray-to-gray response time and trace free technology deliver realistic moving visuals and a blur-free multimedia experience.
Smart Contrast Ratio for lifelike visuals
With 80,000,000:1 ASUS Smart Contrast Ratio (ASCR) and 250cd/m brightness, the VN247H enhances display contrast and sharpness by adjusting backlight luminance to achieve the deepest black tones and brightest whites, resulting in extra-clear visuals that truly come to life.
Aspect Control function
Aspect Control function allows users to select a preferred display mode among Full and 4:3 for true-to-life gaming or movie watching without any data loss or image distortion.
Extensive Connectivity and Built-in Stereo Speaker for Multimedia Enjoyment
VN247H comes with rich connectivity including Dual HDMI and D-sub so that users could easily connect it to Full HD Blu-ray Disc players and myriad HD playback devices like DVD players and set-top boxes for limitless entertainment and multimedia enjoyment with the built-in stereo speakers.
Splendid Video Intelligence Technology
The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 6 preset video modes (Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey.

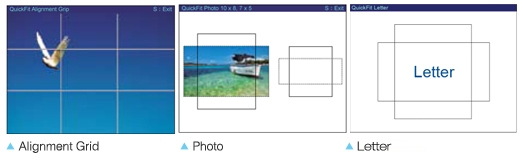

QuickFit Virtual Scale for true what you see is what you get
ASUS includes its exclusive QuickFit Virtual Scale feature with the VN247H, allowing you to preview photos and documents on-screen in their actual size prior to printing. It can be activated via a monitor hotkey, and serves as a highly useful guide to accurately view and edit photos in their native size.
Supporting Formats:
- Document: Letter
- Photo: 8x10, 5x7, 4x6, 3x5, 2x2
- Grid: Alignment
User-friendly Design
- Built-in hidden stereo speakers enable audio enjoyment together with true-to-life visual

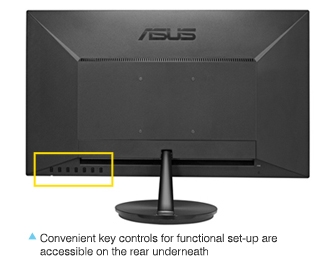

- I/O port hidden behind the detachable rear cover to keep the back bezel simple and clean
- VESA Wall Mount Standard (100 x 100 mm )
- 25 ( forward 5, backwards 20 )Tilting Angle
- KENSINGTON Security Lock.
Complete After-Sale Service
- 3-year system warranty
- 3-year panel warranty
- Free pick-up service (in specific countries)
Green in Mind
Greener Materials
- Mercury-free LED-backlit panel
Corrugated cardboard packaging with at least 80% recycled content
- Slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO emission
Energy and Planet Saving
- 37.2k Wh electricity saving
- 23.6kg reduction in COemissions, equivalent to:
1.9 trees planted
2 years of oxygen for a family of four
Award-Winning Design
ASUS Design engineers penned the lines of the VN247H with people-centered approach, giving it a super narrow frame, and a rear cover with more expressive 3D patterns. Having bagged Good Design Award in Japan, the VN series meet the high expectations of product quality, design aesthetics, technology and usability without compromises.
Specifications:
| Display |
Panel Size: Wide Screen 23.6"(59.9cm) 16:9
True Resolution : 1920x1080
Full HD 1080P : Yes
Pixel Pitch : 0.2715mm
Brightness(Max) : 250 cd/
ASUS Smart Contrast Ratio (ASCR) : 80000000:1
Viewing Angle (CR10) : 170(H)/160(V)
Response Time : 1ms (Gray to Gray)
Display Colors : 16.7M |
| Video Feature |
Trace Free Technology
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes : 6 Modes
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes (Letter/Alignment Grid/Photo Modes)
HDCP support |
| Audio Features |
Stereo Speakers : 2W x 2 Stereo RMS |
| Convenient Hotkey |
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Volume Adjustment
Input Selection
QuickFit |
| I/O Ports |
Signal Input : HDMI x 2, D-Sub, DVI-D (via HDMI-to-DVI cable)
PC Audio Input : 3.5mm Mini-Jack
AV Audio Input : HDMI
Earphone jack : 3.5mm Mini-Jack |
| Signal Frequency |
Analog Signal Frequency : 24~83 KHz(H)/ 50~75 Hz(V)
Digital Signal Frequency : 24~83 KHz(H)/ 50~75 Hz(V) |
| Power Consumption |
Power ON: < 35W
Power Saving Mode : < 0.5W
Power Off Mode : < 0.5W |
| Mechanical Design |
Chassis Colors : Black
Tilt : +20~-5
VESA Wall Mounting : 100x100mm |
| Security |
Kensington lock |
| Dimensions |
Phys. Dimension with Stand(WxHxD) :548.6x394.9x194.2mm
Box Dimension (WxHxD) : 602x478x128mm |
| Weight |
Net Weight (Esti.): 3.7 kg
Gross Weight (Esti.):5.8 kg |
| Accessories |
VGA cable
Audio cable
Power cord
Quick start guide
HDMI-to-DVI cable
Warranty Card |
| Regulation Approval |
Energy Star, BSMI, CB, CCC, CE, C-Tick, EPEAT Silver, FCC, Gost-R, RoHS, TCO5.0, TCO6.0, UL/cUL, VCCI, WHQL (Windows 8, Windows 7) |
