All stock codes associated to this product
CW9060009WW(H100I), CW-9060009-WW(H100I)

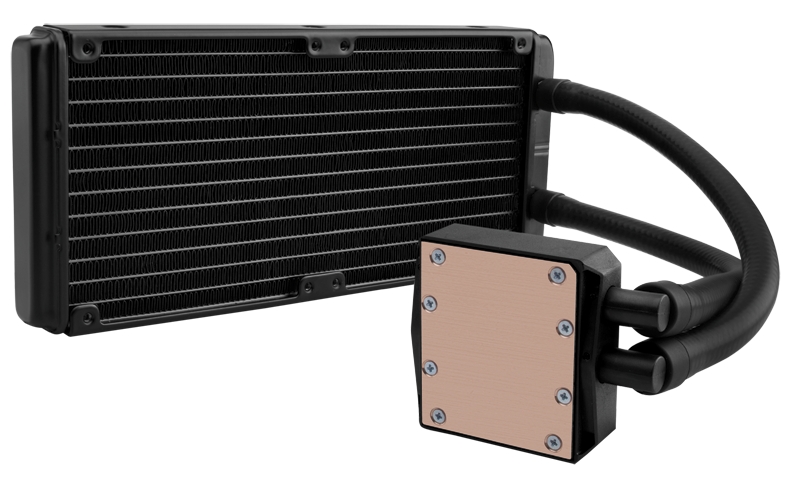

Hydro Series H100i Extreme Performance CPU Cooler
The Hydro Series H100i delivers extreme performance liquid CPU cooling a 240mm top-mounted radiator and Corsair Link monitoring and control.
SKU# CW-9060009-WW
Overview
Extreme Performance CPU Cooling
Have a PC case that supports a top-mounted 240mm radiator? Take your CPU cooling to a new level. H100i starts with the advanced design of the Hydro Series H80i, and adds a double-wide radiator for even better performance.
Corsair Link Monitoring and Control
Monitor temperature and control lighting and fan speed on your screen. No additional hardware is necessary.
Features
Self-contained Cooling System
Hydro Series H100i comes pre-filled, and never needs refilling or priming.
Dual Radiator with Custom Fan Design
The 240mm top-mounted radiator provides maximum surface area for maximum cooling power. The 120mm fans use wide, low-pitch blades for better static pressure to noise ratio, offering improved efficiency at lower noise levels.
Built-In Corsair Link
No additional hardware is necessary just connect the included Corsair Link cable to a USB header on your motherboard and download the free Corsair Link Dashboard software. You can monitor coolant temperature and adjust cooling performance directly from your desktop.
Tool-free multiplatform magnetic mounting bracket kit
The modular design makes installation simpler, and it’s compatible with Intel and AMD processors.
Large-diameter, low permeability tubing
Minimal coolant evaporation helps ensure long life, and the resilient material offers both high flexibility and excellent leak protection.
Contents and Specifications
Package contents
- Corsair Hydro Series H100i High Performance Liquid CPU Cooler
- Magnetic Multi-platform mounting kit for all modern CPU sockets
- Dual SP120L High Performance Fans
- USB Cable for Corsair Link Compatibility
- Fan and radiator mounting screws
- Thermal compound (pre-applied)
- Quick Start Guide
Technical Specifications
- Radiator dimensions: 120mm x 275mm x 27mm
- Fan dimensions: 120mm x 120mm x 25mm
- Fan speed: 2700 RPM
- Fan airflow: 77 CFM
- Fan dBA: 37.68 dBA
- Fan static pressure: 4mm/H20
Compatibility
- Intel LGA 1155, 1156, 1366, and 2011
- AMD sockets FM1, FM2, AM2, and AM3
- Hydro Series H100i requires a case with dual 120mm fan mounts with 15mm spacing for a 240mm radiator
Specifications:
- Warranty: Five years
- Cold Plate Material: Copper
- Fan Specification: 120mm (x2)
- Socket Support: AMD AM2, AMD AM3, AMD FM1, AMD FM2, Intel LGA 1155, Intel LGA 1156, Intel LGA 1366, Intel LGA 2011
- Radiator Material: Aluminum
- Tubing: Large-diameter, low permeability
