All stock codes associated to this product
CNPS20LQ, ZMCNPS20LQ, ZM-CNPS20LQ, ZalmanZMCNPS20LQ, Zalman ZM-CNPS20LQ
CNPS20LQ
Ultimate Liquid CPU Cooler
Socket FM2/Socket AM2+/AM2/Socket AM3+/AM3/Socket FM1/Socket 1156/Socket 1366/Socket 1155/Socket 2011
|
|
|
Socket |
|
CPU |
|
CPU Compatibility |
|
Intel |
2011 |
Core i7 Extreme |
Supports all speeds |
Core i7 |
1155/1156 |
Core i7 |
Supports all speeds |
Core i5 |
Core i3 |
Pentium |
Celeron |
1366 |
Core i7 Extreme |
Supports all speeds |
Core i7 |
AMD |
FM2 |
Trinity |
Supports all speeds |
FM1 |
LIano |
Supports all speeds |
AM3+ |
FX |
Supports all speeds |
AM3 |
Phenom II |
Supports all speeds |
Athlon II |
Opteron |
AM2+ |
Phenom II |
Supports all speeds |
Phenom |
Athlon FX |
Athlon X2 |
Opteron |
Athlon |
Sempron |
AM2 |
Athlon FX |
Supports all speeds |
Athlon X2 |
Athlon |
Opteron |
Sempron |
|
Specifications:
Dimensions (Radiator) |
153(L) x 120(W) x 38(H)mm |
Weight (Waterblock) |
195g |
Materials |
Fins: Aluminum / Base: Copper |
Fan |
PWM 120mm Fan |
Fan Dimensions |
120(L) x 120(W) x 25(H)mm |
Fan RPM |
900 ~ 2,000 10% |
Noise Level |
17 ~ 36 dBA 10% |
Fan Bearing |
Long life bearing |
PWM Duty Cycle |
30 ~ 100 5% |
Connector |
4-Pin(Fan), 3-Pin(Pump) |
Rated Voltage |
12V |
Features
Easy Installation & Maintenance
Liquid sealed water cooler provides convenient installation and does not require any maintenance.

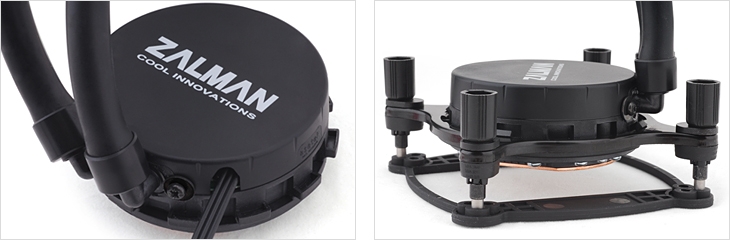

Built-in Pump within Water Block
Built-in pump within water block minimizes tubes and allows rapid circulation of coolant, thus enabling quiet computing.

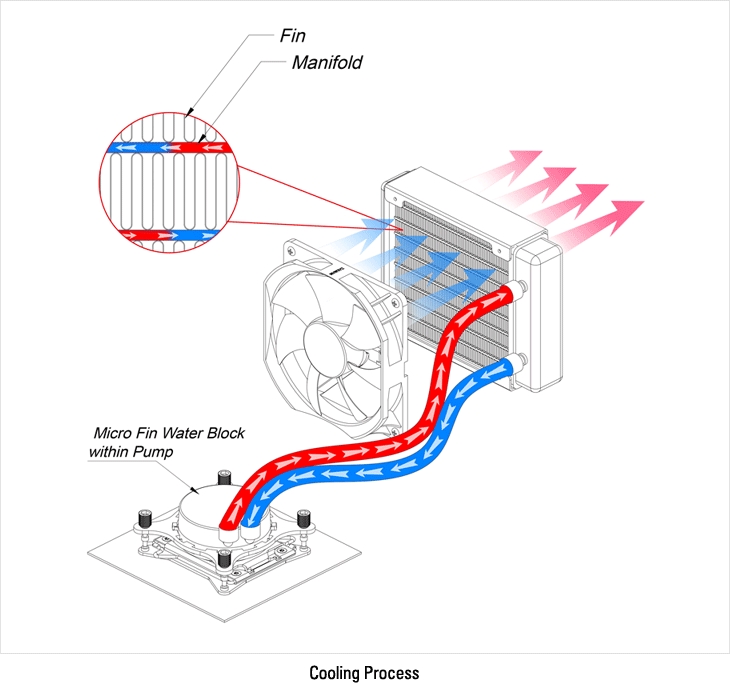

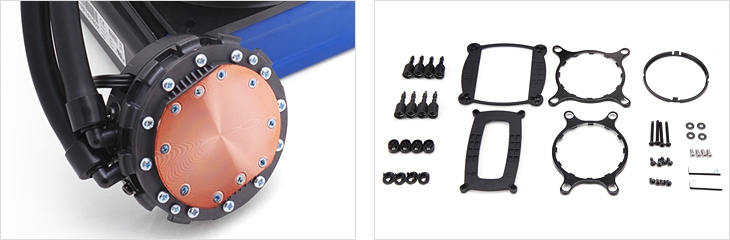

Micro Fins
Micro Fins made of pure copper within the water block provide excellent heat transfer.
Versatile Compatibility
CNPS20LQ accommodates a broad range of sockets.
Intel Sockets LGA 2011 / 1155 / 1156 / 1366 CPUs
AMD Sockets FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPUs & APUs
Durable and Long-Lasting Tubes
Durable and long-lasting tubes are elegantly finished to prevent leakage and guarantee safety.
Slim Water Block Design
The water block`s height is 28mm and designed to be installed in ATX cases as well as slim or LP (low profile) cases.
(However, this applies only to cases which support 120mm rear fan.)
