A slim bezel to offer great flexibility
With a bezel of only 19.6mm, you’ll discover there is no problem when installing multiple outdoor LFDs side by side. The slim bezel removes any distractions from your sight to provide a greater surface area, which can be useful when making side by side installation. It allows your content to shine through with less distractions or obstructions. LED technology also enables the display to run more efficiently and at lower temperatures to create a comfortable environment for spaces of every sise.
Optimised for your 24/7 business
With Samsung’s innovative technology your message can be displayed reliably 24 hours a day, 7 days a week, thanks to numerous durability tests. The innovative cooling technologies of Samsung LFDs improve heat dissipation while lowering internal temperatures. This allows the LFD to operate efficiently and consistently over longer periods of time without costly servicing and maintenance. And you can be sure the quality of your message won’t be compromised from extended usage. Built with industry leading imaging technology, Samsung outdoor series produce images that are more vibrant and realistic than any other large format display in its class.
Sunglasses free
Because LCD panels use a polarised film, passers-by wearing sunglasses also coated in a polarised film cant always see what was being displayed on the screen. The two polarised films cancelled each other out. But now Samsung have developed another panel coating that overcomes this problem allowing everybody to see your message clearly.
Multi control via RJ45/RS232C
The Samsung Outdoor series features an upgraded Multi Display Control solution that lets you control a large number of displays through their embedded RS232 and RJ45 interfaces. Easy and intuitive to use, you can control displays over short and long distances.
Built-in Speaker
Maximise impact with a great picture twinned with ultra-crisp audio. The powerful built-in speakers will allow your message to be heard loud and clear while saving you the cost and space of having to purchase and install separate speakers.
Smart scheduling
Keep your display running efficiently at all times. This Samsung LFD boasts a smart scheduling feature. The automatic power on/off function allows you to designate time, day, volume, input source and holiday dates.
Display Port interface
The Samsung Outdoor series includes professional Display Port interface enables high performance multi-display control without the need for a distributor over longer distances.
Specifications:
Display
| H-Scanning Frequency |
30kHz ~ 81kHz |
|
| Maximum Pixel Frequency |
148.5MHz |
|
| V-Scanning Frequency |
56Hz ~ 85Hz |
|
Panel
| Diagonal Size |
46" |
|
| Type |
S-PVA (E-DID) |
|
| Resolution |
1920 x 1080 (16:9) |
|
| Pixel Pitch (mm) |
0.53025 (H) x 0.53025 (V) |
|
| Active Display Area |
1,018.08mm (H) x 572.67mm (V) |
|
| Brightness |
1,500cd/m |
|
| Contrast Ratio (Dynamic) |
10000:1 |
|
| Viewing Angle (Horizontal/Vertical) |
178 / 178 |
|
| Response Time (G-to-G) |
8ms |
|
| Display Color |
8 bit - 16.7M |
|
| Color Gamut |
72% |
|
| Contrast Ratio |
4000:1 |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D, Display Port |
| |
Video |
CVBS, HDMI1, HDMI2, Component (D-sub 15pin) |
| |
Audio |
RCA (L / R) , Stereo mini Jack |
| Output |
Audio |
Stereo mini Jack |
| External Control |
RJ45, RS232C (in / out) |
|
Mechanical Specifications
| Dimension |
Set Dimension (WxHxD) |
614.2 x 1,735.0 x 390.0mm |
| |
Package Dimension (WxHxD) |
740 x 1,880.0 x 505.0mm |
| Weight |
Set Weight |
91.5kg |
| |
Package Weight |
108kg |
| Protection Glass |
Yes |
|
| Media Player Option Type |
SIM (Slide in Module ) |
|

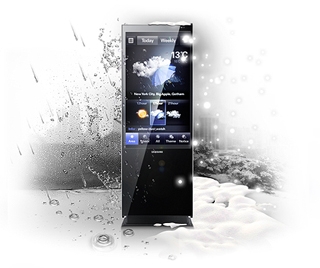

Operation
| Operating Temperature |
-30C ~ 40C (TBD) |
|
| Humidity |
10 ~ 80% |
|
General Features
| Key |
Extremely High Brightness, All in one for outdoor solution |
|
| Special |
Air Conditioning Guide, Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C / RJ45 MDC, Plug and Play (DDC2B), PIP / PBP, Pivot Display, Button Lock, Smart Scheduling, Smart F / W update |
|
Power
| Power Supply |
AC 220V (+ / - 10%), 50Hz : EU, ChinaAC 120V (+ / - 10%), 60Hz : US |
|
| Power consumption |
Off Mode |
Less than 1 watts |
| |
Sleep Mode |
Less than 1 watts |
| Type |
Internal |
|
Accessory
| Included |
Quick Setup Guide, Warranty Card,Application CD, Power Cord,Remote Controller, Batteries |
|
Embedded PC
| CPU |
SBB-A (optional) |
|
| N/B |
SBB-A (optional) |
|
| S/B |
SBB-A (optional) |
|
| GPU |
SBB-A (optional) |
|
| FDM/HDD |
SBB-A (optional) |
|
| Memory |
SBB-A (optional) |
|
| Ethernet |
SBB-A (optional) |
|
| Connectivity |
USB |
SBB-A (optional) |
| |
Output |
SBB-A (optional) |
| |
Others |
SBB-A (optional) |
Certification
| EMC |
FCC (USA) FCC Part 15, Subpart B class ACE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC (China): GB 9254-2008, GB 17625.1-2003 |
|
| Safety |
UL (USA): UL 60950-1CSA (Canada): CSA C22.2 No. 60950-1 TUV (Germany): EN60950-1NEMKO (Norway): EN60950-1 KC (Korea): K60950-1 CCC (China): GB 4943-2001PSB (Singapore): IEC60950-1GOST (Russia): IEC60950-1, EN55022SIQ (Slovenia): IEC60950-1, EN55022PCBC (Poland): IEC60590-1, EN55022NOM (Mexico): NOM-019-SCFI-1993IRAM (Argentina): IEC60950-1SASO (Saudi Arabia): IEC60950-1 |
