Overview
HD Quality Screens for Greater Impact
The Samsung SL46B is the ideal solution for displaying your messages in most window display environments. With flexible and dynamic features, you can promote all the latest retail offers.
Features:
As business demand grows for outdoor digital signage solutions, manufacturers continue to innovate and improve the way that large format display (LFD) features and construction withstand fluctuating environmental conditions. Samsung outdoor LFDs are built to last, offering innovative technology, streamlined design and sturdy construction. With high-brightness, high-contrast screens that meet the demands of harsh outdoor environments, Samsung outdoor LFDs are suitable for virtually any digital signage application. The Samsung SL46B, with the narrow bezel also can be linked together to create an almost seamless video wall image.
Super High Brightness
The panel on Samsung Semi-Outdoor LFDs are highly bright for clear image and enhanced readability.
Samsung LFDs are much brighter than conventional screen and deliver excellent visibility even under the brightest lighting conditions.
With sharper vivid more vivid images your messages will attract more attention and break through the clutter.

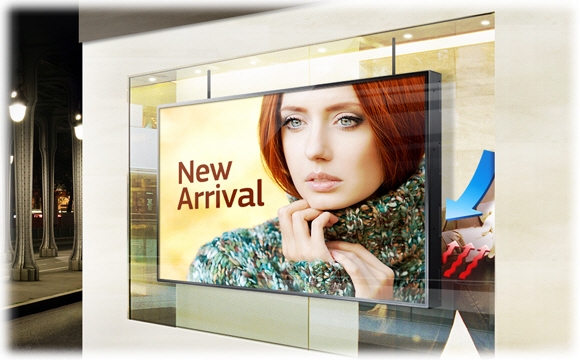

Optimised for Your 24/7 Business
With Samsungs innovative technology your message can be displayed 24 hours a day, 7 days a week.
The Samsung Semi-Outdoor series utilises innovative cooling technology that improves heat dissipation while lowering internal temperatures. This allows you to run the LFD for 24 hours a day over longer periods without requiring costly servicing or maintenance.

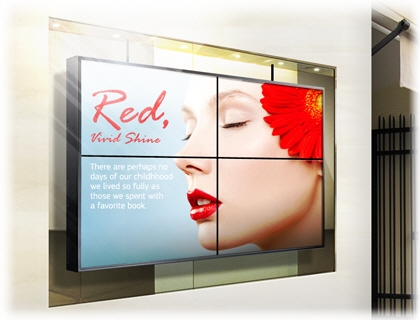

Slim Bezel Maintains Image Smoothness
The slim bezel of just 12mm removes any distractions from your sight to provide a greater surface area, which can be useful when creating a video wall in a shop window. It allows your content to shine through with less distractions or obstructions.
Sunglasses Free
Because LCD panels use a polarized film, passers-by wearing sunglasses also coated in a polarized film cant always see what was being displayed on the screen.
The two polarized films cancelled each other out. But now Samsung have developed new panel coating that overcomes this problem allowing everybody to see your message clearly.

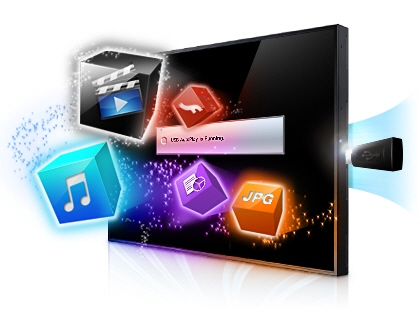

Embedded Media Player
In your day-to-day work its a constant challenge to make sure your sales or educational messages are noticed quickly, with maximum impact.
With the built-in media player for your Samsung LFD, you can elevate your display capabilities more than you ever thought possible.
Built within a microchip the media player has a CPU with a powerful processing speed and an impressive cache size. This means you can store and play advertisements, instructional films and animatics quickly and conveniently.

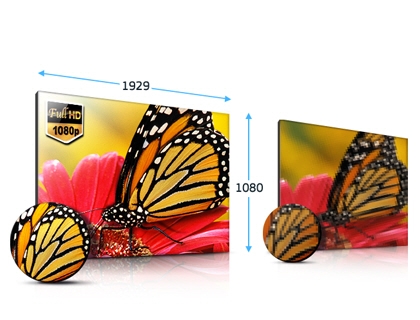

Full HD of 1929x1080 Resolution
Samsung Semi-Outdoor LFD Full HD models are naturally eye catching and demand attention. The rich colour and dramatic depth of detail contained in the images provides the perfect platform for a high visibility, high impact digital display.

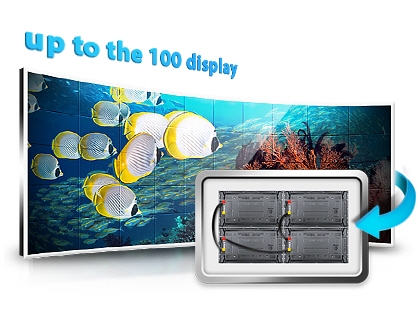

Configure to up to 100 Displays
Ensure your customers see the best across multi screens. Digital loop out produces a single image without any loss of quality, and theres no need for a separate video signal distributor. Its easy to install and the most cost-effective way to connect multiple displays up to an impressive 100 displays at once.

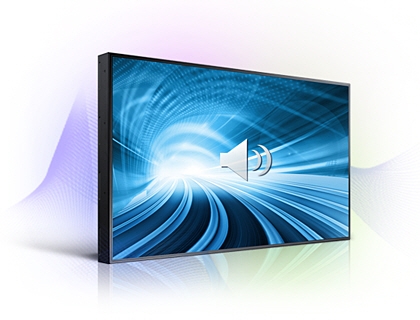

Built-in Speaker
Maximise impact with a great picture twinned with ultra-crisp audio. The powerful built-in speakers will allow you message to be heard loud and clear while saving you the cost and space of having to purchase and install separate speakers.

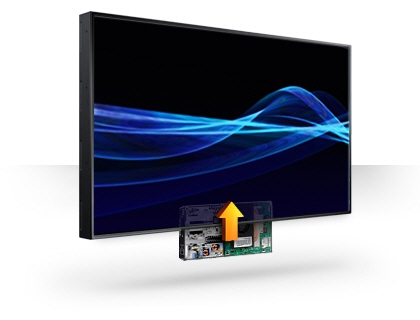

High Performance Optional PC
Customise the content of your LFD solution with the optional Slidein-Module (SIM) feature to meet your unique needs. Run content from a PC quickly and easily by simply sliding the PC in and out of the display without having to dismantle the unit from the wall.

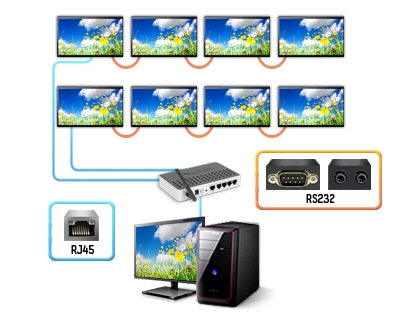

Multi Control via RJ45/RS232C
The Samsung Semi-Outdoor series features an upgraded Multi Display Control solution that lets you control a large number of displays through their embedded RS232 or RJ45 interfaces.
Easy and intuitive to use, you can control displays over short and long distances.

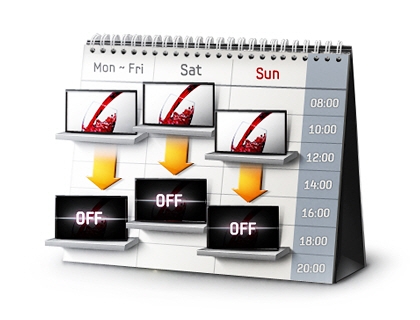

Smart Scheduling
Keep your display running efficiently at all times. This Samsung LFD boasts a smart scheduling feature. The automatic power on/off function allows you to designate time, day, volume, input source and holiday dates.

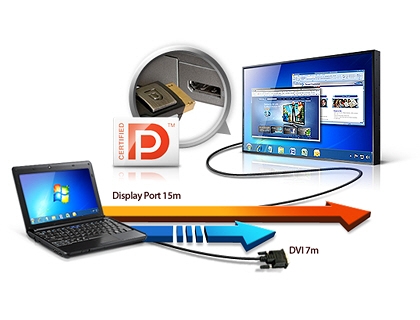

Display Port Interface
The Samsung Semi-Outdoor series includes professional Display Port interface enables high performance multi-display control without the need for a distributor over longer distances.
(2 times longer than DVI)
Specifications:
Display
| H-Scanning Frequency |
30 ~ 81kHZ |
|
| Maximum Pixel Frequency |
148.5MHz |
|
| V-Scanning Frequency |
48 ~ 75HZ |
|
Panel
| Diagonal Size |
46" |
|
| Type |
S-PVA |
|
| Resolution |
1920x1080 (16:9) |
|
| Pixel Pitch(mm) |
0.53025(H) x 0.53025(V) |
|
| Active Display Area |
1018.08 mm (H) X 572.67 mm (V) |
|
| Brightness |
1500 cd/m2 |
|
| Contrast Ratio (Dynamic) |
10,000:1 |
|
| Viewing Angle (Horizontal/Vertical) |
178/178 |
|
| Response Time (G-to-G) |
8ms |
|
| Display Color |
8 bit - 16.7M |
|
| Colour Gamut |
72% |
|
| Contrast Ratio |
4,000:1 |
|
Connectivity
| Input |
RGB |
D-SUB, DVI-D |
| |
Video |
USB, HDMI, CVBS, Component(by D-SUB) |
| |
Audio |
RCA(L/R) , Stereo mini Jack |
| Output |
RGB |
DVI-D(Loop-out) |
| |
Video |
N/A |
| |
Audio |
Stereo MINI Jack |
| |
Power Out |
N/A |
| External Control |
RJ45, RS232C(in/out) |
|
| External Sensor |
Attached |
|
Mechanical Specification
| Dimension |
Set Dimension (WxHxD) |
1049.4 x 602.6 x 125 mm |
| |
Package Dimension (WxHxD) |
1145 x 726 x 300 mm |
| Weight |
Set Weight |
26.8 kg |
| |
Package Weight |
32.6 kg |
| VESA Mount |
600 x 400mm |
|
| Protection Glass |
N/A |
|
| Stand Type |
N/A |
|
| Media Player Option Type |
Embedded, SIM (Slide in Module ) |
|
Operation
| Operating Temperature |
10~ 30 (Direct Sunlight) |
|
| Humidity |
10~80% |
|
General Feature
| Key |
Extremely High Brightness |
|
| Special |
Plug and Play, MagicInfo Lite, Slide in Module, Digital Daisy Chains, Built in Speakers, Lamp Error Detection, Anti Image Retention, Temperature Sensor, RS232C/RJ45 MDC, PIP/PBP, Video Wall(10x10), Pivot Display, Button Lock, Smart Scheduling |
|
Power
| Energy Efficiency Class |
N/A |
|
| Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
|
| Power Consumption |
Off Mode |
less than 1W |
| |
On Mode |
440(Max), 356(Typical), 1500.4(BTU) |
| |
Sleep Mode |
less than 1W |
| Type |
Internal |
|
Embedded PC
| CPU |
SBB-A (optional) |
|
| N/B |
SBB-A (optional) |
|
| S/B |
SBB-A (optional) |
|
| GPU |
SBB-A (optional) |
|
| FDM/HDD |
SBB-A (optional) |
|
| Memory |
SBB-A (optional) |
|
| Ethernet |
SBB-A (optional) |
|
| Connectivity |
USB |
SBB-A (optional) |
| |
Output |
SBB-A (optional) |
| |
Others |
SBB-A (optional) |
Certification
| EMC |
FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003 |
|
| Environment |
N/A |
|
| Safety |
UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1 |
|
Accessories
| Included |
Quick Setup Guide, Warranty Card, Application CD, Power Cord, Remote Controller, Batteries, D-Sub cable |
|
| Optional |
Mount |
N/A |
| |
Specialty |
N/A |
| |
Stand |
N/A |
