Slide and glide your way to easy temperature control.
You’re the captain of your cooktop with Sliding Control user interface. Sliding control lets you easily control all functions via its ultra-convenient external LED display panel. Setting and changing the heating level in an instant with just one motion — a simple touch and glide across the control with your finger. With Sliding Control user interface, your touch is your command.

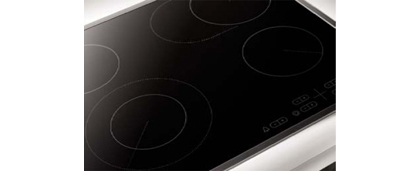

Ceramic Glass Cooking
Responsive cooking! Our ceramic glass cooking surface features four high tech cooking zones with powerful radiant heater surfaces to heat your food.

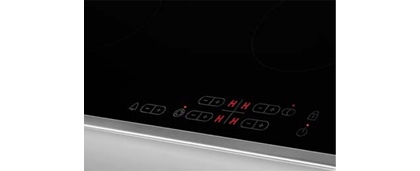

Control and Function Indicators
Never worry about a hot cooking surface again. After the heat is off, our H shape after heat indicator shows you whether it's safe to touch the surface or not.
Automatic Safety
Let Samsung ease your mind with our saftey shut off ensuring our appliances go off when you want them to. We also offer a child safety lock to make sure little hands don't get themselves into trouble.
Easy to Clean
Clean up is a snap with our unique designs! We offer smooth, ergonomic surfaces that can be easily wiped clean.

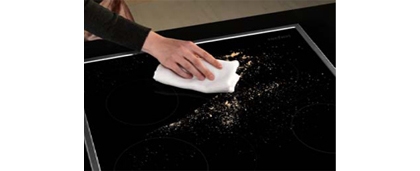

A wipe-down is all the clean-up it needs
With Samsung's easy-to-clean ceramic glass cooking surface big spills are no trouble. With the smooth, ergonomic design, cleaning up most spills and grease splatters is as easy as a quick wipe with a soft cloth. And because the ceramic surface doesnt get as hot as other electric cooktops, spills shouldn't bake on. So you can spend more time cleaning your plate than your cooktop.

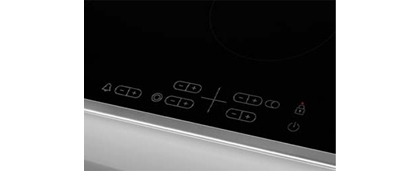

Smart Touch Control
Responsive cooking! Our ceramic glass cooking surface features four high tech cooking zones with powerful radiant heater surfaces to heat your food.
Specifications:
General Feature
| Scraper |
Yes |
|
| Display Type |
LED |
|
| Heater Element |
Radiant |
|
| Residual Heat Indicator |
Yes |
|
| Timer |
No |
|
| Child Lock |
Yes |
|
| Power control |
Yes |
|
| Power On/Off |
Yes |
|
Physical Specifications
| Loading Quantity |
20/40Ft |
459 / 918 |
| Weight |
Net |
7.5 |
| |
Gross |
10Kg |
| Dimension |
Net (WxHxD) |
575.0 x 52.6 x 505.0 |
| |
Gross (WxHxD) |
692 x 130 x 622 |
| |
Cutout (WxHxD) |
560 x 490 |
General Information
| Frame |
Bevelled frame |
|
| mode |
4 Single |
|
| model type install |
Built-in |
|
| Surface |
Ceramic Glass |
|
| type |
Ceramic |
Yes |
| |
Gas |
No |
| Control Method |
Touch Slide Control |
|
Performance
| Heating Element (Ceramic) |
Single (145mm,1.2kw) |
2 (1.2K) |
| |
Single (180mm, 1.8kw) |
2 (1.8K) |
| |
Oval (170 x 265mm, 2.4kw) |
No |
| heating element power (Gas) |
Front Right |
No |
| |
Front Left |
No |
| |
Rear Right |
No |
| |
Rear Left |
No |
