960GM/U3S3FX, 960GM/U3S3 FX, 960GMU3S3, 960GM-U3S3

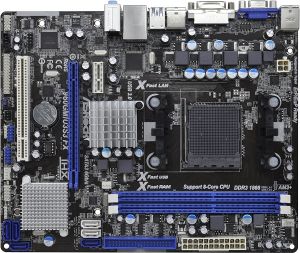

960GM/U3S3 FX
- Supports AM3+ Processor, 8-Core CPU
- Solid Capacitor for CPU Power
- Supports Dual Channel DDR3 1866(OC)
- 1 x PCI Express 2.0 x16 slot
- 2 x USB 3.0, 2 x SATA3
- Integrated AMD Radeon 3000 graphics, DX10, PS 4.0
- Gigabit LAN 10/100/1000 Mb/s
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec), Supports THX TruStudio
- Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
- Supports ASRock Instant Boot, Instant Flash, OC DNA, APP Charger
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Features
XFast 555 Technology : XFast RAM / XFast LAN / XFast USB
Fully Optimize Memory Usage
5X Faster for Photoshop Execution
XFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.
Faster Internet Access
Lower Latency In Game
XFast LAN can lower latency in the game after setting online game priority higher.
Time latency in World of Warcraft: Cataclysm
Boosts up your USB speed
USB Performance Comparison
ATTO Disk Benchmark 4K Read
AM3+ 8-Core Processor Support
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
C.C.R. (Combo Cooler Retention Module)
USB 3.0
10X Faster Speed! Speed up to 5 Gb/s
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.0 technology advances the data transfer rate up to 5Gb/s.
SATA3
Enjoy 6 Gb/s hight transfer speed now!
Maximum your harddisk performance with SATA3.0. SATA3 technology enables the incredible data transfer rate up to 6 Gb/s speed which is 2X faster speed over SATA2.
Free Bundle - Cyberlink MediaEspresso 6.5 Trial
CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
MAGIX Multimedia Suite
The ultimate solutions to enhance your media experience. From music management, music creation, video editing to photo management. Simply do more with your media than you ever thought possible.
mufin playerThe next generation music player plays all standard audio formats, manages large music collections, helps you discover music, offers a free online hard drive and more.
Music Maker SilverThe easiest way to arrange, remix, record and create your own music. Develop your musical style now - without any prior skills.
Video easy SEWith this program you can easily edit your movies, add transitions, text and background music, and even quickly enhance image and sound quality.
Photo Manager 10Put an end to your digital photo chaos and organize your photo collection with ease. The program is fully equipped for fast import, photo and video clip management, photo editing and presentation.
THX TruStudio
THX TruStudio is specially designed to bring the same great audio experience found in live performances, films, and recording studios to the PC.
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
OC DNA
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
OC Tuner
ASRock OC Tuner is a user-friendly ASRock overclocking tool which allows you to guard your system by hardware monitor function and overclock your hardware devices to get the best system performance.
Specifications
| General |
| CPU |
- Support for Socket AM3+ processors
- Support for Socket AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- Supports AMD OverDrive with ACC feature (Advanced Clock Calibration)
- AMD LIVE! Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology |
| Chipset |
- Northbridge: AMD 760G
- Southbridge: AMD SB710 |
| Memory |
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1866(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS |
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB Voltage Multi-adjustment |
| Audio, Video and Networking |
| Graphics |
- Integrated AMD Radeon 3000 graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports DVI with max. resolution up to 1920x1200 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz
- Supports HDCP function with DVI-D port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port |
| Audio |
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports THX TruStudio |
| LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE |
| Expansion / Connectivity |
| Slots |
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 1 x PCI slot |
| Storage |
- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and "Hot Plug" functions |
| USB 3.0 |
- 2 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s |
| Connector |
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x IR header
- 1 x CIR header
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
| Rear Panel I/O |
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous |
| Unique Feature |
- ASRock OC Tuner
- ASRock Intelligent Energy Saver
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.) |
| Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD OverDrive Utility, CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; ASRock MAGIX Multimedia Suite - OEM) |
| Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables |
| Hardware Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
| Form Factor |
- Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
- Solid Capacitor for CPU Power |
| OS |
- Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit compliant |
| Certifications |
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required) |
