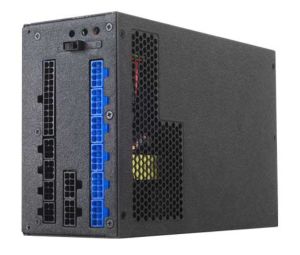

SilverStone 1350W ZM1350 Zeus PSU - ATX 12V, 80mm Fan, Full Cable Management, 80 PLUS Silver Certified
  • 16x SATA, 6x 8/6-Pin PCI-E Connector(500mm), 2x 8/6-Pin PCI-E Connector(500mm/150mm)

IMG 1 of 5
No Longer Available
Part Number:
213309
(?) Brand:
SilverStone Web Site
Manuf No:
G540ZMK30500110
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
G540ZMK30500110, ZM1350
ZM1350

INTRODUCTION

After a four year hiatus, SilverStone’s top of the line power supply series, Zeus, has finally returned. The all new Zeus ZM1350 retains excellent characteristics of its predecessors with continuous output of 1350W (1500W peak) rated for 24/7 operating at 50°C, ±1% regulation for exceptional stability, and careful selection of premium industrial grade components. Other aspects such as efficiency, modular cabling compatible with other SilverStone PSUs, and adjustable switches for multi/single rail, voltage tweak, and fan control are vastly improved to make this the most thought-after power supply for elites among IT professionals, PC power users, and overclockers.

Special Features

  • 1350W continuous output and 1500W peak power at 50C (60 with 1080W continuous)
  • Low ripple & noise with strict 1% voltage regulation
  • Patented six / single +12V rails adjustable switch
  • User-accessible +3.3V / +5V / +12V rails voltage adjustment pots
  • 80 PLUS Silver certification with 80 PLUS Gold level efficiency at 230Vac
  • Class-leading +12V rails combined loading up to 105A
  • Industrial grade components
  • Advanced 100% full cable management
  • Long life dual ball bearing 80mm fan with speed control switch



Specifications:

Model No.
SST-ZM1350
Max. DC Output
1350W (Peak 1500W)

Load Range

+3.3V		 +5V +12V1 +12V2 +12V3 +12V4 +12V5 +12V6 +5VSB -12V
Max.(Amps)
 25A 25A 30A 30A 30A 30A 30A 30A 4A 0.5A
105A (Single +12V rail mode)
Peak (Amps)
 / / / / / / / / / /
Min.(Amps)
 1.0A 1.0A 1.0A 1.0A 1.0A 1.0A 1.0A 1.0A 1.0A 0A
Range(%)
 1% 1% 1% 1% 1% 1% 1% 1% 5% 10%
Line Reg.(%)
 1% 1% 1% 1% 1% 1% 1% 1% 1% 1%
Ripple(mVp-p)
 20mV 20mV 30mV 30mV 30mV 30mV 30mV 30mV 50mV 120mV
combined +3.3, +5V
170W
combined +12V
1260W / 105A
Input Voltage
90V~264V
Input Frequency Range
50Hz ~ 60Hz
PFC
Active PFC.PF>0.95 at Full Load
Efficiency
85%~89%@20% to 100% loading (115Vac
88%~91%@20% to 100% loading (230Vac
MTBF
100,000 hours at 25Cat Full Load
Operating temperature
5C ~ 50C @1350W continuous
60C @1080W continuous
Protection
Over Current Protection
Over Power Protection
Under Voltage Protection
Over Voltage Protection
Short Circuit Protection
No Load Protection
Connectors
1 x 24 / 20-Pin motherboard connector500mm
1 x 8 / 4-Pin EPS / ATX 12V connector700mm
1 x 8 / 4-Pin EPS / ATX 12V connector500mm
6 x 8 / 6-Pin PCIE connector500mm
2 x 8 / 6-Pin PCIE connector500mm / 150mm
16 x SATA connector500mm / 150mm / 150mm / 150mm
6 x 4-Pin Peripheral connector 500mm / 150mm / 150mm
2 x 4-Pin Floppy connector500mm / 150mm / 150mm / 150mm
Colour
Black (scratch resistant and lead-free paint)
Cooling System
Single long life dual ball bearing 80mm fan
Noise Level
20dBA-40dBA

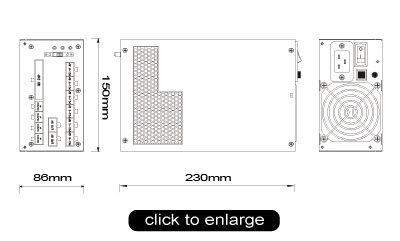

Dimension
150 mm (W) x 86 mm (H) x 230 mm (D)
Weight
4.5kg
Certification
80 PLUS Silver
Other
GPU Support list

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5-year Manufact.

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.
