All stock codes associated to this product
HD7950DC2T3GD5V2, HD7950-DC2T-3GD5-V2
- ASUS DirectCU thermal design utilizes all-copper heatpipes and 20% larger dissipation area so heat is removed efficiently. DirectCU II performs 14dB quieter than reference in idle and full load thanks to dual 100mm sound-dampening fans making it a low-noise high-performance graphics card.
- Acclaimed DIGI+ VRM has been applied via a power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference.
- GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface.
The coolest 28nm card - ASUS HD 7950 DirectCU II with GPU Tweak
ASUS Exclusive Innovation
DirectCU II
DirectCU thermal design utilizes direct contact copper heatpipes and 20% larger dissipation area, achieving 20% cooler and 14dB quieter performance than reference.
Gigantic 3GB GDDR5 Memory
On-board memory for the best gaming experience & the best solution
DIGI+ VRM with Super Alloy Power
Acclaimed DIGI+ VRM has been applied via a power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference
GPU Tweak
- Detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time and detailed multi-parameter info
- 2D/ 3D switcher can lock the card in 3D mode for higher benchmarks
- Automatically check and update drivers and BIOS versions
- Sync GPU clocks and voltages for easier overclocking
900 MHz Overclock
900MHz Overclock for better performance and outstanding gaming experience
Graphics GPU Features
Powered by AMD Radeon™ HD 7950
PCIE3.0
Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU – CPU communication
AMD HD3D™ Technology
Optimize stereoscopic 3D gaming and movie-watching entertainment.
AMD CrossFireX™ Technology
Multi-GPU technology for extreme performance
28nm GPU
Less power consumption & more efficient transistor
AMD Eyefinity Technology
Extends your visual horizon acro
ss six displays for engaging gameplay and entertainment.
DirectX® 11 Support
Bring new levels of visual realism to gaming on the PC and get top-notch performance
Microsoft® Windows® 7 Compatible
Enable PC users to enjoy an advanced computing experience and to do more with their PC

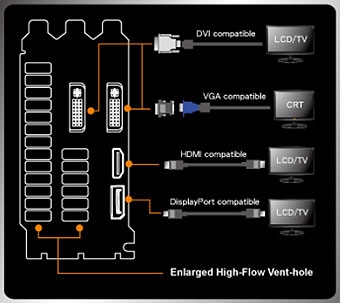

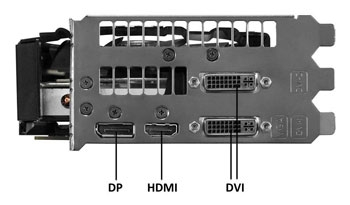

I/O Ports Highlight
Specifications
| Graphics Engine |
AMD Radeon HD 7950 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 3GB |
| Engine Clock |
900 MHz |
| Memory Clock |
5000 MHz ( 1250 MHz GDDR5 ) |
| RAMDAC |
400 MHz |
| Memory Interface |
384-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes |
| Power Consumption |
up to 225W2 additional 6 pin PCIe power required |
| Accessories |
1 x CrossFire cable
1 x Power cable |
| Software |
ASUS Utilities & Driver
GPU Tweak
|
| ASUS Features |
DirectCU Series
TOP Series
Super Alloy Power |
| Dimensions |
11 " x 5.1 " x 2.1 " Inch |
| Note |
To have the best cooling performance, ASUS HD7950-DC2T-3GD5-V2 extends the fansink to 2.5 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system!
Support for six simultaneous displays may require complementary products compatible with DisplayPort 1.2 Multi-Stream Transport. |
