ASUS ESC4000 G2 Server - 2U Rackmount - 1620W
  • 2xLGA2011, Intel C602-A PCH, 16xDDR3-DIMM, Slim DVD-RW, IKVM, 8x Hotswap HDD Bays, 2xGigLAN

IMG 1 of 3
No Longer Available
Part Number:
214034
(?) Brand:
ASUS Web Site
Manuf No:
ESC4000 G2
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
ESC4000G2, ESC4000 G2, ESC4000-G2

ESC4000 G2


Hybrid Computing with scalable expansion capability

ASUS ESC4000 G2 is the latest high-density GPU/Coprocessor server based on dual Intel Xeon E5-2600 processor platform, featuring eight hot-swap 3.5 SATA HDD cages, 1+1 80+ Platinum 1620W redundant power supply and nine PCI-E Gen3 x16 expansion slots. It delivers high density computing power, scalable expansion capability, intelligent thermal solution and green design, making it an ideal choice for applications in the HPC field of life and medical science, engineering science, financial modeling and virtualization.

Overview

High density 2U hybrid HPC computing power

8+1 Flexible Expansion Slots


The ESC4000 G2 supports up to eight PCI-E Gen3 x16 slots for high expandability, compatible with versatile expansion cards, especially in supporting up-to-date Intel Xeon Phi Co-processor Family and NVIDIA Tesla K10/K20 Family of GPU accelerators. In addition, there is an optional riser for a low profile/half-length card and PIKE solution.

Intelligent System Fan Control II Function

To improve heat-dispersion and a stable computing environment, independent smart fans provide cooling for each area of the GPU and CPU, and a dual-fan design for GPU cards provides an extra thermal back-up solution.

1+1 Redundant PSU (1620W 80+ Platinum)

The ESC4000 G2 is equipped with a 1620W 80+ Platinum level redundant power supply with power efficiency up to 94% for energy savings, while the hot swappable design reduces power loss, improves power efficiency and saves more TCO for users.

Comprehensive RAID Solutions

The ESC4000 G2 supports the optional ASUS RAID PIKE upgrade kit. With only a PIKE riser card and a PIKE card, upgrade the server from a SATA to SAS based storage system by re-connecting the cable from the onboard SATA to a PIKE riser SAS port. Users now have flexible choices for multiple storage options!

Complete Server Remote Management Solution

By installing an optional Web GUI ASMB6-iKVM module, users can have full control of the server with an out-of-band server-based management (IPMI 2.0 standard) and 24x7 real-time remote monitor. Meanwhile, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, remote control, power control and asset management through a user-friendly interface. Users can utilize an effective tool with a user-friendly interface to control the servers remotely.

Cutting-edge Architecture

The ESC4000 G2 supports dual CPUs from the Intel Xeon E5-2600 processor family and with 16 DIMM sockets onboard, up to 512GBof four-channel DDR3 1600/1333 memory is supported. Combined, they provide for a high computing capability that can tackle the most difficult of tasks. Additionally, there are more PCI-E lanes with PCI-E Gen 3 support, which is suitable for systems that require high I/O connectivity and bandwidth and supports more PCI-E devices.

Features:

PIKE

PIKE

Scalable and Flexible Storage Options

1U (43.3mm) chassis is commonly used in data centers for space-saving's think, however, the expandability may be sacrificed in the slim form factor.


ASUS optional PIKE (Proprietary I/O Kit Expansion) meets the demand of direct SAS RAID upgrade on original servers, and what important is that it is connected through a unique slot to the server and will not occupy the slot 6 in 1U chassis, therefore no expansion capability will be given up.

The ASUS unique PIKE provides customers with multiple I/O solutions. It helps upgrade from SATA storage to SAS storage directly, support various RAID function, without any other hardware upgrade.

On the other hand, the PIKE kit also reduces the qualification resources for testing and inventory management efforts for customers.

Moreover, ASUS 6Gb/s PIKE cards are backward compatible with existing 1.5Gb/s SATA and 3Gb/s SAS/SATA products and infrastructure. Upgrading only the PIKE card immediately improves performance with larger capacity and better signaling, making this a great upgrade option for consumers.

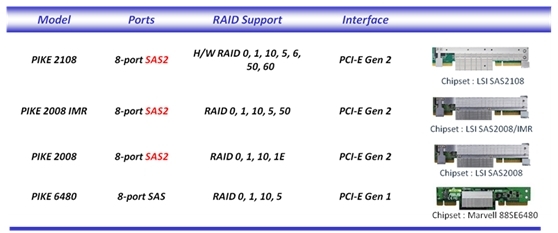

 Multiple PIKE solutions for Different Usage




Intel Platform
MB Model name
PIKE series
PIKE 6480
PIKE 2008
PIKE 2008/IMR**
PIKE 2108
5520 IOH
Z8PH-D12 SE/QDR*
V
V
V
V
Z8PH-D12/IFB*
V
V


Z8PE-D18
V
V
V
V
Z8PE-D12X
V
V
V
V
Z8PE-D12
V
V
V
V
5500 IOH
Z8NR-D12
V
V
V
V
Z8NH-D12*
V
V
V
V
Z8NA-D6
V
V
V
V
3420 PCH
P7F-E
V
V
V
V
C204 PCH
P8B-E/4L
V
V
V
V

Remote

Remote Management

Powerful,User-friendly and Mobile Tool for Server Management

ASWM Enterprise - ASMB6-IKVM - ASMB5-IKVM -  ASMB4-IKVM - ASWM2.0


ASWM Enterprise

ASWM Enterprise - System Web-based Management

The ASWM Enterprise is a proprietary server management solution that gives a vital distinction to our servers.

In server management, system stability is a major factor, with efficiency, cost-effectiveness, and convenience following close behind. To comply with this, we have created a reliable and user-friendly ASWM Enterprise monitoring tool. The ASWM Enterprise is a web-based interface that allows system administrators to conveniently manage computers either locally (from the same server), or remotely (using a web-browser).

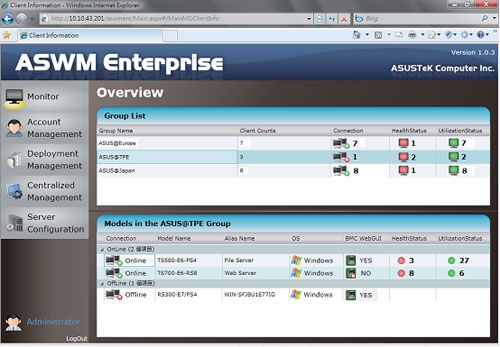

The main control panel of the ASWM Enterprise user interface



With its colorful, graphical, and informative interface, the ASWM Enterprise makes server management a delightful experience!

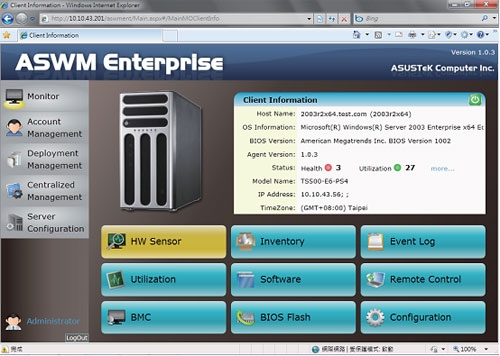

The Client Information of the selected computer is displayed as shown

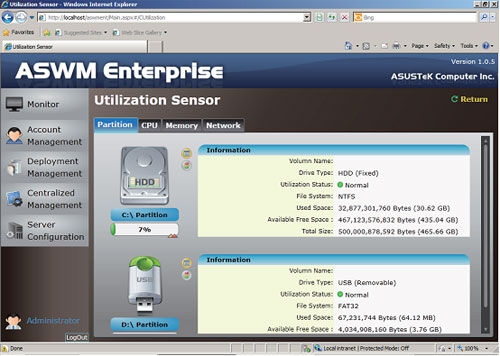

Utilization Sensor shows the utilization status of disk drives, CPU, Memory and Network. You can customized the threshold value of each sensor for sending notifications

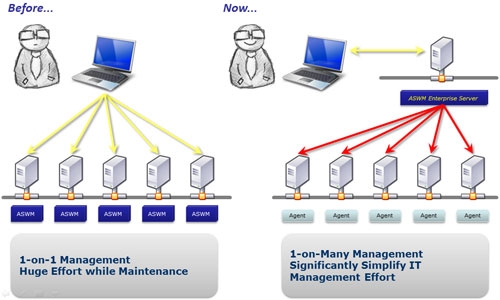

How ASWM Enterprise works

The ASWM Enterprise is composed of an agent that generally acts as a data collector, and a set of HTTP web pages that serve as the user interface (UI). The data collected by the agent, which are essential for the continuous monitoring operations performed by ASWM Enterprise, are displayed in the UI.

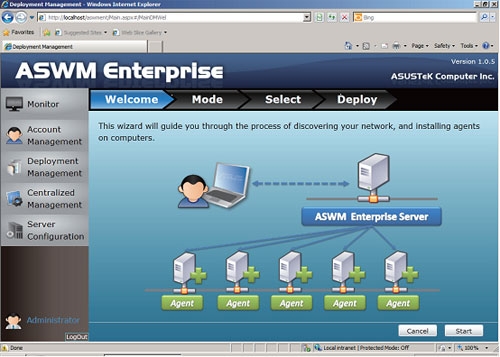

The wizard will guide you through the deployment process

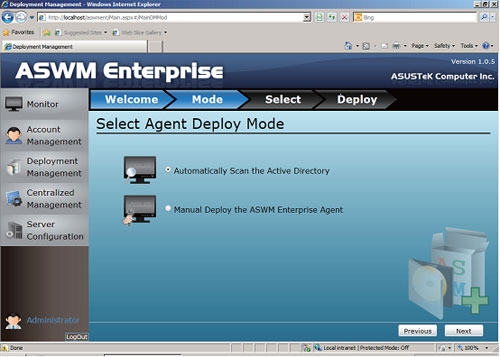

Select different Agent Deploy Mode





In the monitoring process, the agent basically keeps track of the hardware and software status of the system. The agent has sensors that monitor fan rotation speeds (in RPM), working voltages, motherboard and CPU temperatures, and the backplane (if present).

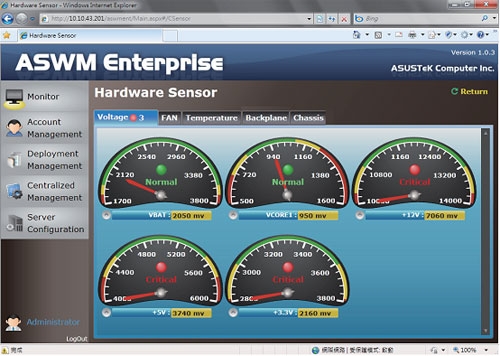

Real-time notification of each component with colored signals



In addition, the agent also monitors hard disk drives health status through the SMART (Self-Monitoring, Analysis, and Reporting Technology) feature, space utilization of a file system, CPU or system memory loading, and even the traffic status of a network device.

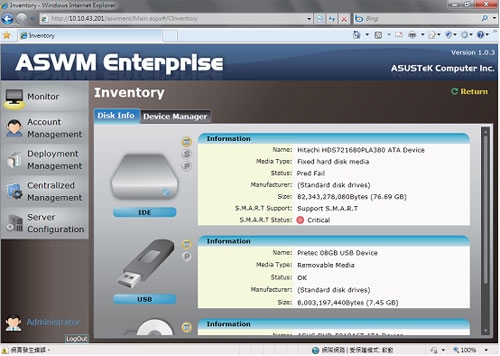

The disk information screen includes Name, Media Type, Status, Manufacturer, Size, S.M.A.R.T Support and S.M.A.R.T Status

The agent records the history of the detected status of all monitored hardware items. The status record includes the time of alert events (fan, voltage, or temperature), and the type of alert event (critical, warning, or normal).

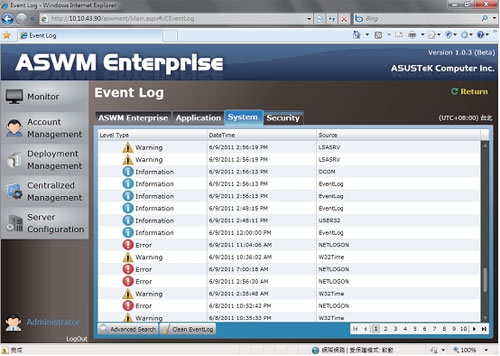

ASWM Enterprise automatically create and record all the significant events happening on your system in the event logs

You can also configure ASWM Enterprise to react to exceptional situations. For example, the administrator can be automatically notified by e-mail when a hard drive starts to malfunction or when a chassis intrusion is detected. In this way, ASWM Enterprise acts as an active guardian of the systems key components.

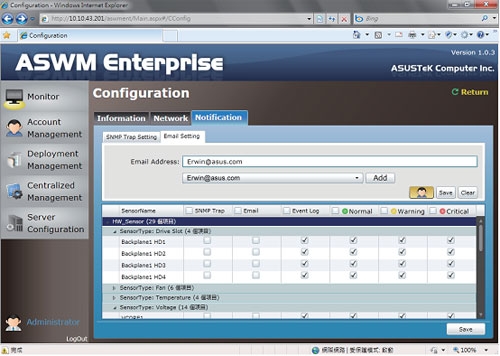

You can the select the notification methods of each sensor, Hardware and Utilization



Centralized management allows administrator BIOS Flash, remote control and power control on all servers simultaneously

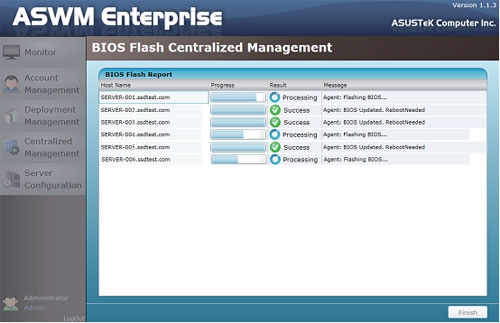

BIOS Flash and show all models progress

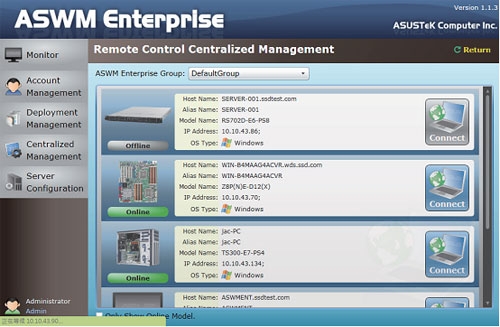

Click Connect button can remote control the model

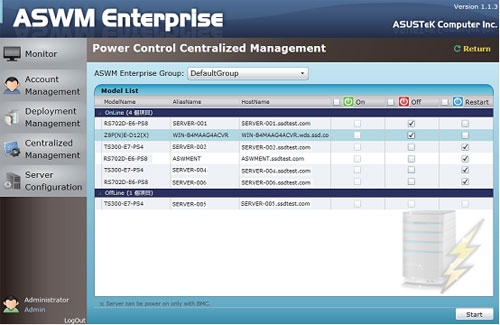

Power control on different servers simultaneously


ASMB6-iKVM

Romley only (Z9 Series)

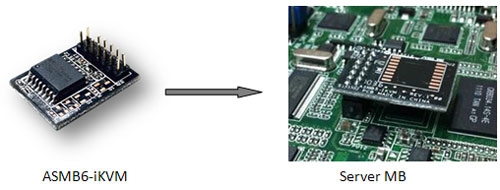

ASUS ASMB6-iKVM is an effective remote server management chip that is IPMI 2.0 compliant and provides the OS-independent and cross-platform interface for monitoring the server system such as temperature, voltage, and Fan status etc. MIS can be informed of the server working status from anywhere, anytime via real-time event notification. With simple steps, MIS is able to control servers by functions keys and remote server screen to accomplish KVM (Keyboard, Video, Mouse) over LAN, which is based on BIOS-level access and keeps working to provide around-the-clock remote monitor and diagnosis through GUI (Web-based Graphical User Interface) even the server OS is down.

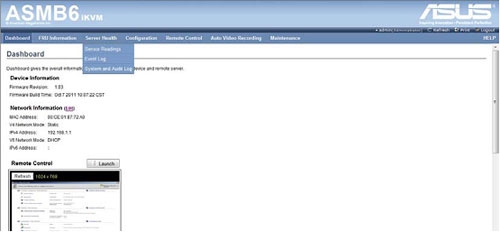

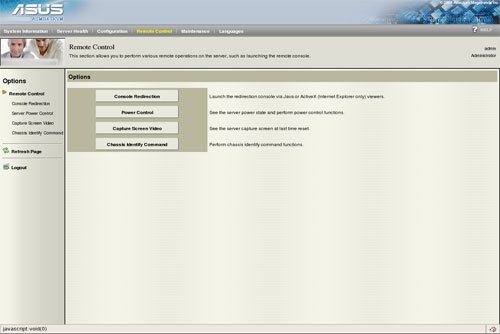

ASUS Web GUI

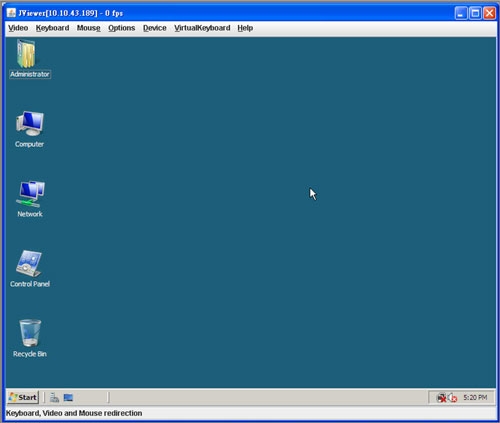

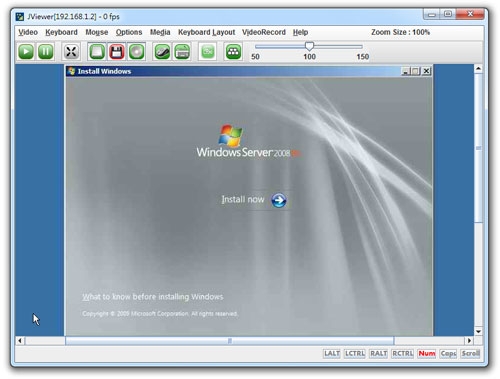

Remote Server Screen



The ASMB6-iKVM module offers advanced server management functions including remote OS installation, "remote power on/off/reset", "remote control", remote hardware health monitoring and system event log. Through the enhanced data encryption (in Advanced Encryption Standard), the internet security can be protected.

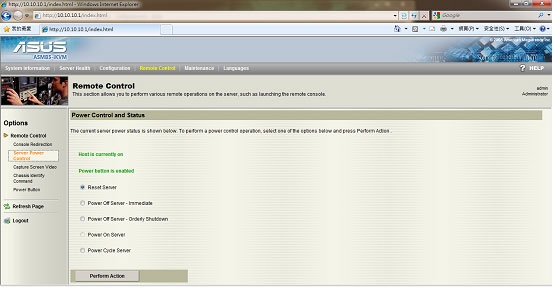

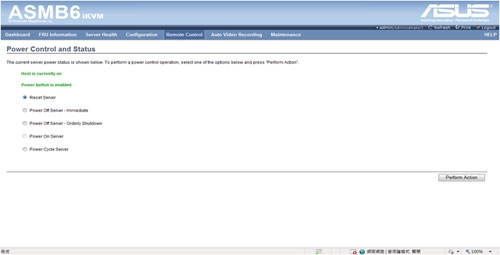

Remote Power Control



Multiple Virtual Media over LAN allows administrators to share the data saved in a local drive (simultaneous floppy, Hard disk or USB and CD or DVD redirection) to target servers, which provide a way for easy maintenance and simplify OS deployment process. At the same time, the KVM function also enables faster troubleshooting than before by fixing server problems from wherever you are and therefore reduces system downtime and operation cost.

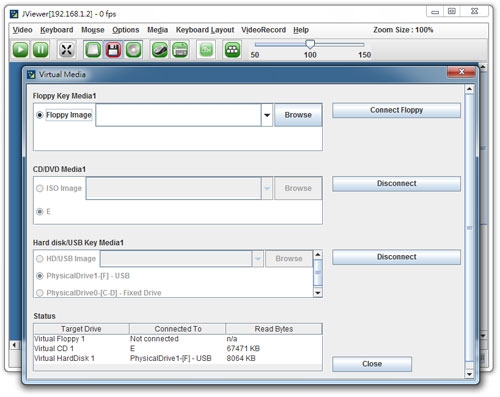

Multiple Virtual Media over LAN



Network bonding could support automatic failover witch switch over automatically to a redundant network when dedicated LAN failed.

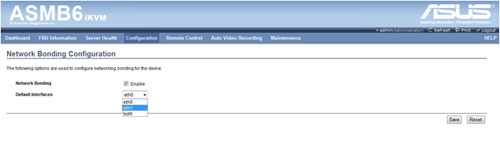

Network Bonding support



With ASMB6-iKVM, MIS has the most quick and efficient way to recover the system in service and improve the system's availability significantly by the complete remote management tools.

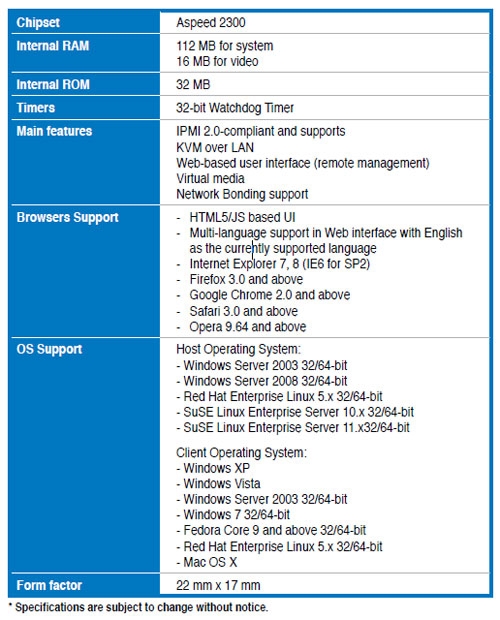

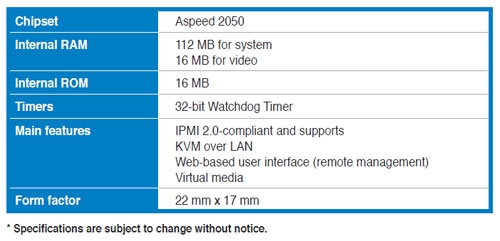

ASMB6-iKVM SPEC summary



ASMB5-iKVM

IPMI 2.0 Management Upgrade Kit with KVM (Keyboard, Video, Mouse) /SOL over LAN

Bromolow only (P8B-E/4L, P8B-M, RS300-E7, TS300-E7, RS100-E7, TS100-E7)

For support downloads, CLICK HERE.

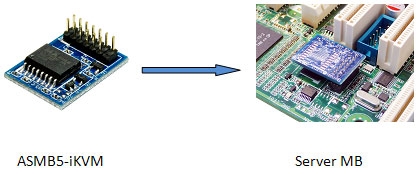

ASUS ASMB5-iKVM is an effective remote server management chip that is IPMI 2.0 compliant and provides the OS-independent and cross-platform interface for monitoring the server system such as temperature, voltage, and Fan status etc. MIS can be informed of the server working status from anywhere, anytime via real-time event notification.

With simple steps, MIS is able to control servers by functions keys and remote server screen to accomplish KVM (Keyboard, Video, Mouse) over LAN, which is based on BIOS-level access and keeps working to provide around-the-clock remote monitor and diagnosis through GUI (Web-based Graphical User Interface) even the server OS is down. Before watchdog resets, ASMB5-iKVM will captures the screen automatically.


Full Control Server Through ASUS Web GUI



Remote Server Screen


The ASMB5 iKVM module offers advanced server management functions including remote OS installation, "remote power on/off/reset", "remote control via SOL" (Serial-over-LAN), remote hardware health monitoring and system event log. Through the enhanced data encryption (in Advanced Encryption Standard), the internet security can be protected.

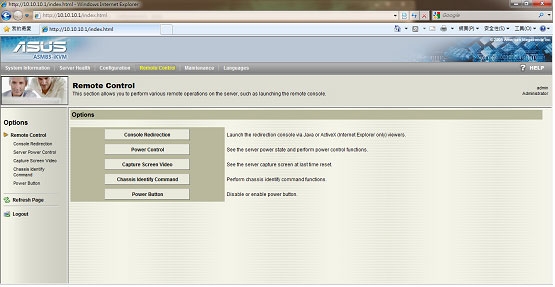

Remote Power Control


KVM over LAN allows administrators to share the date saved in a local drive (floppy, CD/DVD-ROM and flash device) to target servers, which provide a way for easy maintenance. At the same time, the KVM function also enables faster troubleshooting than before by fixing server problems from wherever you are and therefore reduces system downtime and operation cost. With ASMB5-iKVM, MIS has the most quick and efficient way to recover the system in service and improve the system's availability significantly by the complete remote management tools.

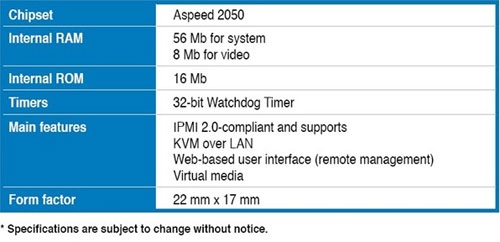

ASMB5-iKVM SPEC summary



ASMB4-iKVM
For support downloads, CLICK HERE.

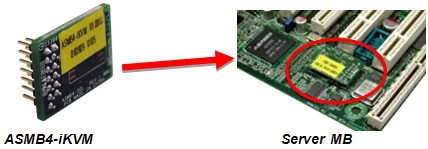

ASUS ASMB4-iKVM is an effective remote server management chip that is IPMI 2.0 compliant and provides the OS-independent and cross-platform interface for monitoring the server system such as temperature, voltage, and Fan status etc. MIS can be informed of the server working status from anywhere, anytime via real-time event notification.

With simple steps, MIS is able to control servers by functions keys and remote server screen to accomplish KVM (Keyboard, Video, Mouse) over LAN, which is based on BIOS-level access and keeps working to provide around-the-clock remote monitor and diagnosis through GUI (Web-based Graphical User Interface) even the server OS is down. Before watchdog resets, ASMB4-iKVM will captures the screen automatically.

Full Control Server Through ASUS Web GUI



Remote Server Screen


The ASMB4 iKVM module offers advanced server management functions including remote OS installation, "remote power on/off/reset", "remote control via SOL" (Serial-over-LAN), remote hardware health monitoring and system event log. Through the enhanced data encryption (in Advanced Encryption Standard), the internet security can be protected.

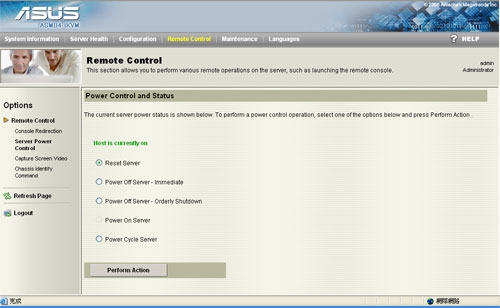

Remote Power Control


KVM over LAN allows administrators to share the date saved in a local drive (floppy, CD/DVD-ROM and flash device) to target servers, which provide a way for easy maintenance. At the same time, the KVM function also enables faster troubleshooting than before by fixing server problems from wherever you are and therefore reduces system downtime and operation cost.

With ASMB4-iKVM, MIS has the most quick and efficient way to recover the system in service and improve the system's availability significantly by the complete remote management tools.


ASMB4-iKVM/SOL SPEC summary


ASWM 2.0
Powerful, User Friendly and Mobile Tool for Server Management

ASWM (ASUS System Web-based Management) is ASUS' self-developed software, which allows MIS engineers to monitor, manage and upgrade server systems conveniently and remotely, is now available to provide a powerful tool for system managers.

Remote Web-Based Control
ASWM enables users to monitor system status from remote locations through the internet. ASWM provides a user-friendly interface by utilizing pictures and icons to help system manager identify system status easily.

Warning Functions
When system event occurs, ASWM will send e-mail or mobile phone message to preprogrammed recipients.

Fast System Diagnosis

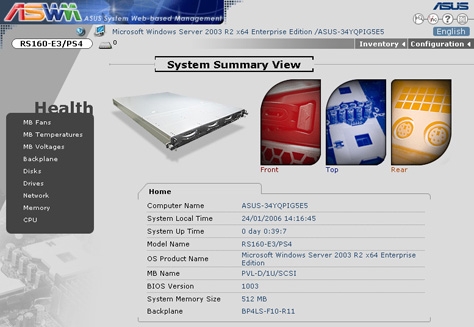

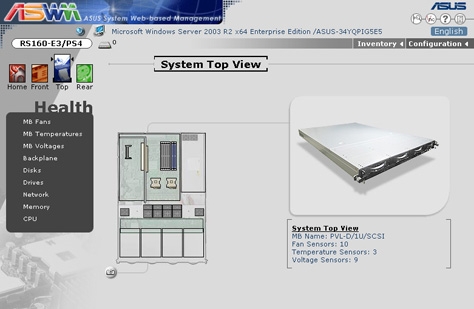

The System View feature of ASWM consists of a computer generated image of the server, clearly illustrating system operation on every major component from the front, rear and top of the system. When system event occurs, a signal appears on the server image next to the component that causes the event.

Clear Status Information
The Health Information feature displays key system status such as temperature, component voltages, fan speed and capacity.

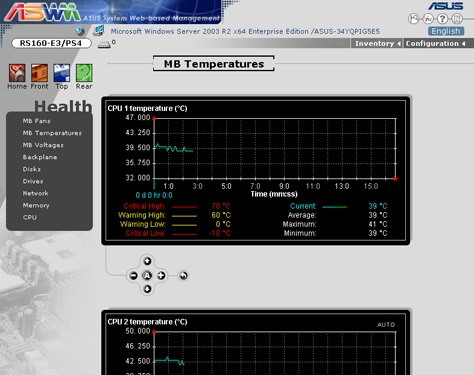

Automatic Update Real Time Chart
ASWM automatically updates system status every 5 seconds by setting a real-time chart for CPU operations, memory capacity, motherboard temperature etc. This feature provides the most up-to-date information and allows system managers to identify system events quickly.

OS Support
ASWM supports Windows XP, Windows Vista, Windows Server 2003, Red Hat Enterprise Linux 3.0/4.0.


Specifications

Processor / System Bus 2 x Socket 2011

QPI 6.4 / 7.2 / 8.0 GT/s

*Refer to www.asus.com for CPU Support list
Core Logic Intel C602-A PCH
Memory Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM/Maximum up to 128GB UDIMM
Memory Type :
Quad Channel, DDR3, 800/1066/1333/1600, RDIMM
Quad Channel, DDR3, 1066/1333, UDIMM
Quad Channel, DDR3, 1066/1333, LRDIMM
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB, 32GB RDIMM
1GB, 2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM
Expansion Slots Total: 9
Full-length/Full-height
8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link) (Slot CPU1_PCIE2, CPU1_PCIE4, CPU2_PCIE1, CPU2_PCIE3 auto switch to x8 link if slot CPU1_PCIE1, CPU1_PCIE3, CPU2_PCIE2, CPU2_PCIE4 is occupied)

Half-lenth/Low-profile
1 * PCI-E 3.0 x16 (Gen3 x8 Link) (PIKE SAS Card for Storage Enhancement)
Storage SATA Controller :
Intel C602-A AHCI
2 x SATA3 6Gb/s ports
2 x SATA2 3Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SATA Controller :
Intel C602-A SCU
4 x SATA2 3Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
HDD Bays 8 * Hot-swap 3.5" HDD Bays
Auxiliary Storage FDD/CD/DVD 1 * Slim-type Optical Drive Bay
Options: No Device / DVD-RW
(DVD-RW default for North America)
Networking 2 x Intel 82574L + 1 x Mgmt LAN
Graphic Aspeed AST2300 with 16MB VRAM
On Board I/O 1 x External Serial Port
3 x RJ-45 ports (One for ASMB6-iKVM)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB Port
1 x VGA port
OS Support CentOS 5.7/6.2 32/64-bit
Windows Server 2008 R2
Windows Server 2008 R2 Enterprise
Windows Server 2008 Enterprise 32/64-bit
RedHat Enterprise Linux AS5.7/6.2 32/64-bit
SuSE Linux Enterprise Server 11.2 32/64-bit
VMWare ESX4.1/ESXi4.1

*(Subject to change without any notice)
Management Solution ASWM Enterprise
default 1 x ASMB6-iKVM for KVM-over-Internet
Safety Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class A)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
Dimensions 750mm * 444mm * 87mm
Form Factor 2U
Weight 19kg
Power Supply 1+1 Redundant 1620W 80PLUS Platinum Power Supply;
1620W: 180-240Vac, 10.5-8A
(following different configuration by region as below)
Environment Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x ESC4000 G2 User's Guide
1 x Bag of Screws
1 x AC Power Cable
1 x ESC4000 G2 Support DVD
1 X ASWM Enterprise DVD
1 x ASMB6 Manual
1 x ASMB6 DVD
Optional Items Second 16200W Redundant Power Supply Module (04G180001700)
Heatsink for CPU 135W upgrade kit (13071-00090600)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)

Part List

MB ASUS Z9PG-D16 Series Server board
HDD Backplane 1 x SAS/SATA Backplane (BP8LX-R21B) (60SC0180-SC0A02)
Front Panel Board 1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05)
Power Distribution Board 1 x Redundant Power Supply Power Distribution Board (PDB-R21B-G2) (61-C1SF40-01)
Riser Card Compatbile SAS Controller:
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)
CPU Heatsink/ Cooler 2 x CPU Heatsink (13071-00090600)
Power Supply Unit 1 x 1620W Redundant Power Supply (04G180001700)
(2 x Power Supply Module default for North America)
HDD Tray 8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
Fan 7 x System Fans (80mm x 38mm) (13G074187000)
Air Duct/Mylar 1 x MB Air Duct Mylar (13GS1U00L030-1;13GS1U00T010-1)
4 x NVIDIA Tesla M20x0 series GPU Air Duct (13GS1K0AM050-1)
4 x NVIDIA Tesla K10/K20 series GPU Air Duct (13GS1U0AM020-1)
4 x Intel Xeon Phi series Co-processor Air Duct (13GS1U0AM050-1)
Optical Drive 1 x Slim DVD-RW (17G14113400N)
(DVD-RW default for North America)
Mounting Rails 1 x Friction rail kit (13GS190AM042-1)
Cable 1 x PMBUS CABLE 5P TO 5P L:140MM (14G000611201)
1 x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303)
1 x USB CABLE 2*5P TO 2*4P,L=550MM (14G000509210)
4 x POWER CABLE 8P TO 6+2P,L=470MM (14001-00250000)(for GPU/Co-processor cards)
2 x W.H CABLE 10P TO 8P,L=1050MM (14G030028230)
1 x W.H CABLE 6P TO 6P,L=900MM (14G03001120E)
1 x SATA CABLE 7P*2 TO 7P*2,L850MM (14G000130810)
3 x SATA CABLE 7P*2 TO 7P*2,L=1M (14G000130811)
1 x FPB CBL 2*8 TO 2*10+1*6,750MM (14G030042840)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year RTB

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 1 | TM: 0 | LM: 1 | TY: 2 | T: 676

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
� Techbuy Pty Ltd 2000 - 2026 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
