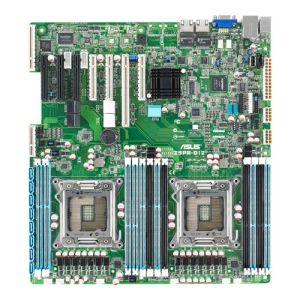

With the CPU and memory in front parallel design, the Z9PR-D12 provides excellent thermal efficiency by smooth air ventilation, making it rack optimized and suitable for data center.
7 Expansion Slots Support
The Z9PR-D12 provides high expandability with 7 expansion slots, including 6 PCI-E G3 x8 slots (x8 link) and 1 x PCI-E G3 x16 slot (x16 link, switch to x8 link automatically if the slot 5 is occupied), meeting the demand of future expansion. In addition, there is also a propriety slot for ASUS PIKE SAS RAID Upgrade kit.
Cutting-edge Architecture
The Z9PR-D12 supports new generation Intel Xeon processor E5-2600 product family. With 12 DIMM sockets on board, the serverboard supports DDR3 1333/1600 RDIMM/UDIMM up to 384GB memory capacity, providing high computing capability. Additionally, there are more PCI-E lanes with PCI-E gen 3 support, which is suitable for the systems that require high I/O connectivity and bandwidth and supports more PCI-E devices.
Complete Storage Solution Supported
The Z9PR-D12 is built with SATA solutions from C602 PCH, which supports the latest SATA 6G technology. While the ASUS optional PIKE providing slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved directly via a unique slotwithout sacrificing expansion capability. The ASUS PIKE further provides customers with multiple I/O solutions and RAID functions; and is cost effective for customers.
Onboard ASMB6 for Easy Troubleshooting
The ASMB6 enables dashboard and monitor system health, remote power on /off and control, virtual media over LAN and network bonding support. In addition, the ASMB6 function is based on BIOS-level access; thus even if the server OS is down, the KVM module is still able to provide around-the-clock remote monitor and diagnosis through a user-friendly GUI (Web-based Graphical User Interface).
Specifications
| Processor / System Bus |
2 x Socket 2011
Intel Xeon processor E5-2600 product family
QPI 6.4 / 7.2 / 8.0 GT/s |
| Core Logic |
Intel C602-A PCH |
| Memory |
Total Slots : 12 (4-channel per CPU, 8 DIMM for CPU1, 4 DIMM for CPU2)
Capacity : Maximum up to 384GB RDIMM
Memory Type :
DDR3, 1066/1333/1600, RDIMM
DDR3, 1066/1333, UDIMM
DDR3, 1066/1333, LRDIMM
Memory Size :
2GB, 4GB, 8GB, 16GB RDIMM
2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM |
| Expansion Slots |
Total Slot : 7
Slot Location 1 : PCI-E x8 (Gen3 X8 Link)
Slot Location 2 : PCI-E x8 (Gen3 X8 Link)
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x8 (Gen3 X8 Link)
Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
Slot Location 7 : PCI-E x8 (Gen3 X8 Link)
Additional Slot 1 : PIKE Slot for Stroage expansion
Follow SSI Location# |
| Form Factor |
EEB (12"x13") |
| ASUS Features |
7 Expansion Slots Support
Rack Optimized (Dedicated for Rack)
ASWM Enterprise |
| Storage |
SATA Controller :
Intel C602-A AHCI
4 x SATA2 3Gb/s ports
2 x SATA3 6Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SATA Controller :
Intel C602-A SCU
4 x SATA2 3Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) |
| Networking |
2 x Intel 82574L + 1 x Mgmt LAN |
| Graphic |
Aspeed AST2300 with 16MB VRAM |
| On Board I/O |
1 x TPM header
1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector
1 x Management Connector , Onboard socket for management card
2 x USB pin header , Up to 4 Devices
1 x Internal A Type USB Port
8 x Fan Header , 4pin
1 x Chassis Intruder
1 x Serial Port Header
1 x SMBus |
| Back I/O Ports |
2 x External USB Port
1 x VGA Port
2 * GbE LAN + 1 * Mgmt LAN
1 x PS/2,1 KB/mouse |
| Management Solution |
ASWM Enterprise
ASMB6-iKVM for KVM-over-Internet |
| EMI |
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024) |
| Accessories |
Gift Box Pack :
1 x User's Guide
1 x ASUS Mainboard Support CD
1 x I/O Shield
1 x ASWM Enterprise SDVD
10 x SATA Data Cables
1 x ASMB6-iKVM Support CD
1 x ASMB6-iKVM User Guide
1 x USB to SATA DOM Power cable
Bulk Pack :
1 x User's Guide
1 x ASUS Mainboard Support CD
1 x I/O Shield
1 x ASWM Enterprise SDVD
1 x ASMB6-iKVM Support CD
1 x ASMB6-iKVM User Guide |
| Product SKUs |
Standard Gift Box Pack with ASMB6-ikvm
Standard Bulk Pack with ASMB6-ikvm |
| Monitoring |
CPU Temperature
Fan RPM |
| Note |
* Refer to ASUS Server AVL for latest update.
** Specifications are subject to change without notice. |
