All stock codes associated to this product
V322, 13NECV322, 13NEC-V322

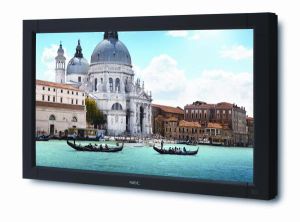

MultiSync V322
Size: 32inch
Contrast: 3000:1
Power Consumption [W]: 88
Aspect Ratio: 16:9
Panel Technology: S-PVA
Brightness [cd/m]: 450
Resolution: 1366 x 768
Overview
MultiSync V322 is the first NEC 32" public display to feature an option slot. The STv2 slot (OPS compatible) allows for the integration of various PC, HDSDI and other solutions extending the connectivity and flexibility beyond industry standards for 32" public displays. V322 is also the first public display on the market boasting SNMP supported LAN and alarm emails in the unlikely event the display experiences any problems.
Ideal for any cost efficient retail signage and applications such as baggage belt, info screens and check-in counter displays.
- Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.
- Colour Matching - the display can be hardware calibrated to display a certain colour temperature or brightness to match other displays in the same installation.
- DICOM support- for medical applications.
- Special Characteristics - Advanced fan control; Copy display settings through RS232; DICOM support; Hardware colour calibration possible; Input name adjustment; Matrix memory; Optional external programmable ambient light sensor; OSD rotation for portrait mode; PIN as theft protection; Rapid input switching; Scheduler; Screen saver functions; TileMatrix (10 x 10); User input priority definition; Various picture in picture options
Specifications:
| Panel Technology |
S-PVA with CCFL backlights |
| Active Screen Area (W x H) [mm] |
697.7 x 392.3 |
| Screen Size [inch/cm] |
31.5 / 80 |
| Aspect Ratio |
16:9 |
| Brightness (shipping) [cd/m] |
340, (450 max) |
| Contrast Ratio (typ.) |
3000:1 |
| Viewing Angle [] |
178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Response Time (typ.) [ms] |
8 (grey-to-grey) |
| Panel Refresh Rate [Hz] |
60
|
SYNCHRONISATION RATE
| Horizontal Frequency [kHz] |
31.5 - 91.1 (analog and digital) |
| Vertical Frequency [Hz] |
50 - 85 |
RESOLUTION
| Native Resolution |
1366 x 768 at 60 Hz |
| Supported on digital and analogue inputs (PC) |
1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1360 x 768; 1366 x 786; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 576; 800 x 600 |
| Supported on digital inputs (Video) |
1280 x 720p (50)16:9; 1920 x 1080i (59.94/60)16:9; 1920 x 1080p (23.97/24)16:9; 1920 x 1080p (25)16:9; 1920 x 1080p (29.97/30)16:9; 1920 x 1080p (50)16:9; 1920 x 1080p (59.94/60)16:9; 720 x 480p (59.94/60)16:9; 720 x 576p (50)16:9 |
CONNECTIVITY
| Input Video Analogue |
D-Sub15 (PC RGB, Component, S-Video, Composite) Composite (BNC) |
| Input Video Digital |
1 x DVI-D (with HDCP); 1 x HDMI 1.3 (with HDCP); 1 x DisplayPort (with HDCP) |
| Input Audio Analogue |
1 x 3,5 mm jack |
| Input Audio Digital |
Display Port ; 1x HDMI |
| Input Control |
LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
| Output Video Digital |
1 x DVI-D (with HDCP) |
| Output Audio Analogue |
3,5mm jack |
| Output Control |
remote control wire (3,5mm jack); RS232 |
| Remote Control |
LAN with SNMP; RS-232C (9-pin D-sub) Input and Output; Remote Control IR (internal/external (optional) sensor) |
OPTION SLOT
| Slot Technology |
STv2 (compatible with Intel / NEC OPS standard) |
| Inrush Current [A] |
max. 10 |
| Power Consumption [W] |
max. 61 |
| Voltage / Current [V/A] |
16/4 |
ELECTRICAL
| Power Consumption on Mode [W] |
88 shipping; 190 (max.) |
| Power Savings Mode [W] |
< 0.5 (ECO Standby); < 1 |
| Power Management |
VESA DPMS |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [C] |
+5 to +40 |
| Operating Humidity [%] |
20 to 80 |
| Storage Humidity [%] |
10 to 90 |
| Storage Temperature [C] |
-20 to +60 |
MECHANICAL
| Dimensions (W x H x D) [mm] |
Without stand: 786.8 x 476.2 x 93.5 |
| Weight [kg] |
Without stand: 12.1 |
| Bezel Width [mm] |
43.2 (left and right); 40.3 (top and bottom) |
| VESA Mounting [mm] |
200 x 200 (FDMI); 4 holes; M6 |
AVAILABLE OPTIONS
| Option Slot |
Built-in PC; HD-SDI board |
ADDITIONAL FEATURES
| Colour Versions |
Black Front Bezel, Black Back Cabinet |
| Safety and Ergonomics |
CE; TV GS; C-tick; Energy Star 5.1; FCC Class B; UL/C-UL or CSA; PSB; VCCI; RoHS |
| Plug and Play |
VESA DDC2Bi |
| Audio |
Integrated Speakers (8 W + 8 W) |
| Shipping Content |
Display; Power Cable; VGA cable; Free LAN control software (download); Remote Control |
| Warranty |
3 years warranty incl. backlight |
