GTX680-DC2-4GD5 | ASUS GeForce GTX680 - 4GB GDDR5 - (1058MHz, 6008MHz)

Brisbane - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Video Cards -> GeForce PCI-Ex 6xx Series -> ASUS

ASUS GeForce GTX680 - 4GB GDDR5 - (1058MHz, 6008MHz)
256-bit, 2xDVI, 1xDisplayPort, 1xHDMI, PCi-Ex16 v3.0, Fansink

No Longer Available

Part Number:

214540

(?) Brand:

ASUS Web Site

Manuf No:

GTX680-DC2-4GD5
GTX680DC24GD5

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

GTX680DC24GD5, GTX680-DC2-4GD5, ENGTX680DC24GD5, ENGTX680-DC2-4GD5

GTX680-DC2-4GD5

ASUS GTX 680 DirectCU II: coolest and quietest 28nm card

Overview

Double the reference video memory at 4GB takes your gaming to new levels of smooth.
All new DirectCU thermal design utilizes five all-copper heatpipes and 20% bigger dissipation area, achieving 20% cooler and 14dB quieter performance than reference
Acclaimed DIGI+ VRM with 10-phase Super Alloy Power technology delivers precise digital power and enhanced overclocking headroom.
GPU Tweak utility helps you modify and tune boost clock, power target , and fan performance via an intuitive interface

Features

Deploy the Cool. Reign in Silence.

ASUS Exclusive Innovation

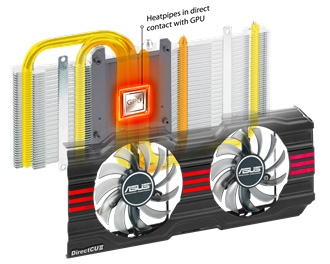

DirectCU II

DirectCU thermal design utilizes direct contact copper heatpipes so heat is dissipated efficiently, delivering a 20% cooler and vastly quieter performance than reference.

DIGI+ VRM with Super Alloy Power

Acclaimed DIGI+ VRM has been applied via a massive power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference.

GPU Tweak

Detailed specs and actual card status with GPU-Z
Monitoring widget provides real-time and detailed multi-parameter info
Automatically check and update drivers and BIOS versions

Gigantic 4GB GDDR5 Memory

On-board memory for the best gaming experience & the best resolution

Graphics GPU Features

NVIDIA® Adaptive V-Sync

Get more than just faster frame rates. Get ultra-smooth gaming every time with NVIDIA gaming innovations - Adaptive Vertical Sync. This technology dynamically adjusts Vsync to current frame rates for maximum playability.

SLI Support

Multi-GPU technology for extreme performance

PCI Express 3.0

Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU-CPU communication.

NVIDIA® GPU Boost

Push the breathtaking performance of the GeForce GTX graphics cards to new levels with NVIDIA GPU Boost. This technology dynamically maximizes clock speeds to bring out the best performance in every game.

NVIDIA® PhysX® ready

Play games with advanced effects such as blazing explosions and lifelike characters with 10X faster switching between graphics and physics processing, enabling more complex effects to be rendered in real time.

NVIDIA® 3D Vision™ Surround Ready

Transform hunreds of PC games into stereoscopic 3D and enjoy immersive full HD 3D gaming across three displays at an incredible 5760x1080 resolution.

Microsoft DirectX 11.1 API support

Brings new levels of visual realism to gaming on the PC and get top-notch performance

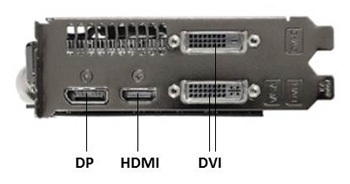

I/O Ports Highlight

Specifications:

Graphics Engine

NVIDIA GeForce GTX 680

Bus Standard

PCI Express 3.0

Video Memory

GDDR5 4GB

Engine Clock

GPU Boost Clock : 1058 MHz
GPU Base Clock : 1006 MHz

CUDA Core

1536

Memory Clock

6008 MHz ( 1502 MHz GDDR5 )

Memory Interface

256-bit

Resolution

DVI Max Resolution : 2560x1600

Interface

DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes

Accessories

1 x Power cable

Power Consumption

up to 225W2 additional 6 pin PCIe power required

Software

ASUS GPU Tweak & Driver

ASUS Features

DirectCU Series
Super Alloy Power

Dimensions

10.7 " x 5.4 " x 1.7 " Inch

Note

To have the best cooling performance, ASUS GTX680-DC2-4GD5 extends the fansink to 2 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system!

Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit https://www.geforce.com/

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year RTB

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
