All stock codes associated to this product
HD65702GD3L, HD6570-2GD3-L, EAH65702GD3L, EAH6570-2GD3-L
HD6570-2GD3-L
ASUS HD6570 low profile graphics card with DirectX 11 and HDMI support
- Premium alloys in power delivery components defeat heat for cards that run 15% faster and last 2.5 times longer than reference.
- Resists dust and particles for 25% longer graphics card longevity.
- GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface.
Overview
Graphics galore for everyone!
ASUS Exclusive Innovation
Super Alloy Power
Enhanced durability and cooling
Exclusively-formulated alloy components boost performance by reducing power loss, enhancing durability, and achieving cooler operation. Choke concrete cores eliminate buzzing sound under full load while capacitors assure a 50,000-hour lifespan: equivalent to 2.5 times longer than traditional capacitors.
Dust-Proof Fan
25% longer graphics card lifespan
Unique fan design dissipates heat efficiently while extending a graphic card’s lifespan by 25%* through increased dust and particle resistance.
GPU Tweak
Real-time intuitive graphics tuning
- Shows detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time detailed multi-parameter info
- 2D/3D switcher locks cards in 3D mode for higher benchmarks
- Automatically checks and updates BIOS versions
2GB DDR3 Memory
On-board memory for the best gaming experience & the best resolution.
Graphics GPU Features
Powered by AMD Radeon™ HD 6570
AMD HD3D™ Technology
Optimize stereoscopic 3D gaming and movie-watching entertainment.
Microsoft® Windows® 8 Ready
Enable PC users to enjoy an advanced computing experience and to do more with their PC
Software CrossFire X Support
Multi-GPU technology for extreme performance
Microsoft® DirectX® 11 Support
Bring new levels of visual realism to gaming on the PC and get top-notch performance.

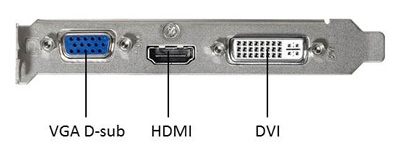

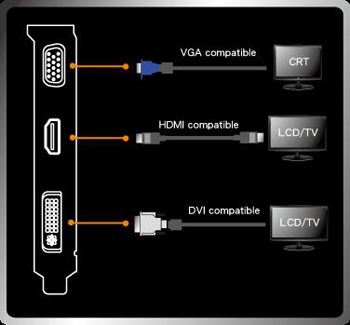

I/O Ports Highlight
Specifications:
Graphics Engine
AMD Radeon HD 6570
Bus Standard
PCI Express 2.1
Video Memory
DDR3 2GB
Engine Clock
650 MHz
Memory Clock
1200 MHz ( 600 MHz DDR3 )
Memory Interface
128-bit
Resolution
DVI Max Resolution : 2560x1600
Interface
D-Sub Output : Yes x 1
DVI Output : Yes x 1 (DVI-D)
HDMI Output : Yes x 1
HDCP Support : Yes
Power Consumption
up to 75Wno additional PCIe power required
Software
ASUS Utilities & Driver
ASUS Features
Fan Sink
Super Alloy Power
Dimensions
6.6 " x 4.6 " Inch
16.7 x 11.6 Centimeter
Note
Specifications are subject to change without notice.
PCB color and bundled software versions are change without notice.
Brand and product names mentioned are trademarks of their respective company.
