All stock codes associated to this product
C8HM70I/HDMI, C8HM70-I/HDMI, C8HM70IHDMI, C8HM70-I-HDMI

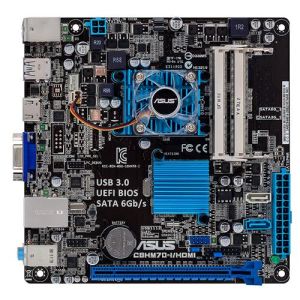

C8HM70-I/HDMI
USB 3.0, SATA6Gb/s and Windows 8 support on Intel HM70 chipset MINI ITX platform
Overview
- Intel Celeron 847 on board
- Intel HM70 chipset
- USB3.0 - The latest data transfer technology
- SATA 6Gb/s - Native Ports, Native Speed and Accessibility
- Windows 8 Ready Assured Compatibility
CPU, Chipset and Graphics features
Celeron 847
This motherboard supports the Intel Celeron 847 which is an Ultra Low Voltage (ULV) dual core processor for entry-level PC, with memory and PCI Express controllers integrated to support 2-channel DDR3 memory.
USB 3.0 Support
Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10x faster and is also backward compatible with USB 2.0 components
HM70
Mobile Intel® HM70 Express Chipset providing integrated USB 3.0 on a single–chip Intel® microarchitecture.Its high-speed storage interface supporting up to 6 Gb/s transfer rate for improved data access. And it is Windows 8 support.
Dual-Channel DDR3 1333/1066 support
The motherboard supports DDR3 memory that features data transfer rates of 1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.

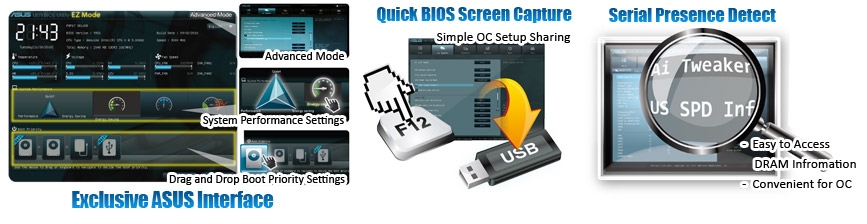

ASUS UEFI BIOS (EZ Mode)
Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.
Supports Hard Drives over 2.2TB
ASUS UEFI BIOS natively supports hard drives larger than 2.2TB in 64-bit, with full storage space utilization helping deliver far more exciting computing than traditional BIOS versions.
Exclusive ASUS Interface
EZ Mode - gives easy access to selectable, optimized system modes, clear system info display and drag and drop boot prioritizing Advanced Mode - for experienced performance enthusiasts that demand intricate system settings
AI Suite II
With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
EZ-Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
8-channel high definition audio
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks.
GreenASUS and ErP Ready
The motherboard is European Unions Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
Specifications:
CPU
Intel® Celeron® Processor 847 (2M Cache, 1.10 GHz)
Chipset
Intel HM70
Memory
2 x SO-DIMM, Max. 16GB, DDR3 1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Expansion Slots
1 x PCIe 2.0 x16
Storage
1 x SATA 3Gb/s port(s), blue
1 x SATA 6Gb/s port(s), gray
LAN
Realtek 8111F-VB-CG
Audio
Realtek ALC887-VD 8-Channel High Definition Audio CODEC
USB Ports
Built-in Controller :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
Built-in Controller :
2 x USB 3.0 port(s)
Special Features
ASUS Exclusive Features :
- AI Suite II
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
Accessories
User's manual
I/O Shield
1 x SATA 3Gb/s cable(s)
1 x SATA 6Gb/s cable(s)
BIOS
64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0,SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
