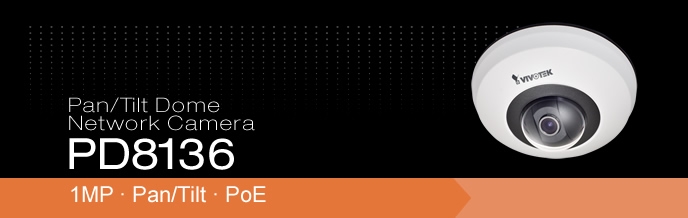

Vivotek PD8136 Pan/Tilt Dome Network Camera - 1-Megapixel CMOS Sensor, Real-Time H.264, MPEG-4 & MJPEG Compression (Triple Codec), 30fps @ 1280x800, Built-In MicroSD/SDHC Card Slot - White

IMG 1 of 1
No Longer Available
Part Number:
215514
(?) Brand:
Vivotek
Manuf No:
PD8136
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Date Added:
1/2/2013
Details Files Finance Images & Video
All stock codes associated to this product
PD8136, VTPD8136, VT-PD8136

1MP Pan/Tilt PoE Pan/Tilt Dome Network Camera PD8136

Overview

VIVOTEK PD8136 is equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps. Users need look no further for an all-in-one camera capable of capturing high quality, high resolution video with pan & tilt control. With a stylish design and small footprint to fit most installation environments, it is the best choice for indoor surveillance applications such as retail stores, offices, or homes.

With flexible 360-degree pan and 80-degree tilt, PD8136 gives users comprehensive control over a monitored site. The PD8136 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. In addition, PD8136 is integrated with Power over Ethernet functionality, making installation easier and more cost-efficient. Together with the bundled, multi-lingual 32-channel recording software ST7501, users can set up an easy-to-use IP surveillance system with ease.

Features

  • 1-Megapixel CMOS Sensor
  • 360 Pan & 80 Tilt for Wide Area Monitoring
  • Compact, Elegant Design
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • 30 fps @ 1280x800
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • Built-in IEEE 802.3af Compliant PoE

Specifications:

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 16 MB
RAM
  • 128 MB
Camera Features
Image sensor
  • 1/4" Progressive CMOS
Maximum Resolution
  • 1280x800
Lens Type
  • Fixed-focal
Focal Length
  • f = 3.6 mm
Aperture
  • F1.8
Field of View
  • 56 (horizontal)
  • 41 (vertical)
  • 71 (diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
Minimum Illumination
  • 0.47 Lux, 50 IRE
Pan range
  • 360 (-180 ~ + 180)
Tilt range
  • 80 (10 ~ 91)
Pan speed
  • 101 / sec.
Tilt speed
  • 101 / sec.
Pan / Tilt / Zoom
  • ePTZ:
  • 16x digital zoom (4x on IE plug-in, 4x built-in)
On-board Storage
  • MicroSD/SDHC card slot
Video
Compression
  • H.264, MJPEG & MPEG-4
Maximum Frame Rate
  • H.264:
    • 30 fps at 1280x800
  • MPEG-4:
    • 30 fps at 1280x800
  • MPEG-4:
    • 30 fps at 1280x800
Maximum Streams
  • 2 simultaneous streams
S/N Ratio
  • Above 50 dB
Video Streaming
  • Adjustable resolution, quality and bitrate
    • Configurable video cropping for bandwidth saving
Image Settings
  • Adjustable image size, quality and bit rate
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings
Audio
Audio Capability
  • Audio input
Compression
  • G.711
Interface
  • Built-in microphone
Effective Range
  • 5 meters
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF
  • Supported, specification available at www.onvif.org
Interface
  • 10Base-T/100 BaseTX Ethernet (RJ-45)
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
PD8136
General
LED Indicator
  • System power and status indicator
Power input
  • IEEE 802.3af PoE Class 2
Power consumption
  • Max. 6.24 W
Dimensions
  • : 120 mm x 55 mm
Weight
  • Net: 180 g
Safety Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature
  • 0C ~ 45C (32F ~ 113F)
Warranty
  • 24 months

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
