Brickcom CB-300Ap Cube Network Camera - 3.0 Megapixel, HDTV

CB-300Ap



3 Megapixel Cube Network Camera



• Most Intelligent, Compact and Affordable 3M Camera
• HDTV Quality (Full HD 1080p @ 30fps Streaming)
• Unique Design for Low Lux Application (1/2.5 Sensor)
• Intelligent Multi-Profile Sensor Management for Different Environment
• Support 3G/ 4G (WiMAX/LTE) Wireless Connectivity
• Interchangeable CS Mount Lens
• Edge Recording/ Micro SD slot
• PoE/ Two-way Audio/ PIR/ Illumination LED/ DIDO/ Privacy button







(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.

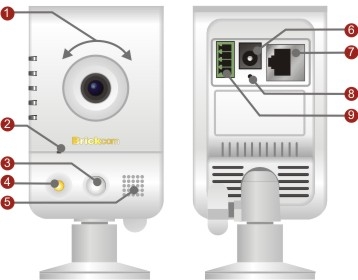

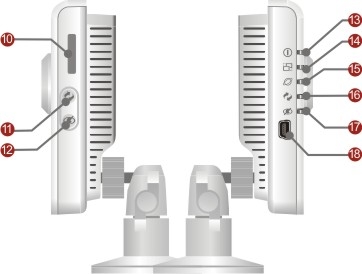

Adjustable focal Lens(*) Built-in Microphone PIR Illumination LED Speaker Power Connector Ethernet RJ45 Socket Reset Button DIDO Terminal I/O Connector Micro SD/SDHC slot WPS button Privacy button Power LED(*) Status LED Internet LED WPS LED(*) Privacy LED USB Port for 3G/4G(*)


The Brickcom CB-300Ap provides full frame rate video in resolutions up to 3 megapixel including HDTV (Full HD 1080p @ 30 fps streaming). At the same time, the CB-300Ap supports H.264, Motion JPEG and MPEG-4 for multiple streaming to meet different quality need. The CB-300Ap use a 1/2.5" Sensor, offers a reliable video even in a low lux application (1 Lux @ F 2.8, B/W;2 Lux @ F2.8, Color). Brickcom understands the importance of the video quality, and develop this CB-300Ap providing clear, sharper video and color fidelity.


he CB-300Ap is designed with powerful software features to maximize the camera capabilities and adapt variable environments to provide optimized video quality. The intelligent multi-profile supports 5 profiles, allows users being able to configure more parameter of image. With this feature, the user has the ability to set various sensor and lens attributes in a profile, including the brightness, contrast, sharpness, saturation, exposure, de-noise, white balance etc. Furthermore, the profiles can be switched automatically following the user-defined schedule. Up to 3 pre-set profiles (Day, Night, and Sunset) and 2 user-defined profiles are provided for the camera for unprecedented flexibility.


The CB-300Ap is designed with a PIR sensor for detecting movement even in dark and a white LED for illumination the scene at an event. Moreover, it supports DI/DO for external alarm device. By integrating with the Brickcom BP-1000 power battery pack, the CB-300Ap can supports the edge recording, the camera can continue recording and store the data to the Micro SD/SDHC card when the network or power connection is interrupted.

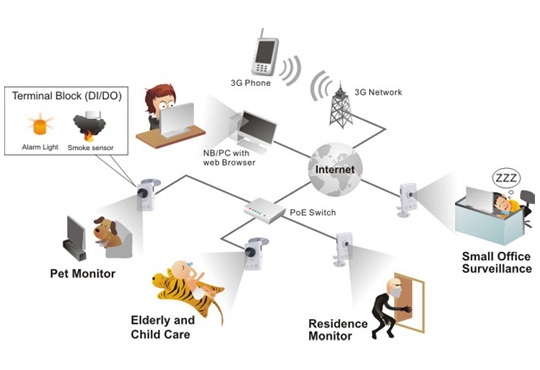

The 3M Cube camera Series offers a wide variety of data transmission options to meet different needs. The CB-300Ap support p 3G/ 4G (WiMAX/ LTE) wireless connectivity. With these models, users can utilize 3G networks in areas where cabling installation would be costly or difficult. Moreover, the CB-300Ap supports PoE (Power over Ethernet) which allows the cameras to transmit data and receive power through the same cable.
