All stock codes associated to this product
SSD120GSATA3S510, SSD 120G SATA3 S510, HDDADA120SS1
S510 SATA 6Gb/s Solid State Drive
An Affordable Entry to the World of Solid State Speed
Description

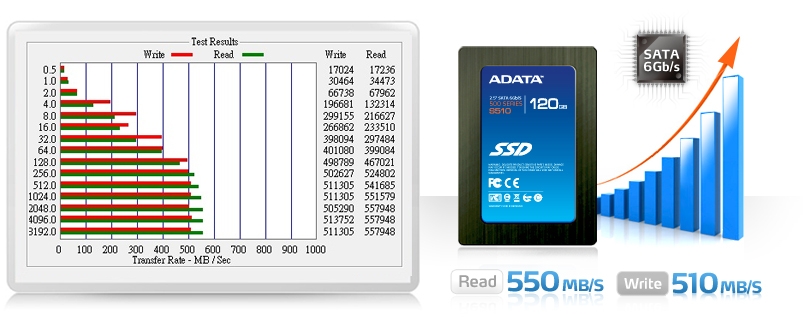

The S510 is a highly cost-effective option for SSD upgrades of existing systems, and for new SATA 6Gb/s enabled computers. The S510 utilizes the new generation SandForce SF-2200 series controller, with native support for the SATA 6Gb/s platform. In both desktop and notebook computers, users will enjoy an unprecedented high-speed experience. The S510 can reach 550/510MB read and write speeds respectively, with 4K random write speeds as high as 85,000 IOPS.
Superior to Mechanical Drives on all Fronts
Solid state drives require no defragmentation, and support the Windows TRIM command. The S510 provides vibration-free running and low power consumption, while taking full advantage of the 6Gb bandwidth transmission capability.
What is the Windows TRIM command optimizing component?
If your computer is running the Windows 7 operating system, the Windows TRIM optimization command can directly delete stored data in the Flash memory and release unused space (Free Blocks) to be used for system writes immediately. This results in more accelerated transfer and write performance for solid state drives, and is also effective in slowing down efficiency decline and depletion chances, maintaining effective operation and extending the life of the disk.
Powerful and Free Software Solution to Eliminate Reinstalls

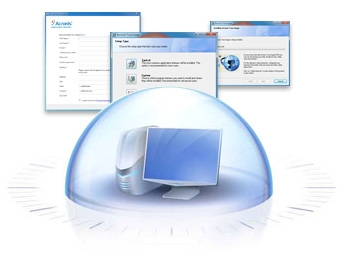

All purchasers of the S510 can download the free Disk Migration Utility software. It facilitates the quick transfer of all files to the new solid state drive, significantly reducing the troublesome and time-consuming process of reinstalling software and restoring data from backups.
Disk Migration Utility software runs on these operating systems: Windows XP / Windows Vista / Windows 7

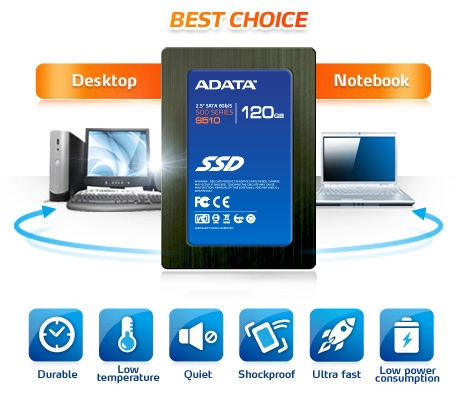

The S510 comes in two packaging configurations, to meet your specific needs
Desktop Pack
Comes with a 3.5-inch conversion bracket to help you mount the S510 when you are upgrading a desktop computer, allowing you to immediately enhance the performance and transmission speed of your operating system.
Notebook Pack

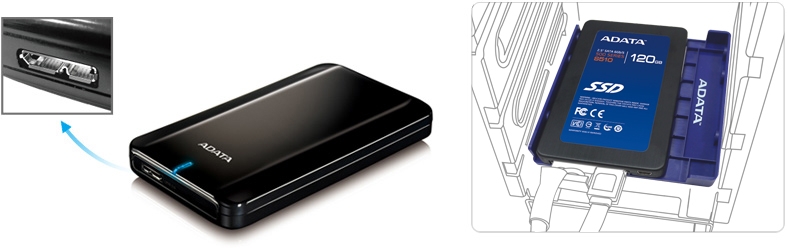

The S510 Notebook Pack allows you to easily upgrade your laptop computer with a premium solid state drive, while using the original hard disk as an external drive. To make use of the S510 as an internal disk drive for your laptop, simply remove the existing hard disk, and install the S510 into the laptop drive slot. Install the old hard disk in the case provided, and continue to use it as either an external or portable drive. It also comes with a 3.5-inch conversion bracket to help you mount the S510 when you are upgrading a desktop computer.
Specifications:
| Capacity |
60GB/120GB |
| NAND Flash |
MLC (Mulit-level cell) Asynchronous Flash |
| Form Factor |
2.5 inch |
| Dimensions |
100 x 69.85 x 9.5mm (L x W x T) |
| Weight |
76g |
| Performance |
60GB Performance
Documents Data Transfer (ATTO) :
Read: Up to 550MB/S
Write: Up to 500MB/S
Multimedia Data Transfer (AS-SSD)
Read: Up to 200MB/S
Write: Up to 75MB/S
120GB Performance
Documents Data Transfer (ATTO):
Read: Up to 550MB/S
Write: Up to 510MB/S
Multimedia Data Transfer (AS-SSD)
Read: Up to 200MB/S
Write: Up to 140MB/S
4K Random Write (Aligned): 60,000 IOPS
Maximum 4K Randdom Write: 85,000 IOPS
|
| Operating Temp |
0C ~ 70C |
| Storage Temp |
-40C ~ 85C |
| Interface |
SATA 6Gb/s |
| Shock Resistance |
1500G |
| Power Consumption |
0.9W active; 0.5W Idle |
| MTBF |
1,000,000hrs |
| Warranty |
3 years |
| Accessories |
2.5" to 3.5" Bracket
Disk Migration Utility
|
| Remark |
Actual usable space may be less than the total storage capacity listed due to Decimal measurement
used to represent usable capacity of the SSD
|
