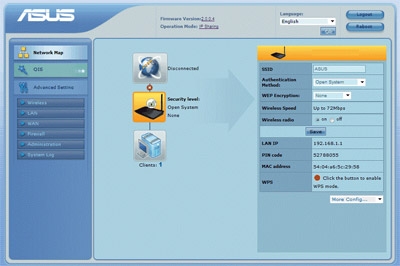

Network Map-Manual Free Management
Straight-forward design to help users to:
- Display the whole network status and clearly provide WAN/LAN status
- Securely connect to your wireless network and prevent intruders from using it
- Manage your network in minutes
- Try our EZ UI software
WPS Function& WPA/WPA2 Encryption
WEP encryption is not enough for Wi-Fi connection nowadays, and intruders may access your Internet flagrantly. Using WPS function and WPA/WPA2 encryption can firmly secure your home networks and protect the private resources.
This product does not support universal repeater mode. If needed, please find RT-N10U, RT-N12, RT-N13U, or RT-N15U.
Specifications:
Network Standard
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4
Product Segment
N300 complete networking; 300Mbps
Data Rate
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
Antenna
External 2 dBi antenna x 2
Operating Frequency
2.4GHz
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support
Firewall & Access Control
Firewall: NAT and SPI (Stateful Packet Inspection)
Filtering: Port, IP packet, URL Keyword, MAC address
Management
DHCP, System Event Log
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Utilities
Device Discovery
Firware Restore
Setup Utility
Ports
1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for WAN
Button
WPS Button, Reset Button, Power Button
LED Indicator
PWR x 1
LAN x 4
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current
OS Support
Windows 8 , 32bit/64bit
Windows 7 , 32bit/64bit
Windows Vista , 32bit/64bit
Windows XP , 32bit/64bit
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Linux
Environmental
Operating Temperature: 0 C to 45 C ( F to F)
Storage Temperature: -20 to 70 C ( F to F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 5 % to 90 % (Non-condensing)
Dimensions
168 x 124 x 30 mm (LxWxH)
Weight
210 g
Package Content
RT-N12 LX Wireless Router
RJ-45 Cable
Power Adapter
Warranty Card
Quick Start Guide
Support CD (User Manual and Utility Software)
