The highly scalable Hyper Transport 3.0 is capable to provide incredible bandwidth of the system bus up to 20.8GB/s which would dramatically elevate the efficiency of computing performance.
AMD AM3+ CPU Ready
Support AMD new generation AM3+ multi-core processors which delivers better performance and more features than previous generation.
Dual Channel DDR3 1866(OC)
Overclocking memory to achieve 1866MHz instead of origin memory speed for doubling the bandwidth of your system memory up to 29.8 GB/s.
PCI EXPRESS 2.0
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.
PCI EXPRESS x16
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance
SATA 3.0Gb/s
Doubles the transfer speed of SATA, running at speed up to 3.0Gb/s, and fully compatible with the soon-to-be-released SATA HDD, CD-ROM and other cutting-edge devices with NCQ function support.
RAID 0, 1, 10
Supports RAID 0(Striped disk array), RAID 1(Mirroring disk array), RAID 10 (A Stripe of Mirrors). Provides users the performance and protection.
USB 2.0
USB2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
D-Sub output
D-Sub connection technology is used for connecting computer and monitor by analog signal. It is reliable and stable for signals transmit from point A to B.
HDMI Output (Optional)
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
eBLU - BIOS Live Update Utility
ECS eBLU utility makes updating BIOS fast and easy. eBLU saves time and hassle of searching for BIOS online and avoid complicated flashing steps. With simple and easy steps it checks for new BIOS version on-line and safely guides the user to flash the system BIOS.

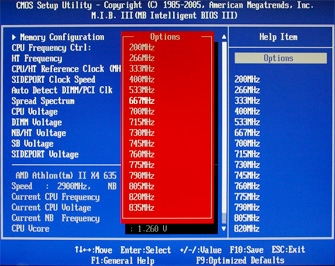

eOC - Easy Over Clock Utility
Easy Over Clock Utility is a easy and simply overclocking tools that provides user-friendly windows operation interface for novices and overclockers, with clicking on your mouse only you can get much higher performance of CPU quickly. It is available for download and updated online to get the latest version. Combine with ECS MIB technology to challenge undiscovered extreme overclocking than ever before.
eDLU - Drivers Live Update Utility
ECS eDLU utility makes updating Drivers fast and easy. eDLU Saves time and hassle of searching for Drivers online and avoid complicated steps. With simple and easy steps it checks for new Drivers version on-line and let the user to update the Drivers.
eSF(ECS Smart Fan Utility)
ECS Smart Fan Utility provides smart and user friendly way to adjust fan speed depending on PCs system loading and temperature. It offers five modes to adjust fan speed within safe range without entering BIOS for smart, easy and silent environment.

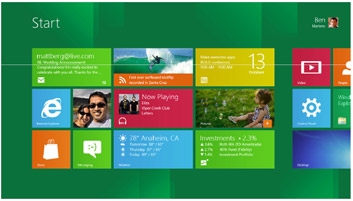

Support Windows 8 OS
Workable for the next version of Microsoft Windows - Windows 8 which is the first edition of Windows to support for both x86 PCs and ARM tablets.
ROHS
Choose an environment-friendly, fully RoHS-compliant ECS product as the foundation for keeping harmful substances out of our ecosystem.
ErP Ready
ECS Motherboards have been certified by ErP of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.

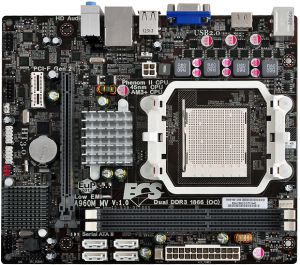

Specifications:
| CPU |
Supports AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series
High-performance HyperTransport 3.0 CPU Interface
Note: This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU.
|
| CHIPSET |
AMD 760G & AMD SB710
North Bridge: AMD 760G
South Bridge: AMD SB710
|
| GRAPHICS |
On chip (AMD 760G-based with ATI Radeon HD3000 graphics)
Integrated DirectX 10 graphics processor
Share Memory: Maximum up to 512MB
|
| MEMORY |
Dual-channel DDR3 memory architecture
2 x 240-pin DDR3 DIMM socket support up to 16GB per one DIMM support 8GB
Support DDR3 up to 1866(OC)/1600(OC)/1333/1066 DDR3 SDRAM
*(Due to AMD CPU spec limitation, please refer to Memory QVL for more information)
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS.
For Windows 64-bit OS with 64-bit CPU, there is no such limitation
|
| EXPANSION SLOT |
1 x PCI Express x16 slot
1 x PCI Express x1 slot
|
| STORAGE |
Support by AMD SB710
4 x Serial ATA 3.0Gb/s devices
RAID0, RAID1, RAID10 configuration
|
| AUDIO |
Realtek ALC662 6-channel HD audio CODEC
Compliant with HD audio specification
|
| LAN |
Realtek 8105E 10/100 Lan
Realtek 8111E Giga Lan (Optional)
|
| REAR PANEL I/O |
1 x PS/2 keyboard & PS/2 mouse connectors
1 x D-sub(VGA)
1 x HDMI Port(Optional)
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
4 x USB 2.0 Ports
|
| INTERNAL I/O CONNECTORS & HEADERS |
1 x 24-pin ATX Power Supply connector
1 x 4-pin 12V Connector
1 x 4-pin CPU_FAN connector
1 x 3-pin SYS_FAN connector
1 x SPK header
1 x Front panel header
1 x Front audio header
1 x Clear CMOS header
1 x Serial port header
4 x SATA 3Gb/s connectors
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x Chassis intrusion header
|

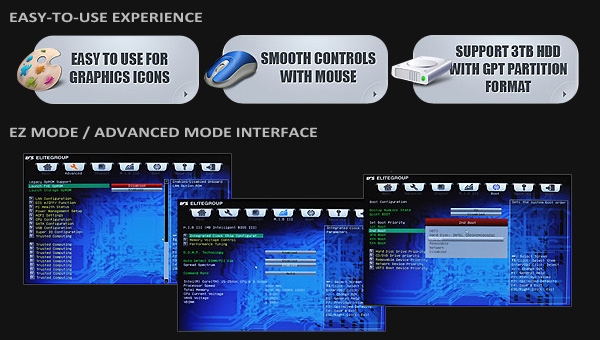

| SYSTEM BIOS |
AMI BIOS with 16Mb SPI Flash ROM
Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Audio, LAN, can be disabled in BIOS
Supports eDLU
Supports eBLU
Support eOC
Supports eSF
|
| FORM FACTOR |
Micro-ATX Size, 210mm*180mm |
