All stock codes associated to this product
CW9060014WW(H110), CW-9060014-WW(H110)

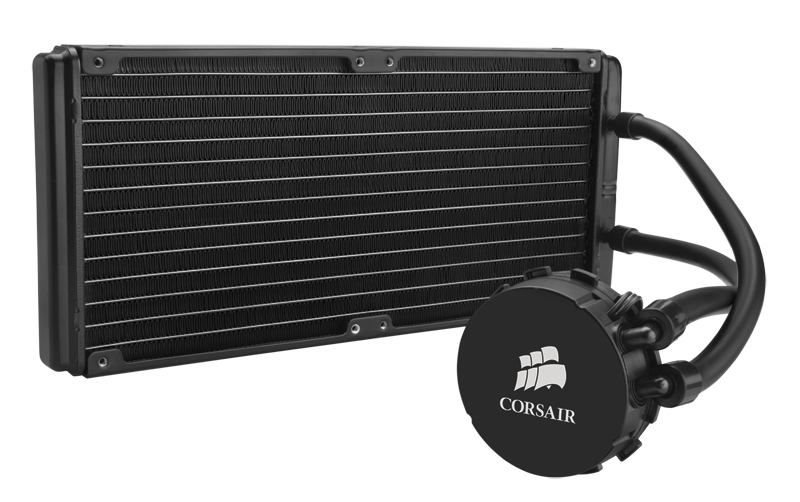

Hydro Series H110 280mm Extreme Performance Liquid CPU Cooler
Hydro Series H110 280mm Liquid CPU Cooler provides quiet, efficient, extreme-performance CPU cooling for cases which support a 280mm radiator.
SKU# CW-9060014-WW
Overview
Extreme CPU cooling performance
Hydro Series H110 is an all-in-one liquid CPU cooler that provides cooling thats far superior to stock CPU air fans. Liquid cooling simply works better than air cooling, and the self-contained design of the H110 makes it easy for you to protect your valuable CPU.
Take advantage of your 280mm radiator mount
For efficient cooling, bigger is better its simple physics. If your PCs case can fit a 280mm radiator, Hydro Series H110 will give you better performance. The larger diameter fans provide better airflow with lower noise than most 120mm fans, and the 280mm radiator has more surface area for faster cooling.
Features
280mm radiator
The 280mm-wide radiator has a larger surface area than typical 240mm radiators for more efficient heat transfer.

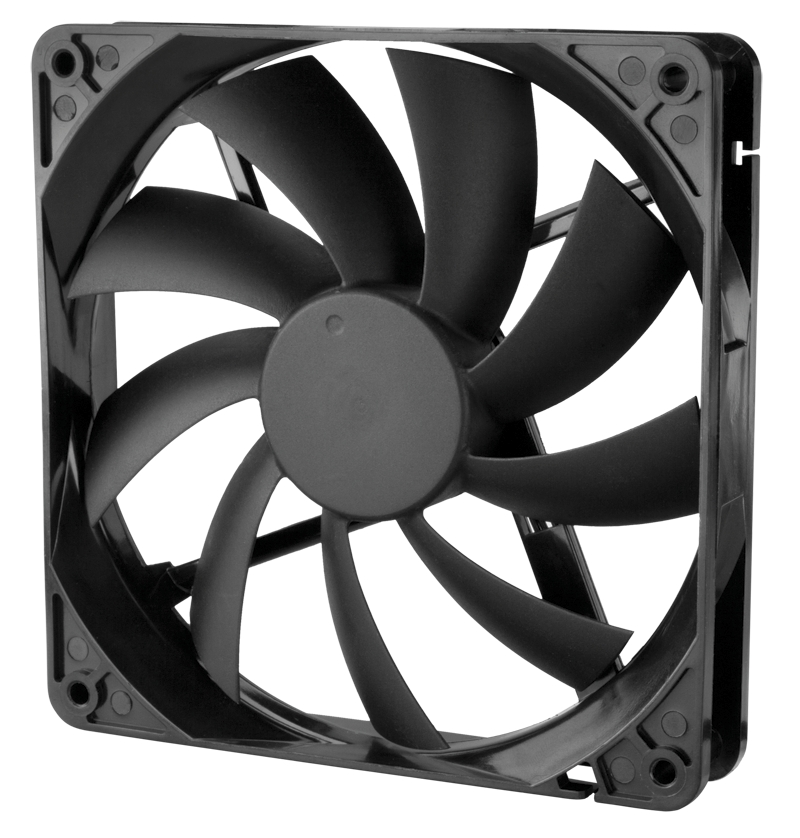

Low-RPM 140mm fans
The blades of the included 140mms fan are larger than most 120mm fan blades, so they don’t need to spin as fast to deliver the same airflow, reducing noise without lowering performance.
Next-generation tubing
The low-evaporation, easy-bend tubing is guaranteed leak-free.
Advanced cold plate and manifold design
The cold plate uses copper for outstanding heat transfer, and the manifold is engineered for efficient flow.
Simple mounting bracket
The multi-platform mounting bracket easily adapts for Intel and AMD processors.
Contents and Specifications
Package contents
- Corsair Hydro Series H110 Extreme Performance Liquid CPU Cooler
- Mounting kit for all modern CPU sockets
- Two 140mm High Torque Fans
- Fan and radiator mounting screws
- Thermal compound (pre-applied)
- Quick Start Guide
Technical Specifications
- Radiator dimensions: 140mm x 312mm x 29mm
- Fan dimensions: 140mm x 25mm
- Fan speed: 1500 +/- 10% RPM
- Fan airflow: 94 CFM
- Fan static pressure: 1.64mm-H2O
- Noise level: 35dB(A)
Compatibility
- Intel LGA 1155, 1156, 1366, and 2011
- AMD sockets FM1, FM2, AM2, and AM3
Specifications:
- Warranty: Five years
- Cold Plate Material: Copper
- Fan Specification: 140mm (x2)
- Socket Support: AMD AM2, AMD AM3, AMD FM1, AMD FM2, Intel LGA 1155, Intel LGA 1156, Intel LGA 1366, Intel LGA 2011
- Radiator Material: Aluminum
- Tubing: Low-evaporation, easy-bend tubing is guaranteed leak-free.
