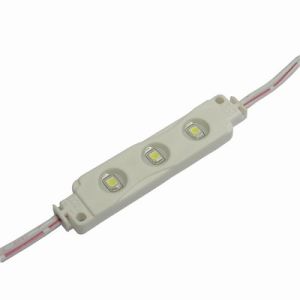

Generic ZD0590 IP65 LED Light Module String, 10x 3x3528-LEDs, Cool White

IMG 1 of 1
No Longer Available
Part Number:
217417
(?) Brand:
Generic
Manuf No:
ZD0590
Shipping Weight:
0.4 KG (Includes product packaging)
Estimate Shipping
Date Added:
4/3/2013
Details Files Images & Video
All stock codes associated to this product
ZD0590, 9319236981641
IP65 LED Light Module String, 10x 3x3528-LEDs, Cool White


ZD0590

A very flexible and weatherproof (IP65) solution for low power lighting; use for backlighting of signs, illuminating stairwells, marine lighting, caravan lighting, etc. Each string is supplied as a 1m length of wire, with ten "modules" containing three high brightness SMD LEDs along the length of the string. You can cut the string to supply power to each module separately if you wish, allowing for a whole host of different applications. Simply provide 12VDC power and you are in business. Available in standard 3528-LED or ultra-bright 5050-LED versions, and in cool white, warm white or blue colours depending on the model you chose.

ZD-0590 IP65 LED Light Module String, 10x 3x3528-LEDs, Cool White

Specifications:

Voltage:12VDC
Colour: Cool white
Current: 300mA total
Lumen output: 13.5lm per module (135 total)
LEDs: 10x (3x3528)
Light angle: 120
Dimensions: 71(L) x 15(W) x 5.5(H)mm per module

Other models available seperately

ZD-0592 IP65 LED Light Module String, 10x 3x3528-LEDs, Warm White
ZD-0593 IP65 LED Light Module String, 10x 3x3528-LEDs, Blue
ZD-0594 IP65 LED Light Module String, 10x 3x5050-LEDs, Cool White
ZD-0596 IP65 LED Light Module String, 10x 3x5050-LEDs, Warm White

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
