All stock codes associated to this product
9H.J7T77.13P, 9HJ7T7713P, 13BQMW817ST
MW817ST
Ultra-Sharp Images in a Short Distance
Designed for disruption-free learning in small-sized classrooms, the MW817ST offers a 87 WXGA picture in only 1 meter with a 0.49 ultra short-throw ratio. Together with 13000:1 ultra-sharp contrast ratio and 3000 ANSI lumen brightness, this projector has the most dynamic image quality to offer!
Features
World-Leading SmartEco Technology for a Greener Environment
As the first DLP brand to incorporate Philips' ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MW817ST brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.
Eco Blank Mode
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students' focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by up to 70%.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power Consumption by Average
Smart Eco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Long Lamp Life at up to 6,500 hours
Enjoy a lamp life performance of up to 6500 hours in SmartEco mode– longer lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
Lamp life results will vary depending on environmental conditions and usage.

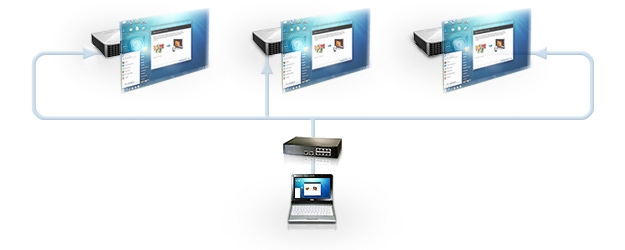

LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MW817ST offers seamless support for the Crestron and PJ-Link LAN Control system.

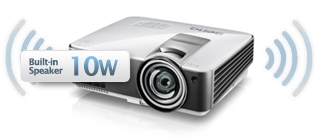

The Perfect Sound Solution
Built-in 10W Big Audio Power
The MW817ST features one built-in 10W speaker to help enrich every lesson with top quality audio performances.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
 |
|
Arsenic-free optical glass
BFR/PVC-free casing plastics
PVC-free plastic
|
Specifications:
| Projection System |
DLP |
| Native Resolution |
WXGA (1280x800) |
| Brightness* |
3000AL |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.6, f=6.9mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
0.49 (87"@0.91m) |
| Image Size (Diagonal) |
50"~300" |
| Zoom Ratio |
Fixed |
| Lamp Type |
210W |
| Lamp(Normal/Economic Mode/SmartEco Mode)* |
4000/5000/6500 hours |
| Keystone Adjustment |
1D, Vertical 30 degrees |
| Projection Offset |
110% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1
Audio in (Mini Jack) x 2
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Speaker 10W x 1
LAN (RJ45) x 1
USB (Type B) x1 (Download & page/down)
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Rear)
|
| Dimensions(W x H x D) |
287.3 x 114.4 x 232.6mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.8kg (6.2lbs) |
| Audible Noise |
36/29 dBA (Normal/Economic mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
275W, Standby<1W |
| On-Screen Display Languages |
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable
|
| Accessories (Optional) |
Presentation Plus P/N: 65.J9306.002
Spare Lamp Kit P/N: 5J.J7C05.001
Ceilling Mount P/N: 5J.J4N10.001
Wall Mount P/N: 5J.J4R10.011
3D Glasses P/N: 5J.J0T14.011
Carry bag P/N: 5J.J3T09.001
|
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i |
