ZyXEL NWA3160-N Single-Radio Hybrid Access Point - 802.11 a/b/g/n, 1-Port 10/100/1000Mbps Auto-Sensing (Full-Duplex Switch)

No Longer Available

Part Number:

217795

(?) Brand:

ZyXEL Web Site

Manuf No:

NWA3160-N
NWA3160N

Shipping Weight:

0.8 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

NWA3160N, NWA3160-N, ZNWA3160N, ZNWA3160-N

NWA3160-N

802.11a/b/g/n Business Access Point

ZyXEL "N-Generation": Access Point tailored to the growing needs of SMB

The ratification of the 802.11n standard allows for excellent growth prospects and opportunities of acting within commercial solutions targeted environment where business applications to broad bandwidth consumption grow on the agenda. In addition to the increase in bandwidth and coverage, the 802.11n technology eliminates collisions as well as provide optimal solutions for a variety of users and large coverage areas.

The series NWA 3000-N proposed by ZyXEL meets the requirements of the new "N generation". The different models proposed by range ranging from single to dual-radio, working in Dual-Frequency (2.4GHz and 5GHz) adapting to indoor solutions (NWA-3160N 1 radio and NWA-3560N-two radio) and solutions such as out-door ' NWA-3550-N.

Benefits

Fast, reliable. 11N technology is the future for the access network.

Undoubtedly, the concept of mobility is nowadays, the key in the business world, whereas many web applications are involved in daily operations carried out under professional. The answer to these requirements is represented by 802.11N wireless products, which not only act as an access point for mobile devices, but also provide them with a structure performs perfectly (300mbps) and solid. In the local data transmissions, are comparable to the wired network, making it much more convenient, however, in terms of cost.

No extra charge for the change in the operating mode

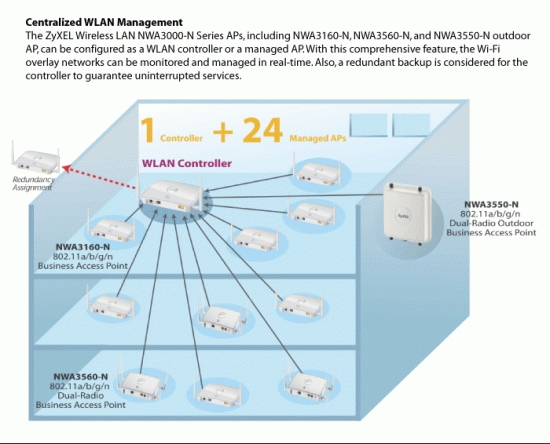

The series ZyXEL NWA-3000-N series is considered "Hybrid", being able to work as a stand-alone AP, AP as "controlled" and as a "controller" AP. This feature makes absolutely flexible infrastructure created by these apparatuses, making absolutely transparent and easy, the insertion of a new device. In the "controller" of an AP series NWA-3000-N comes to being able to manage 24 AP "controlled" for an audience estimated around 300-500 units.

Simple development thanks to PoE and the auto-configuration

In order to facilitate wiring and installation in critical scenarios, the NWA-3000-N series provides a number of features that enable quick and easy development of the desired scenario. The whole series NWA-3000-N supports Power Over Ethernet (PoE) 802.3af and 802.3at through, giving way to personal gain power directly from the cable network, as well as the same data. The auto-discovery of the controller then, in an automatic manner will allow to identify and acquire the desired configuration.

Small to Medium-sized companies with the best solution for security and resilience

Usually the SMB are confronted with limited budgets and resources viewpoint of development and expansion of the network. The NWA-3000-N series offers them a flexible and convenient. In addition to classic parameterizations their environment WI-FI as WAP/WPA2 Personal, series NWA-3000-N is able to offer a Radius internal, for the guarantee of safety and reduction of infrastructure costs by eliminating dedicated machines. The function of High-Availability (HA) provides a guarantee of continuity of service, to meet all critical situations where downtime is a possible loss of income. The whole series NWA-3000-N adopts the realization through LSOH material, in order to not release noxious fumes in case of fire.

Technical Specifications

Model		NWA3160-N	NWA3560-N	NWA3550-N
Product Name		802.11a/b/g/n AP Business	802.11a/b/g/n Dual-Radio AP Business	802.11a/b/g/n Dual-Radio Outdoor Business AP
Product Picture
Main Design
Radio		1	2	2
Number of Antenna		2 external dipole	4 external dipole	4 N-type connectors *
Frequency Band	2.4GHz (11g / n)	USA: 2.412 to 2.462 GHz
	2.4GHz (11g / n)	ETSI: 2.412 to 2.472 GHz
	5GHz (11a / n)	USA: 5150 to 5250 GHz; 5725-5850 GHz
	5GHz (11a / n)	ETSI: 5.15 to 5.35 GHz, 5470 to 5.725Ghz
Maximum Output Power
11b / g	54 Mbps	18 dBm	18 dBm	18 dBm
	6 Mbps	18 dBm	18 dBm	18 dBm
11g / n	20 MHz	15 dBm	15 dBm	15 dBm
	40 MHz	15 dBm	15 dBm	15 dBm
11th	54 Mbps	16 dBm	16 dBm	16 dBm
	6 Mbps	18 dBm	18 dBm	18 dBm
11a / n	20 MHz	18 dBm	18 dBm	18 dBm
	40 MHz	16 dBm	16 dBm	16 dBm
Wired Data Rates		10/100/1000Mbps auto-sensing (full-duplex switch)
LAN
Number of 10/100/1000M LAN / Switch		1	1	1
PoE		Yes	Yes	Yes
PoE Power Draw		11W	14W	28W
WLAN Features
Maximum Throughput		Up to 120 Mbps	Up to 140 Mbps	Up to 140 Mbps
WMM (Wi-Fi Certified)		Yes	Yes	Yes
WEP		Yes	Yes	Yes
WPA/WPA2-PSK		Yes	Yes	Yes
WPA2 (Wi-Fi Certified)		Yes	Yes	Yes
WPA/WPA2-Enterprise		Yes	Yes	Yes
Network
VLANs		Yes	Yes	Yes
DHCP Client		Yes	Yes	Yes
Security
IEEE 802.1x		Yes	Yes	Yes
MAC Filtering		Yes	Yes	Yes
RADIUS Authentication		Yes	Yes	Yes
Embedded RADIUS Server		Yes	Yes	Yes
EAP-type		EAP-TLS, EAP-TTLS, PEAP, SIM, FAST, AKA
Rogue AP Detection		Yes	Yes	Yes
Rogue AP Containment		Yes	Yes	Yes
WLAN Management
Controller Mode		Yes	Yes	Yes
Standalone AP Mode		Yes	Yes	Yes
Managed AP Mode		Yes	Yes	Yes
CLI with SSH		Yes	Yes	Yes
Web UI with SSL		Yes	Yes	Yes
SNMP		Yes	Yes	Yes
Others
Plenum Rating		Yes	Yes	-
Kensington Lock Support		Yes	Yes	-
Standard Compliance
Ethernet		IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
PoE		IEEE 802.3af, IEEE 802.3at		IEEE 802.3at
Radio Modulation		IEEE 802.11a: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11b: DBPSK, DQPSK, CCK IEEE 802.11g: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Certification
Radio		FCC Part 15C 15.247, FCC Part 15E, ETSI EN 300 328 V1.7.1, ETSI EN 301 893 V1.2.3 :08-2003 DGT LP0002
EMC		FCC Part 15B (Class B), EN 301 489-17 V1.2.1: 08-2002 (Class B), EN 301 489-1 V1.5.1: 11-2004 (Class B),		FCC Part 15B (Class A), EN 301 489-17 V1.2.1: 08-2002 (Class A), EN 301 489-1 V1.5.1: 11-2004 (Class A),
Safety		EN 60950-1 (Class B), EN 60601-1-2: 2002 (Medical Electrical Equipment) (Class B)		EN 60950-1 (Class A), EN 60601-1-2: 2002 (Medical Electrical Equipment) (Class A)
Power Requirement
Power supply		12V DC, 1.5A		PoE only
Physical Specifications
Item dimensions (W x D x H) (mm / in.)		198 x 138 x 45 / 7.80 x 1.77 x 5:43	198 x 138 x 45 / 7.80 x 1.77 x 5:43	257 x 257 x51 / 10.12 x 10.12 x 02.01
Item weight (g / lb.)		439/0.97	462/1.02	1,360 / 3.01
Packing dimensions (W x D x H) (mm / in.)		295 x 192 x 93 / 11.61 x 7.56 x 3.66	295 x 192 x 93 / 11.61 x 7.56 x 3.66	382 x 415 x 154 / 15.04 x 06.06 x 16:34
Packing weight (g / lb.)		1164/2.57	1227/2.71	3,600 / 7.95
Environmental Specifications
Operating temperatures		0 C to 40 C/32 F to 104 F		-40 C to 60 C/-40 F to 140 F
Operating humidity		10% to 90% (Non-condensing)		10% to 90% (Non-condensing)
Storage temperatures		-30 C to 70 C/-22 F to 158 F		-40 C to 70 C/-40 F to 158 F
Storage humidity		10% to 90% (Non-condensing)		10% to 90% (Non-condensing)
