NWA1300-NJ
802.11b/g/n In-wall PoE Access Point
Best Wi-Fi Surfing Experience for Hotel Guests
The rapid boom of mobile handheld devices renders 3G bandwidth insufficient under Certain Circumstances, Such as many hospitality facilities are building faster Wi-Fi networks to Satisfy customer needs. To hotel guests, the ZyXEL NWA1300-NJ can Provided for superior Wi-Fi surfing experience by integrating wired and wireless connectivity into a small unit and PoE power supply. The new NWA1300-NJ is capable of Replacing traditional network cabling outlets can be quickly and discretely installed into the wall box. In Additions, the IT administrators can centrally manage Thousands of network devices with much less operating cost using ZyXEL's Enterprise Network Center (ENC) network management software.
- IEEE 802.11 b/g /n
- Strongest certified wireless security
- Embedded SISO antenna
- Configurable Low TX power Provides suitable Prevents wireless coverage and interference
- Central WLAN management software with ENC
- IEEE 802.3af PoE supports easy installation for administrators
- Web management and command line interface
- RJ-11 phone line pass-though
Benefits
Electrical outlet design for elegant guest room interior
The NWA1300-NJ features an "electrical outlet box" design to Provide flexibility for hotel WLAN deployments. With the built-in Ethernet port, it offers wired network to guests in Additions to the wireless connectivity as well. The NWA1300-NJ Also Provides a phone port for interior designers to UTILISE the conventional phone network.
Utilising Ethernet network to save cost deployment

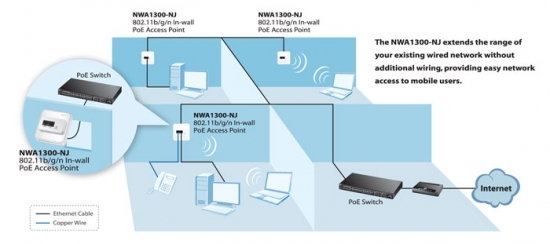

Eliminating the needs for AC power adapters, PoE support of the NWA1300-NJ it makes cutting easier than ever for hotels to Overcome Difficulties installation, as ZyXEL's PoE switches and other 802.3af standard-based PoE devices can transmit power and data to the NWA1300-NJ simultaneously through CAT-5 Ethernet cables to Provide flexible installation options for locations are difficult to lay That standard wires.
Good coverage and 11n performance for customer satisfaction
In traditional hospitality deployment scenarios, walls and partitions made of materials Such as concrete or wood would degrade signals, and sometimes lead to an unsatisfactory level or even disconnection. The unique design of NWA1300-NJ Provides impressive wireless coverage That solves bad signal and interference problems, while the WiFi-certified hotel 11n support Allows operators to take advantage of wire speed networking. The NWA1300-NJ is the best-in-class solution to enhance the satisfactory level of public Internet users.
Effortless network installation That eases administrative burdens
In Additions to the Web-based configuration utility, network administrators can Utilize the ZyXEL Enterprise Network Center * (ENC) software to manage Hundreds of NWA1300-NJS via the graphical, profile-based control panel. With all the sophisticated designs, the NWA1300-NJ Provides a refreshing wireless coverage solution to the hospitality service sector.
Technical Specifications
| |
System Specifications
Standard Compliance
- Ethernet
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3af
- WLAN
- Modulation Type
- 802.11b: DBQSK, DQPSK, CCK
- 802.11g: BQSK, QPSK, 16-QAM, 64-QAM
- 802.11n: BQSK, QPSK, 16-QAM, 64-QAM
- Frequency Band
- 2.4 GHz Bands
- USA: 2.412 to 2.462 GHz
- ETSI: 2.412 to 2.472 GHz
- Taiwan: 2.412 to 2.462 GHz
Antenna
- 1 embedded antenna (Single In Single Out SISO)
Performance
- Wired data rates: 10/100 Mbps auto-sensing (full-duplex switch)
Security
- WLAN Access Control List
- 64/128-bit WEP
- WPA-PSK, WPA2-PSK
- WPA-Enterprise, WPA2-Enterprise
- EAP-TLS, TTLS, PEAP, SIM
Hardware Specifications
Ports
- Ethernet: 10/100Base-T full duplex RJ-45 x 1
- Power over Ethernet: Yes
- Phone: RJ-11 pass-through
Power Supply
- Power specification: PoE, IEEE 802.3af support
- Power consumption: 7.2 Watt
Physical Specifications
- Item weight: 122 g (0.27 lb) (with frame)
- Item dimensions (WxDxH): 87 x 87 x 55.5 mm (3.43 "x 3.43" x 2.19 ")
- Packing weight: 295 g (0.65 lb)
- Packing dimensions (WxDxH): 320 x 270 x 123 mm (12.6 "x 10.62" x 4.84 ")
Mounting
- Designed for mounting in a standard wall outlet box: BS 4662:2006
Environmental Specifications
Operating Environment
- Temperature: 0 C to 50 C (32 F to 122 F)
- Humidity: 20% to 95% (non-condensing)
Storage Environment
- Temperature: -30 C to 60 C (-22 F to 140 F)
- Humidity: 10% to 90%
Certification
Radio
- FCC Part 15C 15,247
- ETSI EN 300 328
- DGT LP0002
EMC
- FCC Part 15/107
- EN 301 489-17 V1.2.1 :08-2002
- EN 301 489-1 V1.5.1 :11-2004
Safety
|
Networking
