Model |
NWA3160-N |
NWA3560-N |
NWA3550-N |
Product Name |
802.11a/b/g/n AP Business |
802.11a/b/g/n Dual-Radio AP Business |
802.11a/b/g/n Dual-Radio Outdoor Business AP |
Product Picture |
|
|
|
Main Design |
Radio |
1 |
2 |
2 |
Number of Antenna |
2 external dipole |
4 external dipole |
4 N-type connectors * |
Frequency Band |
2.4GHz (11g / n) |
USA: 2.412 to 2.462 GHz |
ETSI: 2.412 to 2.472 GHz |
5GHz (11a / n) |
USA: 5150 to 5250 GHz; 5725-5850 GHz |
ETSI: 5.15 to 5.35 GHz, 5470 to 5.725Ghz |
Maximum Output Power |
11b / g |
54 Mbps |
18 dBm |
18 dBm |
18 dBm |
|
6 Mbps |
18 dBm |
18 dBm |
18 dBm |
11g / n |
20 MHz |
15 dBm |
15 dBm |
15 dBm |
|
40 MHz |
15 dBm |
15 dBm |
15 dBm |
11th |
54 Mbps |
16 dBm |
16 dBm |
16 dBm |
|
6 Mbps |
18 dBm |
18 dBm |
18 dBm |
11a / n |
20 MHz |
18 dBm |
18 dBm |
18 dBm |
|
40 MHz |
16 dBm |
16 dBm |
16 dBm |
Wired Data Rates |
10/100/1000Mbps auto-sensing (full-duplex switch) |
LAN |
Number of 10/100/1000M LAN / Switch |
1 |
1 |
1 |
PoE |
Yes |
Yes |
Yes |
PoE Power Draw |
11W |
14W |
28W |
WLAN Features |
Maximum Throughput |
Up to 120 Mbps |
Up to 140 Mbps |
Up to 140 Mbps |
WMM (Wi-Fi Certified) |
Yes |
Yes |
Yes |
WEP |
Yes |
Yes |
Yes |
WPA/WPA2-PSK |
Yes |
Yes |
Yes |
WPA2 (Wi-Fi Certified) |
Yes |
Yes |
Yes |
WPA/WPA2-Enterprise |
Yes |
Yes |
Yes |
Network |
VLANs |
Yes |
Yes |
Yes |
DHCP Client |
Yes |
Yes |
Yes |
Security |
IEEE 802.1x |
Yes |
Yes |
Yes |
MAC Filtering |
Yes |
Yes |
Yes |
RADIUS Authentication |
Yes |
Yes |
Yes |
Embedded RADIUS Server |
Yes |
Yes |
Yes |
EAP-type |
EAP-TLS, EAP-TTLS, PEAP, SIM, FAST, AKA |
Rogue AP Detection |
Yes |
Yes |
Yes |
Rogue AP Containment |
Yes |
Yes |
Yes |
WLAN Management |

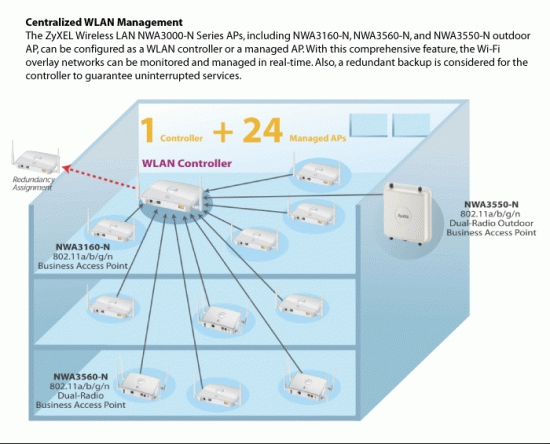

Controller Mode |
Yes |
Yes |
Yes |
Standalone AP Mode |
Yes |
Yes |
Yes |
Managed AP Mode |
Yes |
Yes |
Yes |
CLI with SSH |
Yes |
Yes |
Yes |
Web UI with SSL |
Yes |
Yes |
Yes |
SNMP |
Yes |
Yes |
Yes |
Others |
Plenum Rating |
Yes |
Yes |
- |
Kensington Lock Support |
Yes |
Yes |
- |
Standard Compliance |
Ethernet |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
PoE |
IEEE 802.3af, IEEE 802.3at |
IEEE 802.3at |
Radio Modulation |
IEEE 802.11a: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11b: DBPSK, DQPSK, CCK IEEE 802.11g: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
Certification |
Radio |
FCC Part 15C 15.247, FCC Part 15E, ETSI EN 300 328 V1.7.1, ETSI EN 301 893 V1.2.3 :08-2003 DGT LP0002 |
EMC |
FCC Part 15B (Class B), EN 301 489-17 V1.2.1: 08-2002 (Class B), EN 301 489-1 V1.5.1: 11-2004 (Class B), |
FCC Part 15B (Class A), EN 301 489-17 V1.2.1: 08-2002 (Class A), EN 301 489-1 V1.5.1: 11-2004 (Class A), |
Safety |
EN 60950-1 (Class B), EN 60601-1-2: 2002 (Medical Electrical Equipment) (Class B) |
EN 60950-1 (Class A), EN 60601-1-2: 2002 (Medical Electrical Equipment) (Class A) |
Power Requirement |
Power supply |
12V DC, 1.5A |
PoE only |
Physical Specifications |
Item dimensions (W x D x H) (mm / in.) |
198 x 138 x 45 / 7.80 x 1.77 x 5:43 |
198 x 138 x 45 / 7.80 x 1.77 x 5:43 |
257 x 257 x51 / 10.12 x 10.12 x 02.01 |
Item weight (g / lb.) |
439/0.97 |
462/1.02 |
1,360 / 3.01 |
Packing dimensions (W x D x H) (mm / in.) |
295 x 192 x 93 / 11.61 x 7.56 x 3.66 |
295 x 192 x 93 / 11.61 x 7.56 x 3.66 |
382 x 415 x 154 / 15.04 x 06.06 x 16:34 |
Packing weight (g / lb.) |
1164/2.57 |
1227/2.71 |
3,600 / 7.95 |
Environmental Specifications |
Operating temperatures |
0 C to 40 C/32 F to 104 F |
-40 C to 60 C/-40 F to 140 F |
Operating humidity |
10% to 90% (Non-condensing) |
10% to 90% (Non-condensing) |
Storage temperatures |
-30 C to 70 C/-22 F to 158 F |
-40 C to 70 C/-40 F to 158 F |
Storage humidity |
10% to 90% (Non-condensing) |
10% to 90% (Non-condensing) |
