All stock codes associated to this product
NWA5550N, NWA5550-N, ZNWA5550N, ZNWA5550-N
NWA5550-N
802.11 a/b/g/n Dual-Radio Outdoor Managed Access Point for NXC5200
WLAN more secure and reliable enterprise environments and campus.
- Increased bandwidth and higher density with the full range of Access Point 802.11n (NWA5000-N series)
- Complete management of the network for guests with guest account automatic generator and support for Web authentication
- Manage up to 240 AP for a granular access control
- Management Centralized WLAN configuration and data transmission
- Flexibility with support for data transmission direct or tunneled
- Other wireless security standards - WPA/WPA2 and AES encryption
- Built-in firewall
- Wireless Intrusion Detection Prevention (IDP) and Integrated Anti-Virus
Nowadays, one of the biggest challenges companies is to provide mobile access to users without compromising security. To meet this demand, ZyXEL offers a new controller includes the Wireless LAN WLAN Controller NXC5200 and the series of controlled NWA5000-N AP in three models: NWA5160N dual-band, dual-radio NWA5560-N and even dual-radio outdoor NWA5550-N. The solution is designed to offer high performance Wireless 11n for seamless mobility and enhanced security in corporate environments and in medium to large campus.
ZyXEL NXC5200 integrates Firewall feature that made ??ZyXEL leader in the field, such as Stateful Packet Inspection, monitoring data from the wireless mobile users while the NWA5000-N Series AP works in conjunction with ZyXEL NXC5200 to deliver optimized performance and services secure network for branch or remote office. The controller NXC5200 and the NWA5000-N Series AP are ideal to offer advanced network services in wireless environment.
Benefits
Centralized management for scalable networks
This new secure WLAN solution is based on NXC5200 ZyXEL wireless LAN controllers can control up to 240 AP ZyXEL NWA5160N, NWA5560-N NWA5550-N and to maximize wireless coverage. The real-time functionality such as data roaming, authentication and load balancing are performed by ZyXEL NXC5200 while NWA5160N, NWA5560-N NWA5550-N and is limited to the function of wireless transmitter. The main advantage is the central configuration independent of the number of access points, and you can expand it until there are IP addresses available to the network administrator.
Secure wireless networks to stop threats to mobile users
Mobile users take many more risks to the corporate network than wired users. To avoid this ZyXEL NXC5200 is equipped with features such as stateful packet firewall that monitors data from mobile users. In addition, the service IDP (Intrusion Detection and Prevention) and the Anti-Virus, both of license, permit all'NXC5200 to act as a controller of the network to block potential threats.
ZyXEL offers cutting-edge technology and provides high safety standards for WLANs with WPA/WAP2 Enterprise and support to various Extensible Authentication Protocol (EAP).
The NWA5000-N series is the ideal solution to solve the security problems of WLAN.
High performance without worries.
The prevalence of wireless networks 11n is putting a strain on existing controllers. Fortunately ZyXEL NXC5200 is designed to provide IT staff to the highest transfer performance data in each virtual AP passing data locally between APs or making tranistare dall'NXC5200 for better management. With these features ZyXEL ZyXEL NWA5000-N NXC5200 and can reduce the workload of the network while still giving users the performance of wireless 11n.
Zero-configuration to minimize the provisioning
Centralized administration simplifies the organizational planning. ZyXEL ZyXEL NWA5000 series NXC5200 and-N are designed to facilitate deployment and provisioning. After making an inspection, the user can place the managed NWA5000-N Series AP in the best position for the correct transmission, the NWA5000-N AP will seek NCX5200 automatically on the network and will download the configuration from the controller, completing the installation . The NWA5000-N series supports the protocols Power over Ethernet (PoE) 802.3af or 802.3at using the Ethernet cable to minimize wiring. ZyXEL NXC5200 and NWA5000-N series simplifies installation for a better experience Wi-Fi.

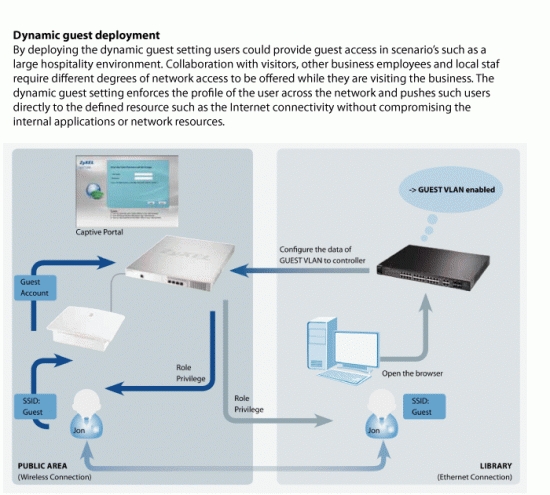

Simple and complete network management guest
For network administrators, a major challenge is to provide a WLAN access with the guests but maintains that internal users in a network separate and protected at the same time. ZyXEL NXC5200 and NWA5000-N series offer a solution for the network guests with a generator account and authentication to your website's account generator allows you to create dynamic users that can be generated on the fly when a visitor request to the reception . Authentication via the Web provides a simple and fast method to authenticate the user and host is also working with integrated Firewall policies to isolate guests from the internal network, thus maintaining the wireless network clean and safe. ZyXEL NXC5200 and NWA5000-N series eliminates the concern of IT staff while providing an excellent wireless coverage. They are the ideal choice for Wi-Fi in the enterprise.

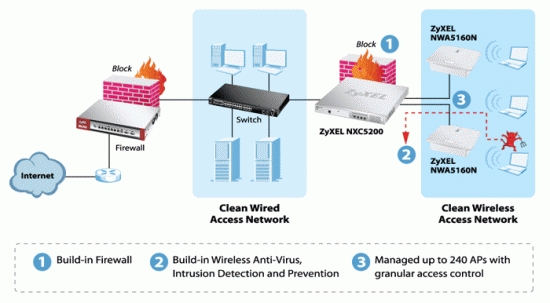

Application Diagram
Specifications:
Model |
NWA5160N |
NWA5560-N |
NWA5550-N |
NXC5200 |
Product Name |
802.11 a / b / g / n Managed Access Point |
802.11 a / b / g / n Dual-Radio Managed Access Point |
802.11 a / b / g / n Dual-Radio Outdoor Managed Access Point |
Wireless LAN Controller |
Product Picture |
|
|
|
|
Main Design |
Radio |
1 |
2 |
2 |
- |
Number of Antenna |
Embedded antenna |
4 external dipole |
4 N-type connectors * 1 |
- |
Frequency Band |
2.4 GHz (11 g / n) |
USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz |
- |
5 GHz (11 a / n) |
USA (FCC): 5.15 to 5.35 GHz, 5470 to 5725, 5725 to 5850 GHz ETSI: 5.15 to 5.35 GHz; 5470 to 5.725 GHz |
- |
Maximum Output Power |
11 b / g |
54 Mbps |
17 dBm |
17 dBm |
17 dBm |
- |
6 Mbps |
18 dBm |
18 dBm |
18 dBm |
- |
11 g / n |
20 MHz |
15 dBm |
15 dBm |
15 dBm |
- |
40 MHz |
15 dBm |
15 dBm |
15 dBm |
- |
11th |
54 Mbps |
16 dBm |
16 dBm |
16 dBm |
- |
6 Mbps |
18 dBm |
18 dBm |
18 dBm |
- |
11 a / n |
20 MHz |
18 dBm |
18 dBm |
18 dBm |
- |
40 MHz |
16 dBm |
16 dBm |
16 dBm |
- |
Wired Data Rates |
10/100/1000 Mbps auto-sensing (full-duplex switch) |
LAN & WAN |
Number of 10/100/1000M LAN |
1 |
1 |
1 |
Default: 4, Expansion: 4 * |
PoE |
Yes |
Yes |
Yes |
- |
PoE Power Draw |
12W |
14W |
28W |
- |
WLAN Features |
Maximum Throughput |
Up to 120 Mbps |
Up to 140 Mbps |
Up to 140 Mbps |
- |
WMM (Wi-Fi Certified) |
Yes |
Yes |
Yes |
Yes |
WEP |
Yes |
Yes |
Yes |
Yes |
WPA/WPA2-PSK |
Yes |
Yes |
Yes |
Yes |
WPA2 (Wi-Fi Certified) |
Yes |
Yes |
Yes |
Yes |
WPA/WPA2- Enterprise |
Yes |
Yes |
Yes |
Yes |
Security Features |
IEEE 802.1x |
- |
- |
- |
Yes |
Web Authentication |
- |
- |
- |
Yes |
MAC Filtering |
- |
- |
- |
Yes |
RADIUS Authentication |
- |
- |
- |
Yes |
Mocrosoft AD Authentication |
- |
- |
- |
Yes |
LDAP Athetication |
- |
- |
- |
Yes |
Embedded RADIUS Server |
- |
- |
- |
Yes |
Rogue AP detection |
- |
- |
- |
Yes |
Rogue AP containment |
- |
- |
- |
Yes |
Intrusion Detection & Prevention |
- |
- |
- |
Yes |
Anti-Virus |
- |
- |
- |
Yes |
Firewall |
- |
- |
- |
Yes |
Network |
VLANs |
Yes |
Yes |
Yes |
Yes |
DHCP Client |
Yes |
Yes |
Yes |
Yes |
DHCP Relay Server |
- |
- |
- |
Yes |
NAT |
- |
- |
- |
Yes |
Static routing |
- |
- |
- |
Yes |
Access Control |
Policy settings for user |
- |
- |
- |
Yes |
Policy setting SSID |
- |
- |
- |
Yes |
Customizable web login page |
- |
- |
- |
Yes |
QoS |
WMM |
Yes |
Yes |
Yes |
Yes |
WMM Power Save |
Yes |
Yes |
Yes |
Yes |
DiffServ Marking |
- |
- |
- |
Yes |
AP Load Balancing |
- |
- |
- |
Yes |
Application Patrol |
- |
- |
- |
Yes |
Management Features |
CLI with SSH |
Yes |
Yes |
Yes |
Yes |
Web UI with SSL |
- |
- |
- |
Yes |
SNMP |
- |
- |
- |
Yes |
Multi-level administration roles |
- |
- |
- |
Yes |
Administrator authentication via RADIUS server |
- |
- |
- |
Yes |
Others |
Plenum Rating |
Yes |
Yes |
- |
- |
Kensington Lock Support |
Yes |
Yes |
- |
- |
Packet captured on Wired and Wireless |
- |
- |
- |
Yes |
Dynamic Channel Selection |
- |
- |
- |
Yes |
Device HA |
- |
- |
- |
Yes |
System Diagnostic Tool |
- |
- |
- |
Yes |
Standard Compliance |
Ethernet |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
PoE |
IEEE 802.3af, IEEE 802.3at |
Proprietary |
- |
Radio Modulation |
IEEE 802.11a: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11b: DBPSK, DQPSK, CCK IEEE 802.11g: BPSK, QPSK, 16-QAM, 64-QAM IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
- |
Certification |
Radio |
FCC Part 15C 15247, FCC Part 15E (Class B), EN 300 328 V1.7.1, EN 301 893 V1.2.3 :08-2003 (Class B), DGT LP0002 (Class B) |
- |
EMC |
FCC Part 15B (Class B), EN 301 489-17 V1.2.1: 08-2002 (Class B) EN 301 489-1 V1.5.1: 11-2004 (Class B) |
Safety |
EN 60950-1 (Class B), EN 60601-1-2: 2002 (Medical Electrical Equipment) (Class B) |
Power Requirement |
Power supply |
[email protected] Amp Maximum |
[email protected] Amp Maximum |
PoE only |
100 - 240 VAC, 50/60 Hz |
Physical Specifications |
Item |
Dimensions (WxDxH) (mm / in.) |
218 x 174 x 54 / 8:58 x 6.85 x 2.12 |
218 x 174 x 54 / 8:58 x 6.85 x 2.12 |
257 x 257 x 51 / 10.12 x 10.12 x 02.01 |
431 x 520 x 44 / 16.96 x 1.73 x 20:47 |
Weight (kg / lbs.) |
0.766/1.69 |
0.805/1.77 |
1.360/3.01 |
12/26/46 |
Packing |
Dimensions (WxDxH) (mm / in.) |
326 x 184 x 91 / 12.83 x 7.24 x 3.58 |
326 x 184 x 91 / 12.83 x 7.24 x 3.58 |
382 x 415 x 154 / 15.04 x 06.06 x 16:34 |
644 x 561 x 183 / 25.35 x 22.09 x 7.20 |
Weight (kg / lbs.) |
1.56/3.44 |
1.586/3.50 |
3.6/7.95 |
14/30.86 |
Environmental Specifications |
Operating Environment
|
Temperatures |
0 C to 40 C/32 F to 104 F |
-40 C to 60 C / -40 F to 140 F |
0 C to 40 C / 32 F to 104 F |
Humidity |
10% to 90% (Non-condensing) |
10% to 90% (Non-condensing) |
10% to 90% (Non-condensing) |
Storage Environment |
Temperatures |
-30 C to 70 C/-22 F to 158 F |
-40 C to 70 C / -40 F to 158 F |
-30 C to 70 C / -22 F to 158 F |
Humidity |
10% to 90% (Non-condensing) |
10% to 90% (Non-condensing) |
10% to 90% (Non-condensing) |
