All stock codes associated to this product
WAP3205, WAP-3205, ZWAP3205, ZWAP-3205
Wireless N Access Point
WAP3205
- Compliant with 802.11n with data transfer rate of up to 300 Mbps
- Backward compatibility with the 802.11b/g standard
- Easy to extend the wireless network coverage
- WPS button for quick and easy wireless security setup
- Secure wireless communications with WEP/WPA/WPA2
Benefits
Upgrade Wireless Speed and Coverage for Home Networks
The ZyXELWAP3205 Wireless N Access Point can easily extend wireless network coverage for multimedia streaming. Following the user-friendly installation wizard, you can easily set up the operating modes such as AP, client and repeater mode to meet your needs.

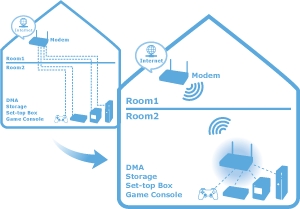

Easy to expand your network wirelessly
Some wired devices such as modems, set-top boxes, digital media adapters and storage devices might not be natively wireless capable. In order to connect these without additional wiring, driver installation or configuration, just plug the Ethernet cable into the WAP3205 and connect to another wired device to get connected wirelessly.
802.11 N enhances wireless speed
The ZyXEL WAP3205 brings you a faster wireless connection than the existing 11g networks. With a data transfer rate of up to 300 Mbps*, which is 6 times faster than 11g, you can enjoy high-speed network connection and high-definition video streaming no matter where you are at home, and better yet, it also works with your existing 802.11b and 802.11g network.

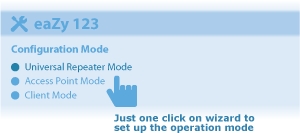

Easy to switch the operation mode
In order to provide simple setup procedure to user, WAP3205 eaZy123 is here for you. Just one click on wizard, you can easily switch the operations mode you want without any complicated configurations.
Green
Wireless scheduling
In order to save power and reduce wireless radiation when the wireless network is not in use , the WAP3205 can be configured to turn on or off automatically according to user's wireless usage patterns.
Wireless output management
With the wireless output controlling capability, the WAP3205 makes it easy to adjust the output power for whole-home wireless coverage according to actual needs. The feature eliminates unnecessary power consumption and reduces interference caused by neighboring access points within an area of high-density wireless deployment.
Specifications:
System Specifications
- 802.11b/g and 802.11n
- 5-in-1 modes, including Access Point, WLAN Client, WLAN Bridge, WDS Repeater, and Universal Repeater.
- Wireless Security: 64/128 bit WEP, WPA/WPA2
- Wi-Fi Protected Setup (WPS)
- MAC address filtering
- Channel auto selector
- IGMP snooping v1/v2
- Wi-Fi Multimedia (WMM) support
- Wireless scheduling
- Wireless output power management
- Remote management
- Diagnostic logs
- Guest WLAN support
Hardware Specifications
- LAN: Two 10/100Mbps Ethernet RJ-45 connectors with auto MDI/MDIX support
- LED indicator
- Two 2dBi external detachable antennas
- WPS button
- Reset button
- Power: DC 12V, 1A
- Power Comsumption: 5 watt max.
