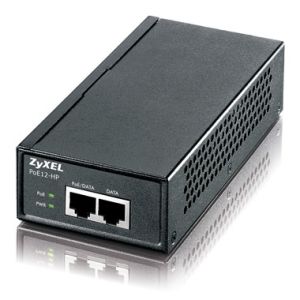

POE12-HP
802.3at PoE Injector
Introduction
The ZyXEL PoE12 Series is a PoE injector designed to support the increasing power demands of the latest-generation N wireless Access Points (APs) as well as the pan, tilt or zoom functions of IP surveillance cameras. The PoE12 Series consists of two models: PoE-12 and PoE12-HP. The PoE-12 and PoE12-HP are single-port PoE injectors that deliver both power and data to other PoE devices via a single CAT-5 Ethernet cable without extra power supply. The PoE-12 enables 100Mbps data transmissions and provides power up to 15.4W, while the PoE12-HP allows data transmitted at 1000Mbps and delivers power up to 30W.
Benefits
Empower Easy Power over Ethernet Connectivity
Industry standard compliance and investment protection
PoE is a standard-based technology that specifies how power is distributed along with data on standard Ethernet LAN cables. The standard specifies IEEE802.3af providing up to 15.4W of power per device and IEEE802.3at providing up to 30W per device. Complying with the IEEE 802.3af and IEEE802.3at standards, the ZyXEL PoE12 Series offers interoperability and compatibility with other standard-based PoE devices.
Trouble-free installation
With PoE technology, the PoE12 Series enables users to place devices such as wireless LAN access APs, IP surveillance cameras and IP phones exactly where they are needed. Since the devices are directly powered through Ethernet cables, there is no need to have separate power supplies or to have costly electrical engineers putting AC power sockets on ceilings or roof spaces.
Plug and Play ease of use
The PoE12 Series is easy to use and needs no configuration. Since only simple inbound and outbound cable plugs are required, the installation is very straightforward and can be performed by users having no electrical wiring experience without spending extra cost.
Specifications:
| Feature / Model |
PoE-12 |
PoE12-HP |
| Product Name |
802.3af PoE Injector |
802.3at PoE Injector |
| Product Picture |
 |
 |
| Ports |
| 10/100Base-T (Data)*1 |
1 |
- |
| 10/100Base-T (Power/Data)*2 |
1 |
- |
| 10/100/1000Base-T (Data)*1 |
- |
1 |
| 10/100/1000Base-T (Power/Data)*2 |
- |
1 |
| Standard Compliance |
| Ethernet |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-Tx Ethernet |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-Tx Ethernet
IEEE 802.3ab 1000Base-T |
| PoE |
IEEE 802.3af Power over Ethernet |
IEEE 802.3at Power over Ethernet |
| Certification |
| Safety |
EN 60950-1
EU RoHS Compliant |
EN 60950-1
CSA international
EU RoHS Compliant |
| Emission (EMC) |
FCC Part15 (Class B)
CE EMC (Class B) |
FCC Part15 (Class B)
CE EMC (Class B) |
| Power Requirement |
| Input voltage |
100 - 240V AC, 50/60Hz, 0.3A |
100 - 240V AC, 50/60Hz, 1.5A max |
| Power consumption (Watt) |
13.7 |
42.1 |
| Physical Specifications |
| Item dimensions (W x D x H) (mm/in.) |
117 x 60 x 35/4.61 x 2.36 x 1.38 |
155 x 74 x 36/6.10 x 2.91 x 1.42 |
| Item weight (g/lb.) |
177/0.26 |
396/0.87 |
| Packing dimensions (W x D x H) (mm/in.) |
201 x 133 x 54/7.91 x 5.24 x 2.13 |
202 x 155 x 69/7.95 x 6.10 x 2.72 |
| Packing weight (g/lb.) |
500/1.10 |
780/1.72 |
| Environmental Specifications |
| Operating temperature |
5C to 45C/41F to 113F |
0C to 50C/32F to 122F |
| Storage temperature |
-20C to 55C/-4F to 131F |
-40C to 70C/-40F to 158F |
| Operating humidity |
10% to 90% (Non-condensing) |
10% to 95% (Non-condensing) |
| Storage humidity |
5% to 95% (Non-condensing) |
5% to 95% (Non-condensing) |
