FSD-808P
8-Port 10/100Mbps PoE Fast Ethernet Switch
Overview
Centralized Power Distribution for Ethernet Networking
To fulfill the demand of sufficient PoE power for Fast Ethernet network applications, PLANET introduces a new member in the 802.3af PoE Switch family - FSD-808P, the 8-Port 10/100Mbps 802.3af PoE Switch. The FSD-808P supports 125 Watts PoE budget and 8-Port 802.3af PoE power injector function to drive 8 IEEE 802.3af compliant powered devices. The FSD-808P also provides a simple, cost-effective, and non-blocking wire-speed performance with 12-inch metal shape for desktop deployment in compact housing, SOHO office or department network applications.
Easy Network Construction by PoE Function
Providing 8 IEEE 802.3af PoE interfaces, the FSD-808P is ideal for small business and workgroups to deploy the PoE network for the wireless access points, IP-based surveillance camera or IP phones in any places easily and efficiently. The PoE in-line power following the IEEE 802.3af standard makes the FSD-808P able to power on 8 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire. With data and power over Ethernet from one unit, the FSD-808P shall reduce the need for extension cords and dedicated electrical outlets on the wall, ceiling or any unreachable place. In all, it lowers the installation costs and simplifies the deployment effort.

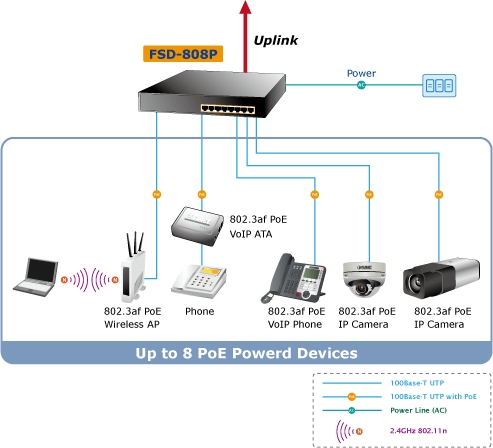

Application
Department / Workgroup PoE Switch
Providing 8-Port PoE in-line power interfaces, the FSD-808P can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. For instance, up to 8 PoE IP cameras can be installed around the corner in the company for surveillance demands or up to 8 PoE Wireless AP to build a wireless roaming environment in the office. Without the power-socket limitation, the Switch makes the installation of cameras or Wireless AP more easily and efficiently.
Key Features
RJ-45 Interface
- 8-Port 10/100Mbps Fast Ethernet ports
- 8-Port supports 48V DC power to PoE Powered Device
Power over Ethernet
- Complies with IEEE 802.3af Power over Ethernet Mid-Span PSE
- Up to 8 IEEE 802.3af devices powered
- Supports PoE Power up to 15.4 Watts for each PoE port
- Auto detect powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Switching
- Hardware based 10/100Mbps Auto-Negotiation and Auto MDI/MDI-X
- Flow control for Full Duplex operation and back pressure for Half Duplex operation
- Integrates address look-up engine, supporting 2K absolute MAC addresses
- Automatic address learning and address aging
Hardware
- 12-inch desktop size, 1U height
- LED indicators for PoE ready and PoE activity
- 1 silent FAN to provide stable and efficient power performance
Specifications:
| Hardware Specification |
| Network Connector |
8-Port RJ-45 for 10/100Base-TX |
| PoE Inject Port |
8-Port with 802.3af PoE injector function |

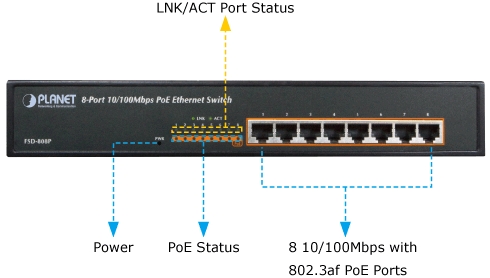

| LED Display |
System: Power (Green)
Per port : PoE (Green)
LNK/ACT (Green)
|
| Switch Architecture |
Store and Forward switch architecture |
| MAC Address |
2K MAC address table with Auto learning function |
| Switch Fabric |
1.6Gbps |
| Switch Throughput |
1.19Mpps@64Bytes |
| Power Requirement |
AC 100~240V, 50/60Hz, 1.5A max. |
| Power Consumption |
Max.135 Watts / 460 BTU |
| Dimension (W x D x H) |
280 x 180 x 43 mm |
| Weight |
1.65kg |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
Mid-Span |
| PoE Power Output |
Per Port 48V DC, 350mA . Max. 15.4 Watts |
| Power Pin Assignment |
4/5(-), 7/8(+)
|
| PoE Power Budget |
125 Watts |
| Standard Conformance |
| Regulation Compliance |
FCC Class B, CE |
| Standard Compliance |
IEEE 802.3 : Ethernet
IEEE 802.3u : Fast Ethernet
IEEE 802.3x : Flow Control
IEEE 802.3af : Power over Ethernet
|
| Environment |
| Operating Environment |
0 ~ 50 Degree C |
| Storage Environment |
-40 ~ 70 Degree C |
| Operating Humidity |
5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity |
5 ~ 95%, relative humidity, non-condensing |
