All stock codes associated to this product
FGSW2620, FGSW-2620
FGSW-2620
24-Port 10/100Mbps + 2-Port Gigabit Ethernet Switch
Overview
Power-Saving High Performance Ethernet Networking
In line with the energy-saving trend worldwide, PLANET delivers the new generation Green Networking Switch, FGSW-2620. The FGSW-2620 is a 24-Port 10/100Base-TX and 2-Port Gigabit Ethernet Switch upgraded from earlier version and brings both benefits of energy saving and high performance.
Energy Saving
The FGSW-2620 incorporates advanced Green Networking technology:
Intelligent scales power based on cable length
The intelligent scales power is an intelligent algorithm that actively determines the appropriate power level based on cable length. The FGSW-2620 would automatically detect the Ethernet cable length and adjust power usage. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving. The FGSW-2620 uses new engine that provides power saving up to 12% less energy but maintains high performance efficiently.
High Performance / Plug and Play
The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, 148,800pps in 100Mbps and 1,488,000pps in 1000Mbps) and dynamic shared memory buffer help the FGSW-2620 boost bandwidth. It also supports IEEE 802.1p Class of Service (CoS) features to improve network utilization more efficiently. The FGSW-2620 provides Auto-Negotiation capability and MDI / MDIX auto-detection for plug and play connection regardless of the cabling type being straight through or crossover.
Application

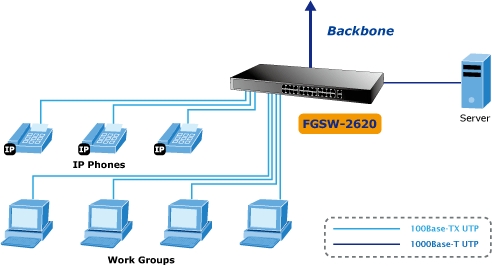

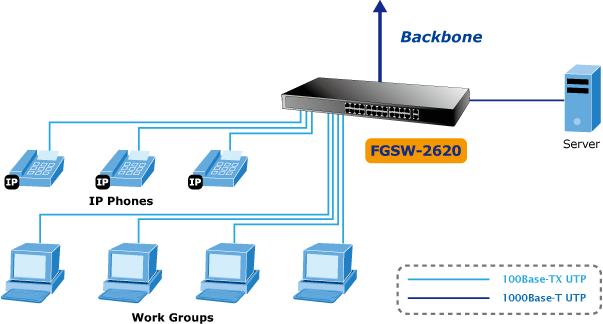

Backbone Switch
With up to 8.8Gbps switching fabric, the FGSW-2620 can provide high bandwidth connectivity to Fast Ethernet network backbone or as the backbone of your workgroup.

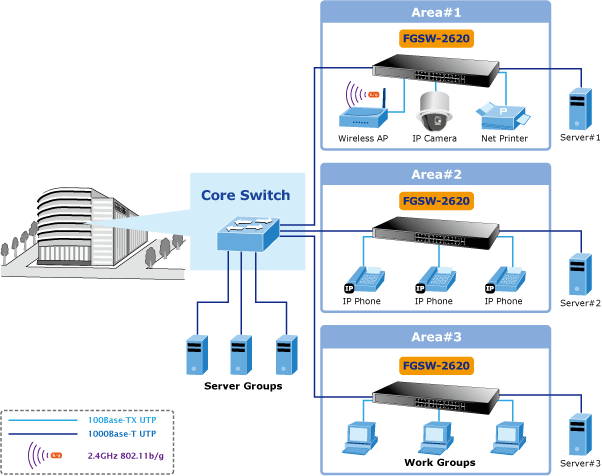

Department Switch
With its 8.8 Gigabits per second, non-blocking switch fabric, the FGSW-2620 can easily offer a local, high bandwidth Fast Ethernet network for your departmental backbone.
- Green Ethernet for energy saving
- 24-Port 10/100Base-TX and 2-Port 10/100/1000Base-T Gigabit Ethernet Switch
- Comply with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab, 10/100/1000Base-T standards
- IEEE 802.3x full-duplex/half-duplex back-pressure flow control
- IEEE 802.1p Class of Service traffic control
- Auto MDI / MDI-X on each port for easy switch / hub cascading
- 8K absolute MAC addresses table
- High performance Store and Forward architecture
- 19-inch rack mount size
Specifications:
| Hardware Specification |
| Hardware version |
4.0 |
| 10/100Base-TX MDI/MDIX Ports |
24 |
| 10/100/1000Base-T MDI/MDIX Ports |
2 |
| Throughput (packet per second) |
6.54Mpps |
| Switch fabric |
8.8Gbps |
| Weight |
2.40 kg |
| Power Consumption / Dissipation |
18.8 Watts / 64 BTU |
| Power Requirement |
100~240 VAC, 0.6A, 50-60 Hz |
| Dimension (W x D x H) |
440 x 180 x 44 mm, 1U height |
| Switch Processing Scheme |
Store-and-Forward |
| Address Table |
8K entries |
| Power Green Ethernet |
From 10m to 100m Saving up to 12% |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Temperature |
Operating: 0~50 Degree C
Storage: -10~70 Degree C
|
| Humidity |
Operating: 5 ~ 90%
Storage: 5 ~ 90% (Non-condensing) |
| Standards Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
IEEE 802.1p (Quality of Service) |
