CoolerMaster 620W Thunder M Series - ATX 12V v2.31, 140mm Fan, Modularized Cabling
  • 6x SATA, 4x PCI-E 6+2-Pin

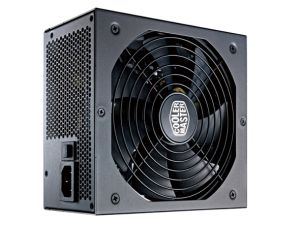

IMG 1 of 5
No Longer Available
Part Number:
217968
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS620-AMCBM3-AU
RS620AMCBM3AU
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RS620AMCBM3AU, RS620-AMCBM3-AU
Thunder M 620W

(RS-620-AMCB)

Introduction

The new release Thunder M series packs a powerful punch by delivering stable streams of power through single +12V outputs which will operate better and more efficient to your system. The modular cable design with the highly durable capacitors and multiple protection designs provide efficiency rating of 85%. Allowing to support system with high-end GPUs installed as well as reliable 3 year warranty service.

Features

  • Silent Operation140 mm Silent Fan for quieter operation

140 mm Silent Fan for quieter operation
  • Single 12V Power Rail
    Single 12 V Power Rail Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading up to 48A.
  • Modularized Cabling

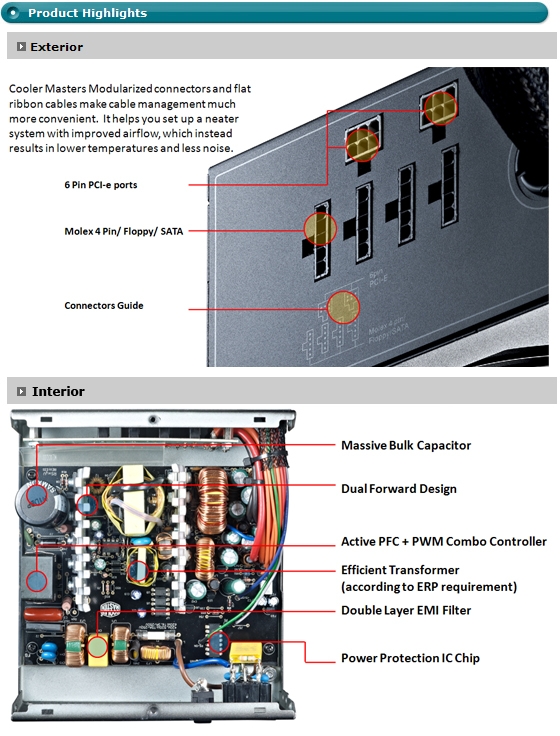

    Neatly arranged connectors on the rear plate connect to flat internal cabling improve installment facility while allowing for greater airflow through the PSU.
  • Intel Compliant
    Proficiently prepared to provide a stable power source and connectors for the latest ATX 12V v2.31 Intel processors.
  • Eco-friendly design: Erp Lot6 Ready!
    A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode
  • And More
  • Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
    Multiple Protection Design (OCP/OPP/OVP/OTP/SCP )
    High reliability with an MBTF of at least 100,000 hours of use.
    Three Year Warranty.
    •



    Specifications:

    Model RS-620-AMCB
    Type lntel ATX 12V V2.31
    Dimension (W x H x D) 150 x 160 x 86 mm (5.9 x 6.3 x 3.4 inch)

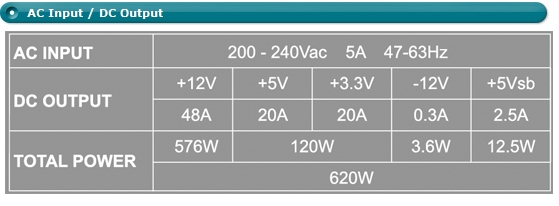

    Input Voltage 180~264Vac
    Input Current 5A@230Vac
    Input Frequency Range 47~63Hz
    PFC Active PFC
    Power Good Signal 100 ~ 500 ms
    Hold Up Time >16ms

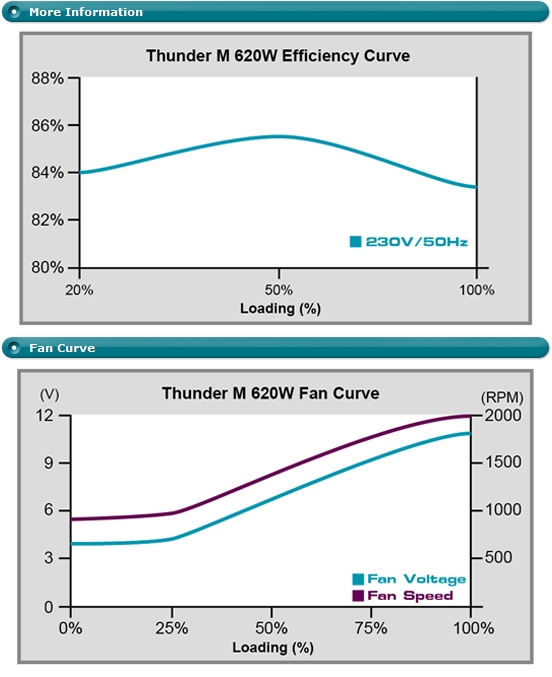

    Efficiency >85%@ Typical Load
    MTBF >100,000 Hours
    Protection OCP/OPP/OVP/OTP/SCP
    Operation Temperature 0~40C (Nominal Input Voltage)
    Regulatory CE / GOST / C-tick / KCC
    Fan 140mm Fan

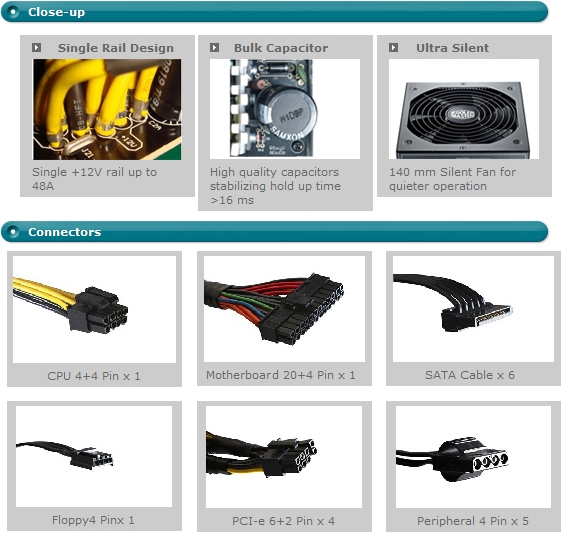

    Connector MB 20+4 Pin x 1
    CPU 4+4 Pin x 1
    PCI-e 6+2 Pin x 4
    SATA x 6
    Peripheral 4 Pin x 5
    Floppy 4 Pin x 1

    No additional files, specification sheets, guides or documentation found for product.

    Warranty: 1 Year Return to Base

    Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

    Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

    To apply for return of a product just go to our returns page.

    These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
