All stock codes associated to this product
WD1001FYYG, HDDWDDT01SSA
SAS Hard Drives

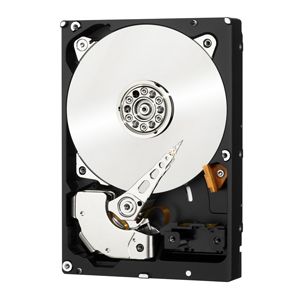

WD RE
Features
Interface: SAS 6 Gb/s
Capacity: 1 TB - 4 TB
Industrys highest capacity nearline drive.
WD RE SAS hard drives are available in capacities ranging from 1 TB to 4 TB to suit even the most demanding storage needs.
Dual port, full duplex connectivity.
Offers higher reliability, performance and data availability by eliminating single points of failure, designed for leading business-critical Enterprise topologies.
Environmentally conscious.
In addition to being RoHS compliant, WD RE is built with halogen-reduced components.
NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Dual stage actuator technology.
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy.
Highest performance for business-critical applications.
WD RE delivers 6 Gb/s transfer rates, sustained sequential data rates of up to 182 MB/s and high random I/O rates.
RAFF.
Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
RAID-specific, time-limited error recovery (TLER).
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
Ultra compatible.
An ultra-fast 6 Gb/s SAS interface enables easy integration into SAS storage subsystems while delivering twice the interface speed of traditional 3 Gb/s SAS nearline hard drives.
Designed for quality and reliability.
With a 1.4 million hour MTBF, this high performance drive delivers the highest level of reliability for 24x7 operation in up to 100% duty cycle applications.
The WD advantage.
WD puts our products through extensive Functional Integrity Testing (F.I.T) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.
Ideal for:
High-capacity data center storage, demanding high-performance computing, business-critical environments, storage area networks (SAN), network attached storage (NAS), direct attach storage (DAS), networked surveillance systems and cloud storage.
Surveillance Storage from WD.
Increasing security concerns have caused governments and businesses of all sizes to invest significantly in digital video surveillance systems. Created initially as a means of security for banks in the 1940s, video surveillance systems have evolved to become one of the most popular safety and security systems today.
Thanks to rapid advancement in technology, video surveillance systems have experienced exponential growth since their introduction. In recent years, video surveillance has undergone a shift from analog to digital format and away from primarily tape-based systems.
This transition has resulted in advancements in many complementary technologies. Whether it's software to aid in the recording and analysis of high resolution images, networking systems to more efficiently mirror and archive, or the emergence of technologies such as smart sensors and biometrics, today's surveillance systems demand the best performing and most reliable hard drives and solid state drives (SSD) available.
Storage designed for digital video surveillance.
Life in a desktop computer doesn't compare to the extreme environment in today's always-on, capacity-consuming digital video surveillance systems. What's needed is a drive that has been engineered to manage up to 10 simultaneous audio-video streams and welcomes the challenge of an environment that's running 24x7 while offering exceptional dollars-per-gigabyte value. That's why WD has designed a storage lineup of surveillance-based hard drives and SSDs perfect for digital video surveillance and its many unique environments and application sets.
High capacity enables higher resolution.
WD was the first to market with a 2 TB drive designed for surveillance. This ground-breaking capacity point enables surveillance systems with two or more cameras to record high levels of clarity (30 frames per second) at a broad range of resolution settings and still store 30 days or more of video footage. Using high-capacity surveillance drives will become even more important as HD becomes increasingly pervasive. High resolution video provides far greater detail when compared to standard low resolution video.
WD's surveillance drives enable digital video surveillance systems to deliver a comprehensive range of features and capabilities such as high resolution image quality, streaming video from multiple cameras, video archiving with ultra-fast data access and on-demand video playback.

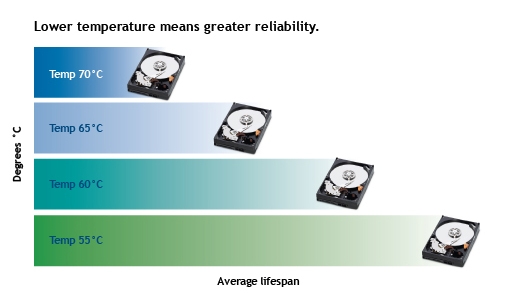

Lower temperature means greater reliability.
In addition to high levels of clarity, long-term reliability and low-power consumption are equally critical to surveillance systems. Designed for 24x7 operation, WD drives with WD GreenPower Technology™ consume less power during spin-up and operation, minimize heat dissipation and vibration, and operate reliably without compromising performance. Reducing heat, noise, and vibration enables surveillance applications to operate more reliably over longer periods of time.
The right drive for every surveillance application.
WD offers a full range of drives with the features and reliability the surveillance market demands.
WD AV-GP surveillance hard drives deliver smooth, continuous playback of up to 12 HD multimedia streams, perfect for mainstream surveillance for small businesses.
For RAID-based enterprise surveillance applications, WD RE hard drives deliver cool operation and enhanced reliability features.
WD AV-25 2.5-inch SATA hard drives are specially engineered to offer cool quiet operation while providing maximum 24x7 reliability perfect for small form-factor DVRs and digital video surveillance applications.
WD SiliconDrive A100 solid state drives are perfect for rugged mobile security and surveillance applications such as law enforcement, military or public transportation.
Specifications:
| Product Specifications |
|
 |
Interface |
SAS 6 Gb/s |
|
| Performance Specifications |
|
|
Rotational Speed |
7,200 RPM (nominal) |
|
Buffer Size |
32 MB |
|
Load/unload Cycles |
600,000 minimum |
|
| Transfer Rates |
|
Transfer Rate (Buffer To Disk) |
170 MB/s (Sustained) |
|
| Physical Specifications |
|
|
Capacity |
1 TB |
|
User Sectors Per Drive |
1,953,525,168 |
|
| Physical Dimensions |
|
| English |
|
Height |
1.028 Inches |
|
Depth |
5.787 Inches |
|
Width |
4.00 Inches |
|
Weight |
1.66 Pounds |
|
| Metric |
|
Height |
26.1 mm |
|
Depth |
147 mm |
|
Width |
101.6 mm |
|
Weight |
0.75 kg |
|
| Environmental Specifications |
|
| Shock |
|
Operating Shock (Read) |
65G, 2 ms |
|
Non-operating Shock |
300G, 2 ms |
|
| Acoustics |
|
Idle Mode |
31 dBA (average) |
|
Seek Mode 0 |
34 dBA (average) |
|
| Temperature (English) |
|
Operating |
41 F to 131 F |
|
Non-operating |
-40 F to 158 F |
|
| Temperature (Metric) |
|
Operating |
5 C to 55 C |
|
Non-operating |
-40 C to 70 C |
|
| Electrical Specifications |
|
| Current Requirements |
|
Power Dissipation |
|
Read/Write |
9.00 Watts |
|
Idle |
6.90 Watts |
