Day/Night Surveillance Camera
TL-SC3171
Highlights:
- Produces vivid video in the day and clear image at night
- 12 Infrared LEDs ensures 10 meters (32.8 feet) effective night vision range
- View the real time video anywhere from iPhone and other popular 3G phones
Overview
What This Product Does
TL-SC3171 IP surveillance camera is a versatile solution for your home & office monitoring. It watches your home, your kids, your workplace, whatever you care for most. After connecting directly to a local network using the camera's 54Mbps wireless or wired Ethernet connection, it can send live video to your home PC or through the internet to a Web browser or Smartphone, anywhere in the world!

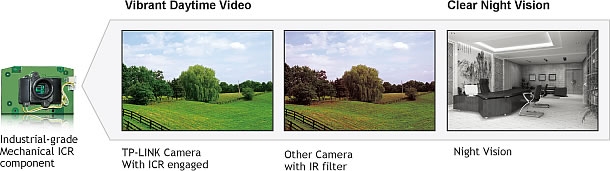

True Day / Night Surveillance
TL-SC3171 uses 12 IR (Infrared) LEDs light as a means to produce clear images in the dark and an industrial mechanical ICR (IR Cut-filter Removable) completely filters that light during the day ensuring vivid video as clear as you would see with the naked eye, both functions unavailable on traditional day/night cameras that resulted in poor image quality during both the day and the night.
16-channel Management Software
The surveillance software coming with the IP camera assists you manage multiple cameras at the same time. With it, video from 16 cameras can be displayed on one screen. You can archive streaming video and audio straight to your hard drive, playback video, and monitor up to 16 cameras on a single screen.
Dual Streaming
Unlike traditional IP Cameras operating at only MPEG-4 or MJPEG compression mode, TL-SC3171 can deliver MPEG-4 and MJPEG streams simultaneously ---- MJPEG produces lossless while bandwidth-consuming video and MPEG-4 produces efficiently compressed "small size" video. Now with TL-SC3171, you can just monitor local rooms with MJPEG stream and remote office with MPEG-4 stream, backing them all up to a server in MPEG-4 format.
Features:
- 1/4" progressive scan CMOS sensor produces clear and crisp images
- Mechanical IR-Cut filter Removable for true day/night surveillance
- 12 Infrared LEDs ensures 10 meters (32.8 feet) effective night vision range
- 2-way audio allows users to listen & talk remotely
- Digital input / output ports for external alarm & sensor
- MPEG-4/MJPEG dual streams for simultaneous remote recording and local surveillance
- 3GPP compliant enables live video surveillance from 3G phones
- Bundled management software accommodates up to 16 cameras at the same time
- SSL/HTTPS encryption protects your privacy from malicious intrusion
- Embedded Watchdog function automatically restarts the IP camera when errors are detected
- Motion triggered e-mail alerts to keep you updated on the situation on the ground
- Frame rate at 30fps in VGA resolution for smooth video
Specifications:
| CAMERA |
| Image Sensor |
1/4" Progressive scan CMOS sensor |
| Lens |
F: 2.0, f: 4.3mm |
| Viewing Angle |
Diagonal 61, Horizontal 48, Vertical 36 |
| Digital Zoom |
10x Digital |
| Day/Night Mechanism |
Mechanical IR-Cut filter Removable;
12 IR (Infrared) LEDs
|
| IR Working Distance |
10 meters (33 feet)
|
| Minimum Illumination |
0.5 Lux (0 Lux when IR On) |
| VIDEO/IMAGE |
| Video Compression |
Motion JPEG; MPEG- 4 |
| Frame Rate & Resolutions |
Up to 30(NTSC) / 25(PAL) fps at 640x480, 320x240, 160x120
|
| Video Streaming |
Simultaneous Motion JPEG and MPEG-4 (Dual streaming)
|
| Image Settings |
Rotation: Mirror, Flip, Mirror Flip
brightness, contrast, saturation, hue
Overlay capabilities:
time, date, text and privacy image
|
| AUDIO |
| Audio Communication |
Two-way (full duplex) |
| Audio Input |
Built-in microphone & External input connector |
| Audio Output |
Audio line output connector for external speaker
|
| ALARM AND EVENT MANAGEMENT |
| Events Trigger |
Built-in motion detection, schedule external alarm input |
| Notification Method |
E-mail, FTP, HTTP and external alarm out
|
| NETWORK |
| Standards and Protocols |
Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP,
DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP,UDP,
3GPP/ISMA RTSP
|
| Security |
Multiple user access levels with password protection, HTTPS encryption
|
| INTERFACES |
| Network Interface |
1 RJ- 45 for Ethernet 10/100 Base-T |
| Power Connector |
DC power jack
|
| Audio Output |
3.5 mm jack for Mic in
3.5 mm jack for Speaker out
|
| Button |
Reset push button
|
| SURVEILLANCE MANAGEMENT |
| Users |
5 simultaneous users
Unlimited number of users using multicast
|
| Bundled Management Software |
Viewing and recording up to 16 cameras |
| MINIMUM SYSTEM REQUIREMENTS |
| CPU |
Pentium4 1.8GHz (or equivalent AMD)
|
| Graphic Card |
64MB RAM graphic cards (or equivalent on-board graphic cards) |
| Memory |
512MB RAM |
| Supported Browser |
Internet Explorer; Firefox; Chrome; Safari |
| Supported OS |
Windows 98/ME/2000/2003/XP/Vista/7, Mac OS Leopard 10.5
|
| GENERAL |
| External Power Supply |
12VDC, MAX 12W |
| Certification |
CE, FCC, RoHS |
| Package Contents |
Day/Night Surveillance Camera TL-SC3171
Camera Stand
Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
|
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
| Dimensions( H X W X D ) |
5.4 x 3.0 x 1.9 in. (136 x 75 x 47 mm) |
