- Get a full game from a choice of five: Assassins Creed III, I Am Alive, R.U.S.E, Splinter Cell: Conviction, Rainbow Six Vegas 2
- TOP-selected 1137MHz core - 157MHz higher than reference for smoother gameplay.
- DirectCU II with precision-shaped SSU heatpipes utilizes highly-conductive copper and directly-centered GPU placement to double cooling efficiency in the same space.
- Acclaimed DIGI+ VRM with 6-phase Super Alloy Power technology delivers precise digital power and enhanced durability for stable overclocking and smooth gaming.
- GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface.
Overview
Go ultra on extra-cooled DirectCU graphics cards
ASUS Exclusive Innovation
Get a full game from a choice of five
Get a full Ubisoft game from a choice of five: Assassins Creed III, I Am Alive, R.U.S.E, Splinter Cell: Conviction, Rainbow Six Vegas 2

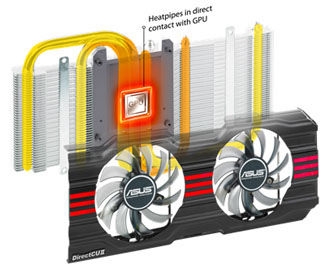

DirectCU II with SSU architecture
20% cooler, 3X quieter
ASUS graphics card engineering leads the industry once again with the introduction of DirectCU II SSU thermal design. Comprising two S and one U shapes, the new heatpipes are precision shaped for optimal efficiency and heat transference. They are also nickel-plated to minimize oxidization, with their mid-section now placed directly over the GPU die. This design shortens heat transfer travel to lower thermal resistance and create bi-directional flow for up to twice the cooling capacity in the same space as that required by existing graphics card cooler designs. High-conductivity copper used in heatpipe formulation creates tube-like vapor chambers, moving heat to a large aluminum heatsink that features extended fins for multiple points of dissipation. The assembly is further chilled by two high performance but carefully-tuned and sound-dampened fans for faster and quieter cooling.
DIGI+VRM with Super Alloy Power
30% less power noise and 2.5X greater durability
Acclaimed DIGI+ VRM has been applied via a power design that uses digital voltage regulators to minimize power noise by 30% and enhance power efficiency by 15%, widen the voltage modulation range, and improve overall stability and longevity by 2.5 times longer than reference.
GPU Tweak
Real-time intuitive graphics tuning
- Detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time and detailed multi-parameter info
- Automatically check and update drivers and BIOS versions
Gigantic 2GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution
Graphics GPU Features
 |
Powered by Geforce GTX 660
|
 |
NVIDIA GPU BoostPush the breathtaking performance of the GeForce GTX graphics cards to new levels with NVIDIA GPU Boost. This technology dynamically maximizes clock speeds to bring out the best performance in every game.
|
 |
NVIDIA Adaptive V-SyncGet more than just faster frame rates. Get ultra-smooth gaming every time with NVIDIA gaming innovations - Adaptive Vertical Sync. This technology dynamically adjusts Vsync to current frame rates for maximum playability.
|
 |
NVIDIA PhysX readyPlay games with advanced effects such as blazing explosions and lifelike characters with 10X faster switching between graphics and physics processing, enabling more complex effects to be rendered in real time.
|
 |
SLI SupportMulti-GPU technology for extreme performance
|

|
NVIDIA 3D Vision Surround ReadyTransform hunreds of PC games into stereoscopic 3D and enjoy immersive full HD 3D gaming across three displays at an incredible 5760x1080 resolution.
|
 |
PCI Express 3.0Delivers double the bandwidth per lane of PCIe 2.0 for faster GPU-CPU communication.
|
 |
Microsoft DirectX 11.1 API (feature level 11_0)Brings new levels of visual realism to gaming on the PC and get top-notch performance
|

Specifications
| Graphics Engine |
NVIDIA GeForce GTX 660 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 2GB |
| Engine Clock |
GPU Boost Clock : 1137 MHz GPU Base Clock : 1072 MHz |
| CUDA Core |
960 |
| Memory Clock |
6108 MHz ( 1527 MHz GDDR5 ) |
| Memory Interface |
192-bit |
| Resolution |
DVI Max Resolution : 2560x1600 |

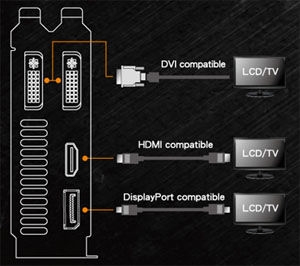

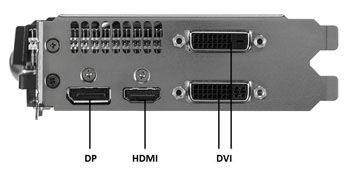

| Interface |
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output : Yes x 1 Display Port : Yes x 1 (Regular DP) HDCP Support : Yes |
| Power Consumption |
up to 150W1 additional 6 pin PCIe power required |
| Accessories |
1 x DVI to D-Sub adaptor 1 x Power cable |
| Software |
ASUS GPU Tweak & Driver |
| ASUS Features |
DirectCU Series TOP Series Super Alloy Power |
| Dimensions |
10.2 " x 5.2 " x 1.5 " Inch |
| Note |
To have the best cooling performance, ASUS GTX660-DC2TG-2GD5 extends the fansink to 2 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system! Note that actual boost clock will vary depending on actual system conditions. For more information, please visit https://www.geforce.com/ |
