Urban S41 mainstream mid-tower, categorized in Thermaltake latest chassis collection Urban Series. The entire series has a simple and elegant aesthetic, design for users who looks for everything but a flamboyantly appearance.

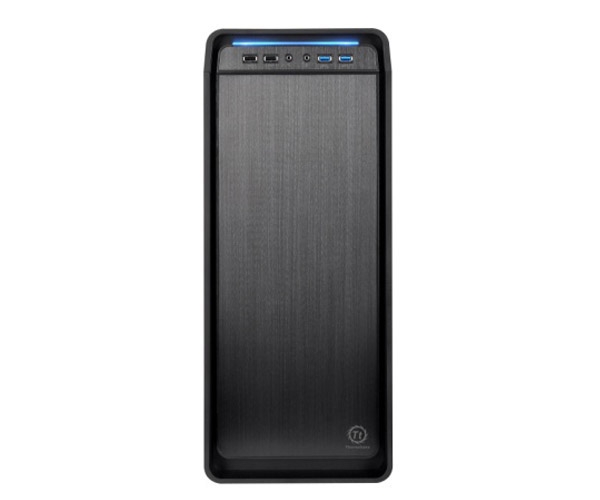

Built with brushed aluminum finish front door panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet sophisticate aesthetic.

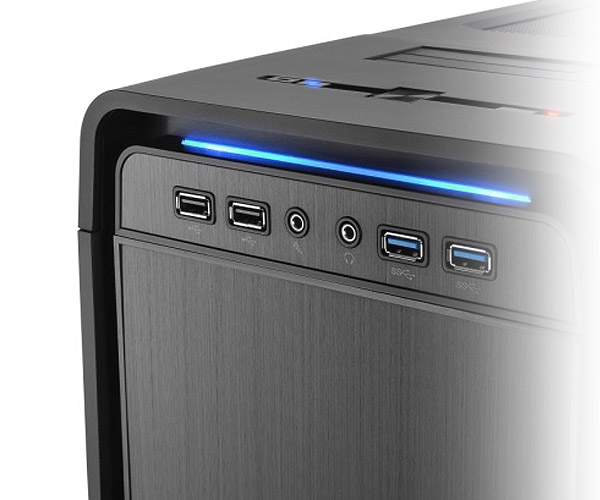

Handy I/O ports
The front-top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports along with two USB 2.0 ports, a HD microphone and headset jacks, to grand direct access when needed.

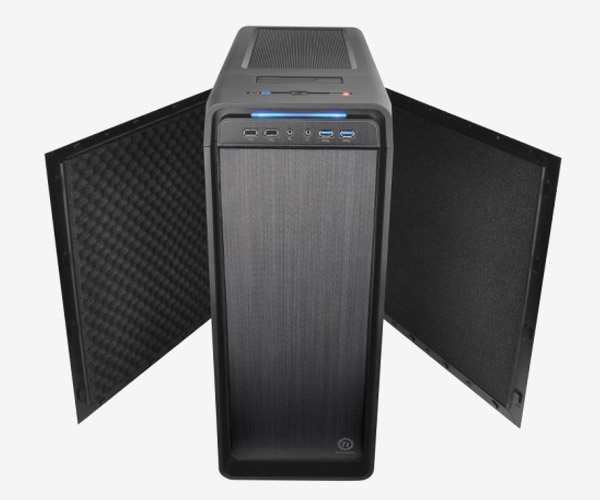

Extreme silent performance
The preinstalled sound-damping foams for extreme silence purpose on both side panels of Urban S41 reduce noise and acoustic levels within the chassis.

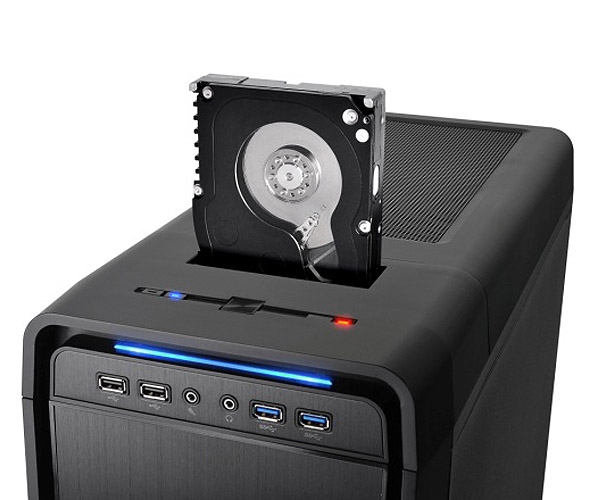

Easy Hot Swap
Top-mounted 2.5” or 3.5”HDD Docking Station enables blazing fast file transfer and effortless hot-swap drive replacement design for easy setup or removal of HDD.
Advanced Ventilation

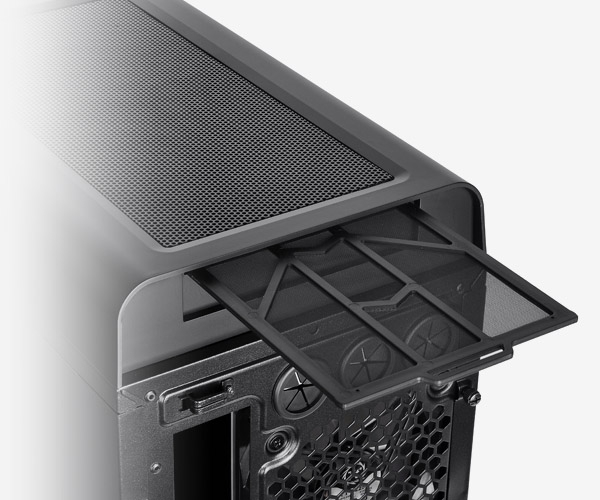

Preinstalled two of 120mm fans and a top-mounted 200mm fan including a back blue LED fan to optimize system ventilation. In order to keep the interior dust free, all intake ventilation holes come with dust protection including a removable dust filter at the bottom of the chassis.

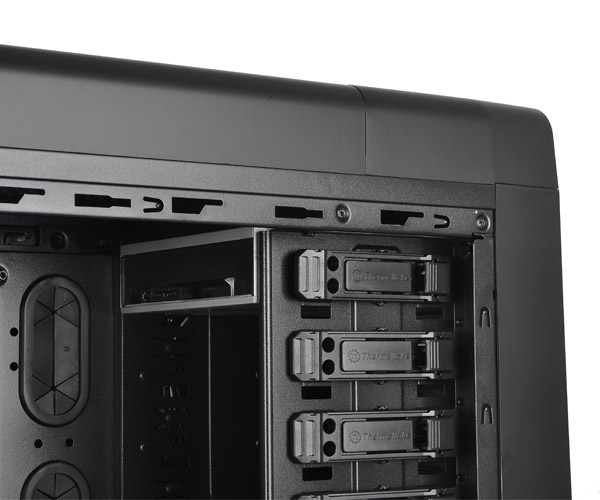

Innovative tool-less design
The latest tool-less innovation with 5.25 & 3.5 tool-free drive bay design minimized the hassles of installing ODD and HDD devices.

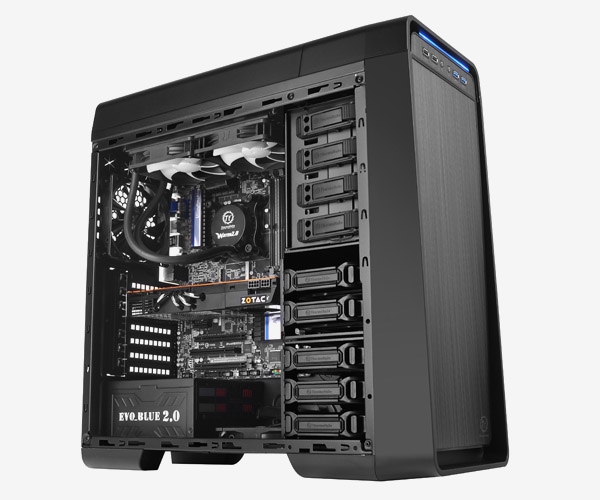

High-end Complete System on the go
Enables user to build up a complete high-end solution with ease with 240mm radiator liquid cooling system and extra long graphic card supported to protect users hardware and increase CPUs overclocking potential, mostly importantly delivers outstanding cooling efficiency in the entire case.
Specifications:
| P/N |
VP600M1N2N |
| Case Type |
Mid Tower |
| Dimension (H x W x D) |
516 x 220 x 520 mm (20.3 x 8.7 x 20.5 inch) |
| Net Weight |
8.9Kg / 19.6 lb |
| Side Panel |
No Window |
| Color |
Exterior & Interior : Black |
| Material |
SECC |
| Cooling System |
Front (intake) : 120 x 120 x 25 mm Turbo fan (800~1000rpm,14~16dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Top (exhaust) : 200 x 200 x 30 mm fan (600~800rpm, 13~15dBA) Bottom (intake) : (Optional) 120 x 120 x 25 mm fan |
| Drive Bays |
- Accessible : 4 x 5.25, 1 x 3.5 (Converted from one 5.25 drive bay)
-Hidden : 5 x 3.5 or 2.5
-Docking : 1 x 3.5 or 1 x 2.5
|
| Expansion Slots |
7 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
| I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU (Optional) |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Other |
CPU cooler height limitation: 160mm VGA length limitation: 315mm(with HDD rack) 435mm(without HDD rack) |
