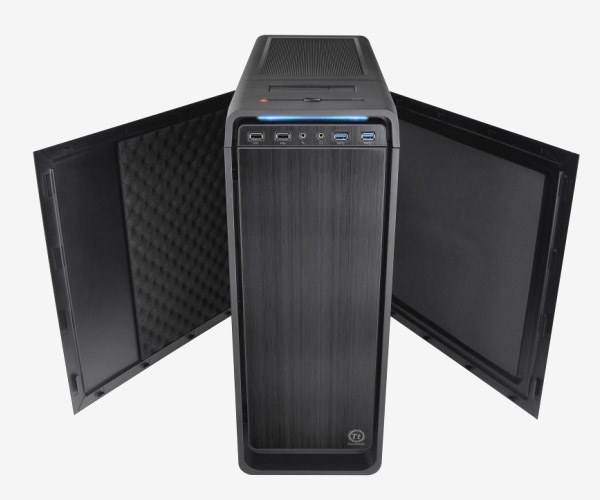

The preinstalled sound-damping foams for extreme silence purpose on both side panels of Urban S31 reduce noise and acoustic levels within the chassis.

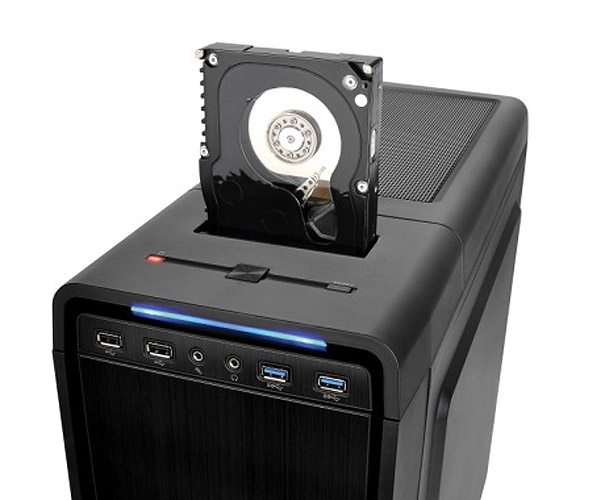

Easy Hot Swap
Top-mounted 2.5 or 3.5HDD Docking Station enables blazing fast file transfer and effortless hot-swap drive replacement design for easy setup or removal of optical drives and HDD.

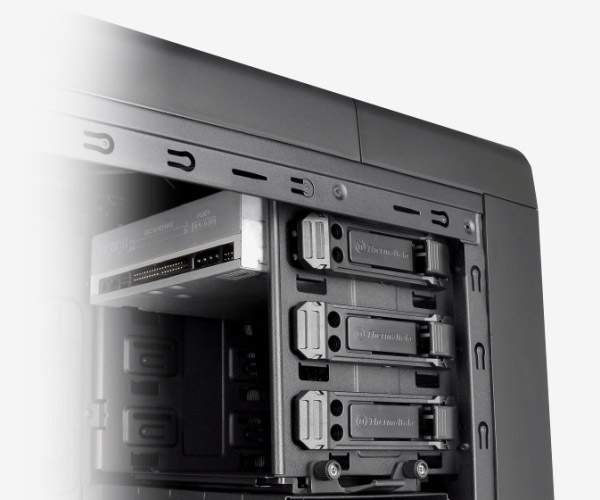

Innovative tool-less design
The latest tool-less innovation with 5.25 & 3.5 tool-free drive bay design minimized the hassles of installing ODD and HDD devices.

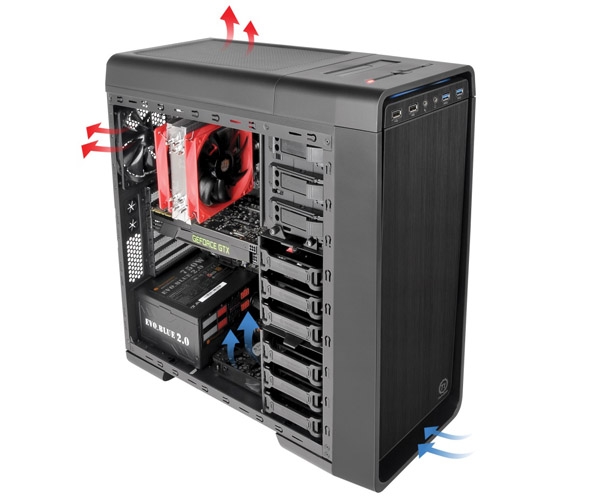

Advanced Ventilation
Two preinstalled 120mm fans to optimize system ventilation in Urban S31. Plus pre-mounted hole for more ventilation options, users still can build up system ventilation by their preference.

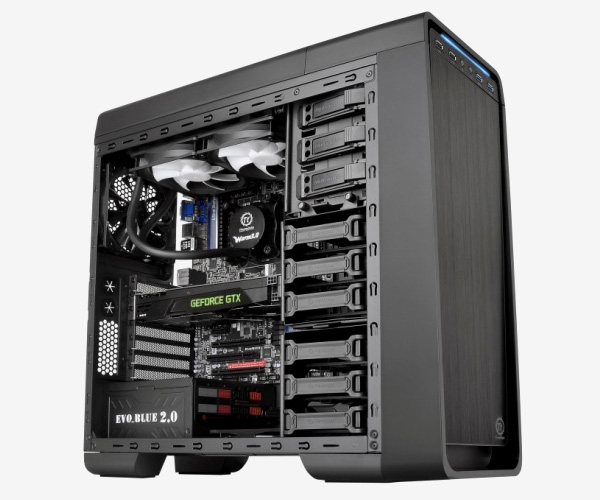

High-end Complete System on the go
Enables user to build up a complete high-end solution with ease with 240mm radiator liquid cooling system and extra long graphic card supported to protect user’s hardware and increase CPU’s overclocking potential, mostly importantly delivers outstanding cooling efficiency in the entire case.
Specifications:
Model |
VP700M1N2N |
Case Type |
Mid Tower |
Dimension (H x W x D) |
500x 206 x 520 mm (19.7 x 8.1 x 20.5 inch)
|
Net Weight |
7.3Kg / 16.1 lb |
Side Panel |
No Window |
Color |
Exterior & Interior : Black |
Material |
SECC |
Cooling System |
Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) 120 x 120 x 25 mm fan (Optional) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Top (exhaust) : (Optional) 120 x 120 x 25 mm fan x 2 or 140 x 140 x 25 mm fan Bottom (intake) : (Optional) 120 x 120 x 25 mm fan
|
Drive Bays |
- Accessible : 3 x 5.25, 1 x 3.5 (Converted from one 5.25 drive bay) - Hidden : 6 x 3.5 or 2.5 - Docking : 1 x 3.5 or 1 x 2.5
|
Expansion Slots |
7 |
Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |

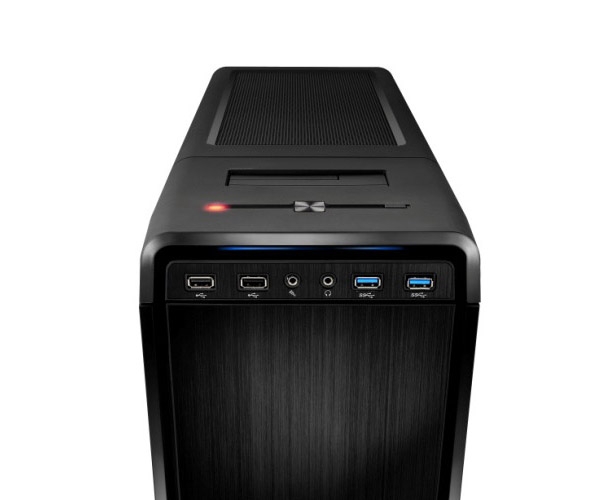

I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
PSU |
Standard PS2 PSU (Optional) |
LCS Upgradable |
Supports 1/23/81/4 water tube |
Other |
CPU cooler height limitation: 155mm VGA length limitation: 290mm(with HDD rack) 410mm(without HDD rack) |
