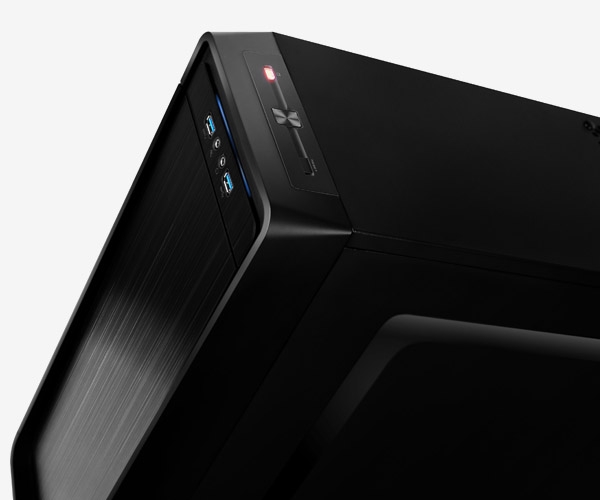

Using metal brushed front door panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet elegant aesthetic.

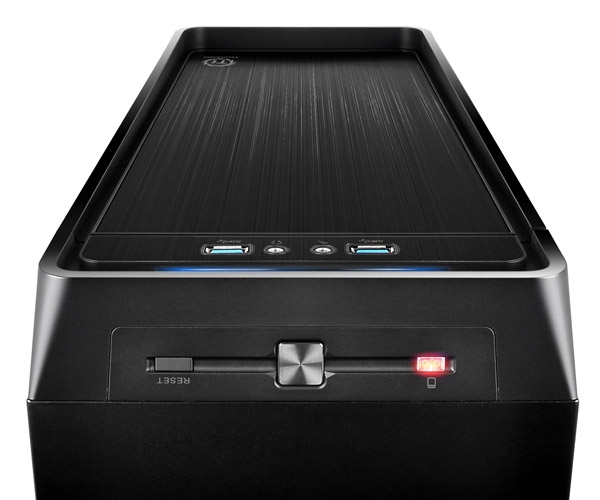

Handy I/O ports
The Front-top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports, a HD microphone and headset jacks, to grand direct access when needed.

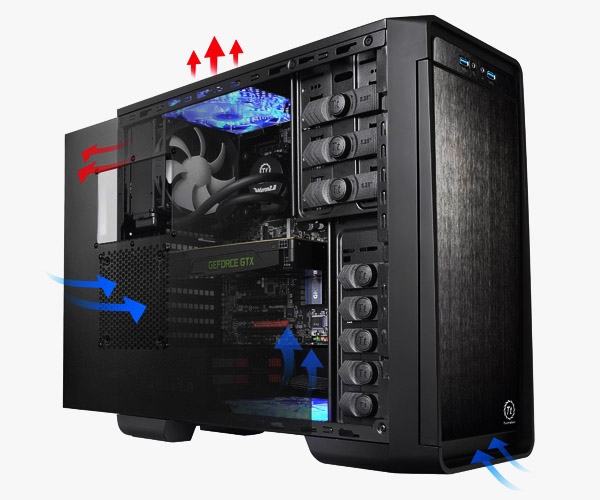

Ventilation Optimize
Preinstalled two 120mm fans to optimize system ventilation. Plus pre-mounted hole for more ventilation options

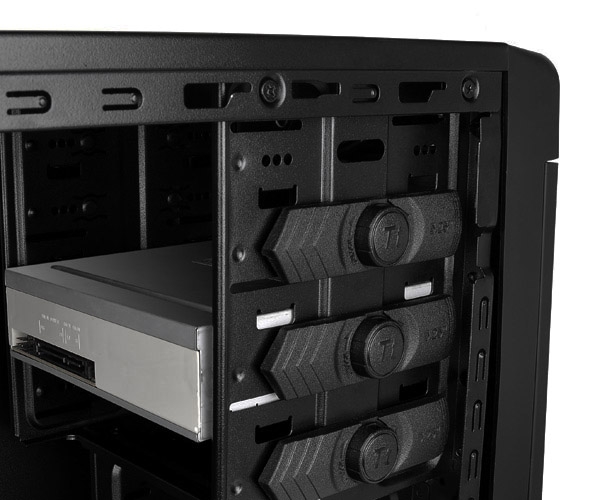

Tool-free Innovation
Innovative 5.25” & 3.5” tool-free drive bay design minumized the hassels of installing ODD and HDD devices.

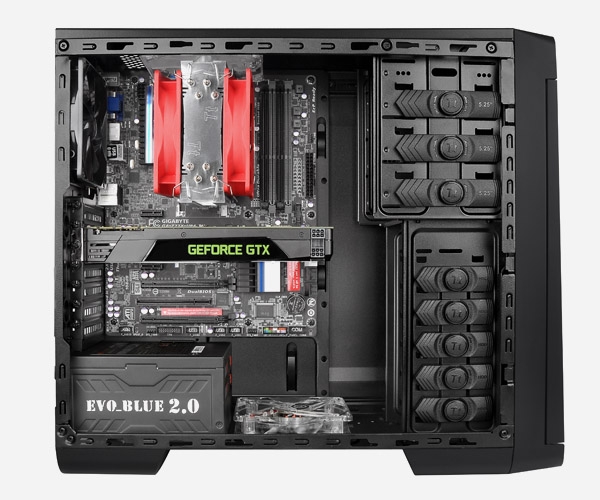

Convenient Support
Pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation, extra long graphic card also supported as well as rubber grommeted holes for Advanced Cable Management and Liquid Cooling System.
Specifications:
Case Type |
Mid Tower |
Dimension |
438 x 185 x 497 mm (17.2 x 7.3 x 19.6 inch)
|
Side Panel |
Transparent Window |
Color |
Exterior & Interior : Black |
Cooling System |
Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Top (exhaust) :(optional) 120 x 120 x 25 mm Side (intake) : (optional) 120 x 120 x 25 mm Bottom (intake) : (optional) 120 x 120 x 25 mm
|
Material |
SECC |
Drive Bays |
- Accessible : 3 x 5.25, 1 x 3.5 - Hidden : 5 x 3.5 , 2.5
|
Expansion Slots |
7 |
Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
I/O Ports |
USB 3.0 x 2, HD Audio x 1 |
PSU |
Standard PS2 PSU (optional) |
LCS Upgradable |
Supports 1/23/81/4 water tube |
Other |
CPU cooler height limitation: 155mm VGA length limitation: 320mm |
